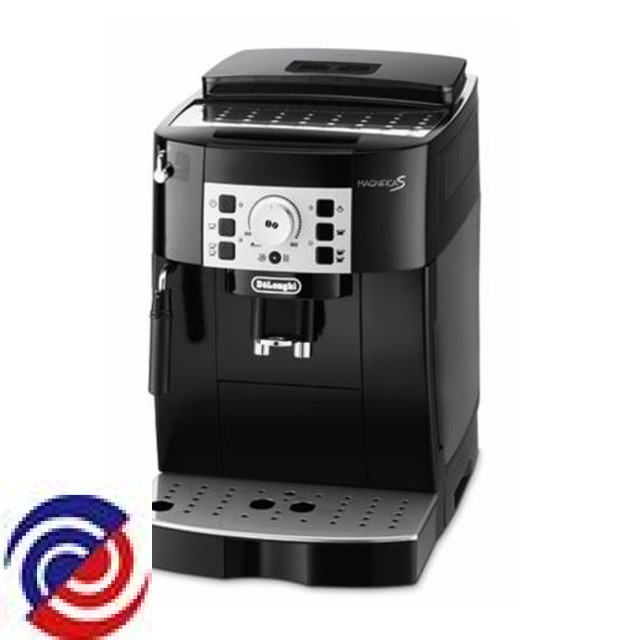

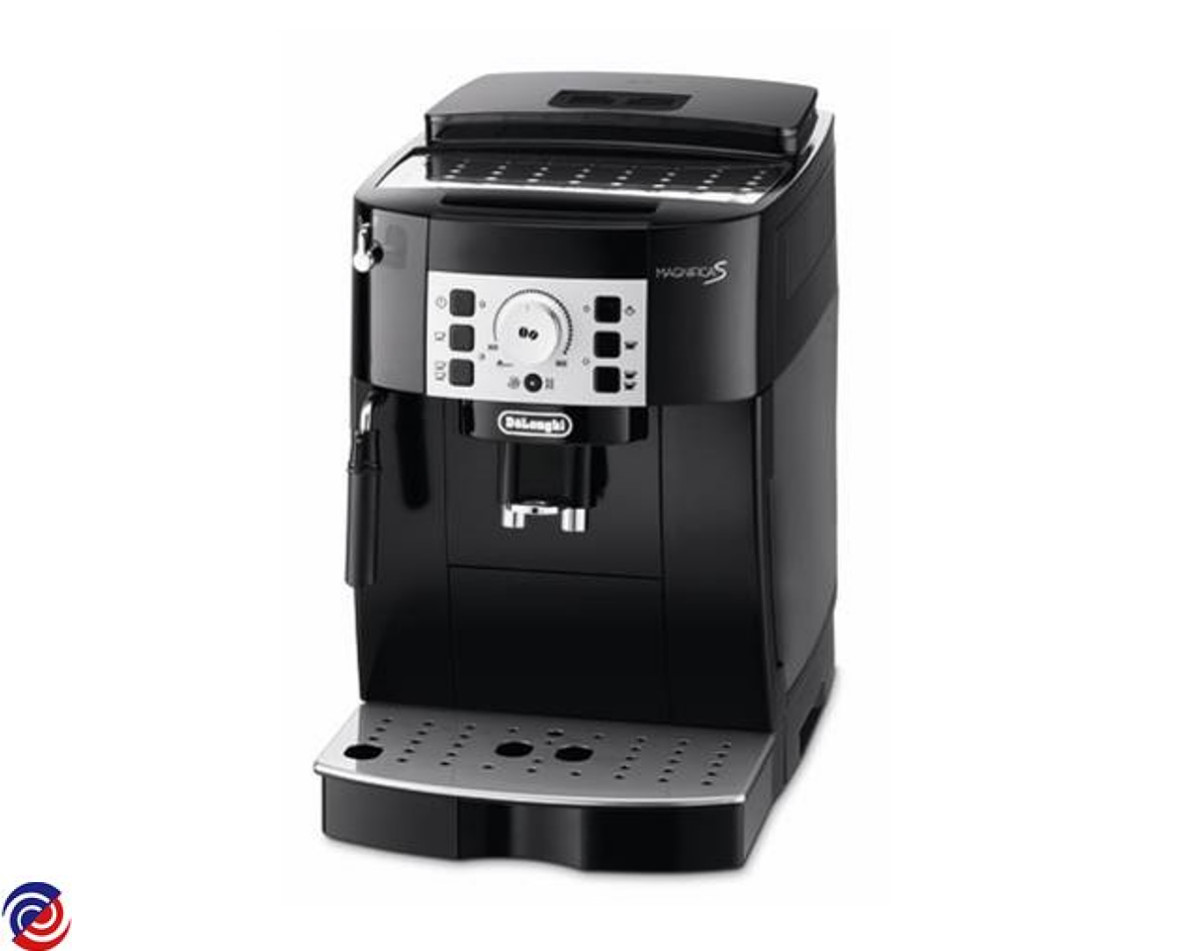

ECAM22.110.B S11 — 0132213175
DELONGHI — Coffee Machine
Parts for ECAM22.110.B S11
W0276917 GROUND COFFEE TANK COVER
$11.90
W0276918 COFFEE BEANS COVER
$26.00
W0276920 LEFT SIDE
$17.10
W0276921 GRIND REGULATION KNOB
$19.90
W0276924 SWITCH HOLDER
$22.80
W0276925 SWITCH
$24.30
W0276928 DRAIN TRAY
$12.50
W0276930 RIGHT SIDE
$15.60
W0276934 FLOAT
$26.60
W0276936 DISPLAY GLASS
$17.70
W0276938 DISPLAY BOARD
$27.10
W0276940 O-RING (D=6.75 T=1.78)
$11.70
W0276941 FROTHER STOP
$11.70
W0276942 MICROSWITCH (250V 85°)
$26.00
W0276944 O-RING (D=9.25 T=1.78)
$12.40
W0276945 O-RING (D=6.07 T=1.78)
$8.59
W0276946 LOWER TUBE
$13.00
W0276948 STEAM KNOB
$16.00
W0276949 COFFEE OUTLET TANK COVER
$12.20
W0276950 COFFEE OUTLET TANK
$12.30
W0276951 SPRING
$12.20
W0276952 REGULATOR
$12.20
W0276954 DISPENSER COVER
$12.30
W0276956 DISPENSER HANDLE
$12.30
W0276958 SCREW (3.5X12)
$11.70
W0276964 DELONGHI COFFEE INFUSER BREW UNIT
$49.00
W0276965 EXPULSION LEVER
$12.20
W0276966 SPRING
$12.20
W0276971 SPRING
$12.00
W0276974 TROLLEY SLEWING RING
$12.70
W0276975 TROLLEY
$34.30
W0276976 COMPENSATION SYSTEM
$34.50
W0276977 PROTECTIVE RUBBER GASKET
$12.20
W0276980 MICROSWITCH
$25.40
W0276982 HALL SENSOR (L620)
$16.10
W0276984 RIGHT ANGLE WATER OUTLET TUBE
$12.90
W0276985 BLACK FILTER
$12.20
W0276986 DELONGHI COFFEE MACHINE VALVE
$56.50
W0276987 TUBE (L145)
$12.20
W0276988 TUBE (DI=3 DE=6 L200)
$12.20
W0276989 SILICONE HOSE (DI=4 DE=8 L=150)
$12.20
W0276991 TUBE WITH 2 BUSHES (L97)
$12.60
W0276993 TUBE WITH 2 BUSHES (L270)
$23.30
W0276994 TUBE WITH 2 BUSHES (L290)
$23.60
W0276995 O-RING (D=3.85 T=2)
$12.20
W0276996 SPRING
$11.90
W0276998 MICROSWITCH
$25.10
W0276999 PUMP PROTECTOR
$24.80
W0277000 PUMP (ULKA 230V 48W)
$36.00
W0277006 ROUND GENERATOR (230V 1400W F6.3)
W0277007 CAM SLIDER
$12.90
W0277008 SPACER
$12.20
W0277010 CLIP (WIRE 1,2 AISI302)
$12.10
W0277011 SAFETY VALVE
$15.20
W0277012 CONNECTOR
$12.00
W0277014 SCRAPER BRUSH WITH BRISTLES
$12.80
W0277083 TOOTHED BELT
$14.00
W0277100 FILTER (D.40X2.3 TAI-FENG)
$21.50
W0277132 GENERATOR GASKET
$11.70
W0277142 GRINDER FINGER STOP RING
$12.90
W0277756 RUBBER PAD
$12.90
W0277826 TUBE WITH 2 BUSHES (L230)
W0278209 MOTOR ASSEMBLY (CHIAPHUA 230V)
$39.90
W0315451 GASKET
$4.50

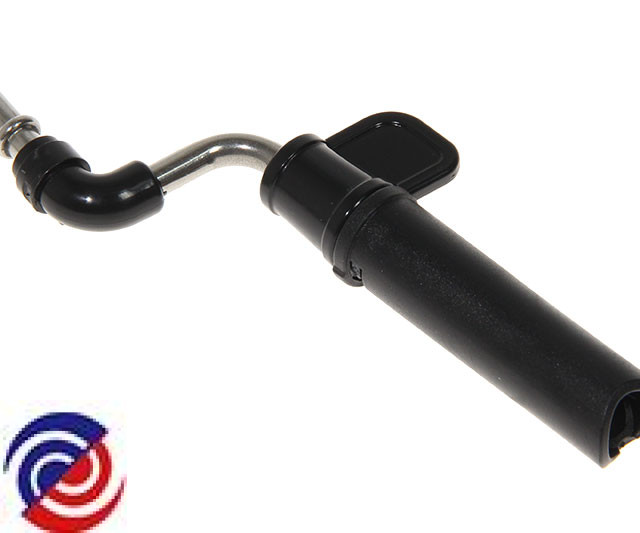

W0325423 TUBE WITH FROTHER
$21.60
W0362536 DELONGHI TANK
$32.00
W0368799 STEAM VALVE ASSEMBLY
$24.00
W0371338 COFFEE GROUNDS CONTAINER
$20.00
W0276923 REAR PANEL
$18.20
W0276967 EXPULSION LEVER RUBBER PAD
W0277002 PUMP SUPPORT
W0278093 POWER SUPPLY CORD WITH PLUG (AU)
W0312968 SENSOR NTC
W0313168 REED SENSOR (L520)
$15.60
W0313205 MOTOR BOARD (CHIAPHUA 230V)
$18.90
W0315025 FRONT PIECE
$12.60
W0315088 FROTHER EXTERNAL TUBE
W0315193 FROTHER GASKET
$11.60
W0315638 COVER
$13.50
W0315931 FRONT PIECE
$14.20
W0319963 FLOW REGULATOR
$17.00
W0319979 TANK
$16.80
W0323111 CUP PLATE
$18.48
W0325452 CONTROL PANEL ASSEMBLY WITHOUT BOARD
$43.10
W0325472 CONTROL PANEL ASSEMBLY
$24.90
W0325931 TRANSMISSION (CHIAPHUA 230V)
$80.10
W0365455 GRINDER ASSY
$72.50
