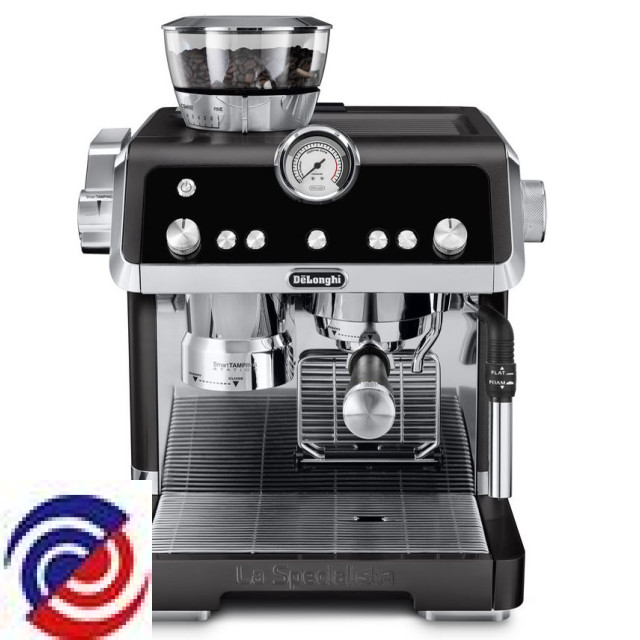

EC9335.BK — 0132126007
DELONGHI — Coffee Machine
Parts for EC9335.BK
W0276925 SWITCH
$24.30
W0276942 MICROSWITCH (250V 85°)
$26.00
W0276958 SCREW (3.5X12)
$11.70
W0276980 MICROSWITCH
$27.00
W0276995 O-RING (D=3.85 T=2)
$12.00
W0276996 SPRING
$12.00
W0276997 FLOWMETER
W0276998 MICROSWITCH
$25.10
W0277078 DELONGHI COFFEE MACHINE GASKET
$12.00
W0277091 CONNECTOR
$28.00
W0277104 PUMP (ARS 220-240V 70W)
W0277114 TUBE WITH 2 BUSHES (L150)
$13.30
W0277124 FIXING BRACKET (NTC)
$11.70
W0277128 RIGHT ANGLE CONNECTION
$14.00
W0277129 SOLENOID VALVE (3VA 230V)
$27.02
W0277132 GENERATOR GASKET
$11.70
W0277196 MICROSWITCH
$13.00
W0277200 BALL JOINT
$12.90
W0277214 VALVE
$6.60
W0277215 RING
$11.90
W0277216 GASKET
$13.50
W0277219 BOTTOM GASKET
W0277222 CONNECTORS GASKET
$12.90
W0277228 GENERATOR (5X05 230V1300W PLAS.CONNEC.)
W0277229 CLIP
$12.00
W0277230 FIXING BRACKET (NTC)
W0277233 FIXING BRACKET (TCO)
W0277236 TUBE WITH 1 BUSH (L135)
$13.20
W0277238 SPRING
$12.80
W0277882 SOLENOID VALVE (2VA 230V)
$29.00
W0295785 Genuine DeLonghi Descaler Cleaner Espresso Coffee Machine in 500ml - EcoDecalk
$37.00
W0313050 TCO (15A 318°)
$16.00
W0313267 COFFEE BEANS SENSOR
$24.00
W0315180 GASKET
$11.95
W0315428 WATER TANK FILTER
$12.90
W0315746 L CONNECTION
$14.00
W0315762 FLOWMETER-PUMP TUBE
$15.00
W0315764 RIGHT RUBBER PAD
$12.90
W0315775 TUBE
$12.90
.jpg)
W0315806 PEG
$12.90
W0315807 GASKET
$16.50
W0319572 DELONGHI COFFEE MACHINE FROTHER NOZZLE
$18.50
W0319574 DELONGHI UPPER GRINDER BURR
W0319584 SUPPORT
$17.00
W0319963 FLOW REGULATOR
$19.00
W0319972 STEAM TUBE KIT
$20.50
W0320022 GRINDER ASSEMBLY
$99.35
W0320025 PIPE CLEANER
$15.00
.jpg)
W0320026 DELONGHI COFFEE MACHINE FILTER HANDLE
$66.00
.jpg)
W0320112 DELONGHI LARGE 2 CUP FILTER
W0320113 BEANS CONTAINER
W0320121 STEAM KNOB
$19.00
W0320122 WATER OUTLET TUBE
$24.10
W0320123 DRIP TRAY
$16.80
W0320124 SMALL 1-CUP FILTER
W0323107 DIFFUSER
$14.00
W0326341 SAFETY VALVE
$27.50
W0326342 FRONT PANEL
$31.80
W0311496 POWER SUPPLY CORD WITH PLUG (AU)
$16.10
W0311754 WIRING ASSEMBLY
$14.00
W0311755 WIRING ASSEMBLY (400 MM)
$14.50
W0311756 WIRING ASSEMBLY (450 MM)
$14.60
W0311757 REED SENSOR
$16.60
W0311758 REED SENSOR
$16.40
W0311759 TCO WIRING
$14.60
W0311760 TCO WIRING
$14.60
W0311761 NTC WIRING
$38.00
W0311768 TCO
$17.60
W0312181 PUMP
$44.60
W0313265 ELECTRONIC PCB
$25.50
W0313266 CONTROL PCB
$38.80
W0313281 POWER BOARD
W0314993 A T CONNECTION (PRES BLOCK)
W0315060 TUBE (L170)
$12.80
W0315212 RUBBER FOOT PAD
W0315299 VAPORIZER CONNECTOR CLIP
$12.90
W0315314 O-RING
$12.90
W0315339 O-RING
$12.80
W0315340 RIGHT ANGLE CONNECTION
W0315386 L CONNECTION
$14.00
W0315625 RING
$12.90
W0315636 COVER
$12.80
W0315735 CONNECTION
$13.66
W0315736 FILTER
$12.90
W0315741 REAR PANEL
$13.40
W0315742 REAR PANEL
$19.40
W0315743 FLOAT
W0315744 GEAR
$20.70
W0315745 COVER
$15.50
W0315747 SUPPORT
$12.90
W0315748 KEY
$13.10
W0315749 TOUCHE ON-OFF
$13.20
W0315750 TEMPLATE
$14.70
W0315754 MICROSWITCH SUPPORT
$12.90
W0315755 POD SUPPORT
$14.10
W0315756 SOLENOID VALVE SUPPORT
$13.60
W0315757 CONNECTOR
$12.90
W0315758 FOOT
$14.90
W0315759 CONNECTOR
$12.90
W0315760 SOLENOID VALVE SUPPORT
$14.40
W0315761 GASKET
$14.60
W0315763 GASKET
$18.70
W0315765 LEFT RUBBER PAD
$12.90
W0315766 SUPPORT
$12.90
W0315767 DRAIN HOSE
$14.00
W0315773 CAM
$12.90
W0315774 ACTUATOR
$12.90
W0315805 SUPPORT
$12.90
W0315813 SUPPORT
$12.90
W0315844 COFFEE OUTLET
$13.60
W0315913 GASKET
$12.90
W0315914 FLANGE
$12.90
W0315915 BREWING GASKET SUPPORT
$15.00
W0315937 ACTUATOR
$12.90
W0315938 MICROSWITCH SUPPORT
$12.90
W0315996 TUBE (SIL PLAT 3X6.5 L.280MM)
$12.90
W0315997 FABRIC-COATED SILICONE HOSE (DI=5 DE=9 L=270)
$14.90
W0317725 SILICONE HOSE (DI=4 L=480)
W0319571 PRESSURE GAUGE
$32.80
W0319578 CONTROL PANEL
$56.80
W0319579 COVER ASSEMBLY
$47.70
W0319580 DRIP TRAY
$25.50
W0319730 VAPORIZER (1070W 230V)
$29.20
W0320073 COVER ASSEMBLY
$15.30
W0320117 STAINLESS STEEL TEMPLATE
$17.80
W0320118 TAMPER
$17.80
W0320119 TUBE (PTFE DI2-DE4 L=215)
$14.60
W0320120 EXPANSION CHAMBER
$14.50
W0320125 FEED CHUTE EXTENSION
$70.10
W0320127 COVER
$22.80
W0320128 LEVER ASSEMBLY
$41.60
W0320130 COVER
$26.00
W0320132 TANK
$34.90
W0320133 TANK COVER
$24.70
W0320574 TUBE / 2 BUSHES (PTFE DI2-DE4 L=115)
$24.20
W0323103 CUP HOLDER
$24.70
W0323104 CUP HOLDER
$18.10
W0323105 PIN
$15.10
W0323106 PIN
$19.80
W0323109 CARAFE
W0323283 FILTER RETAINING SPRING (AISI 302)
$13.00
W0323285 SPRING
$11.70
W0323291 SPRING
$12.90
W0323303 MICROSWITCH SPRING
$12.90
W0323304 SPRING
$12.90
W0323306 SPRING
$12.90
W0326340 SAFETY VALVE
$14.90
W0326345 SUPPORT
$26.20
W0326352 LEFT PANEL
$52.60
W0326353 RIGHT PANEL
$53.20
W0326354 SUPPORT BASE
$62.70
W0327159 CLIP CLAMP (0.4X8.8-10.5)
