EC685.R — 0132106165

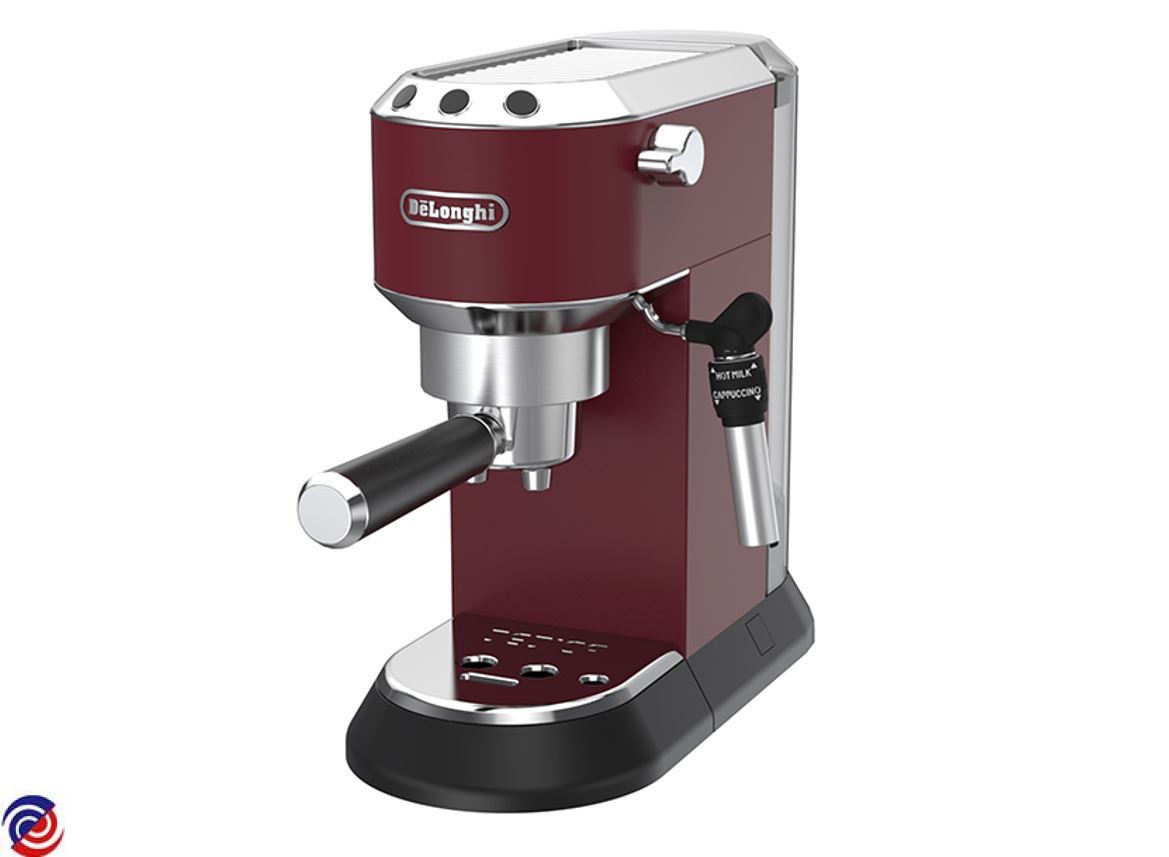

DELONGHI — Coffee Machine

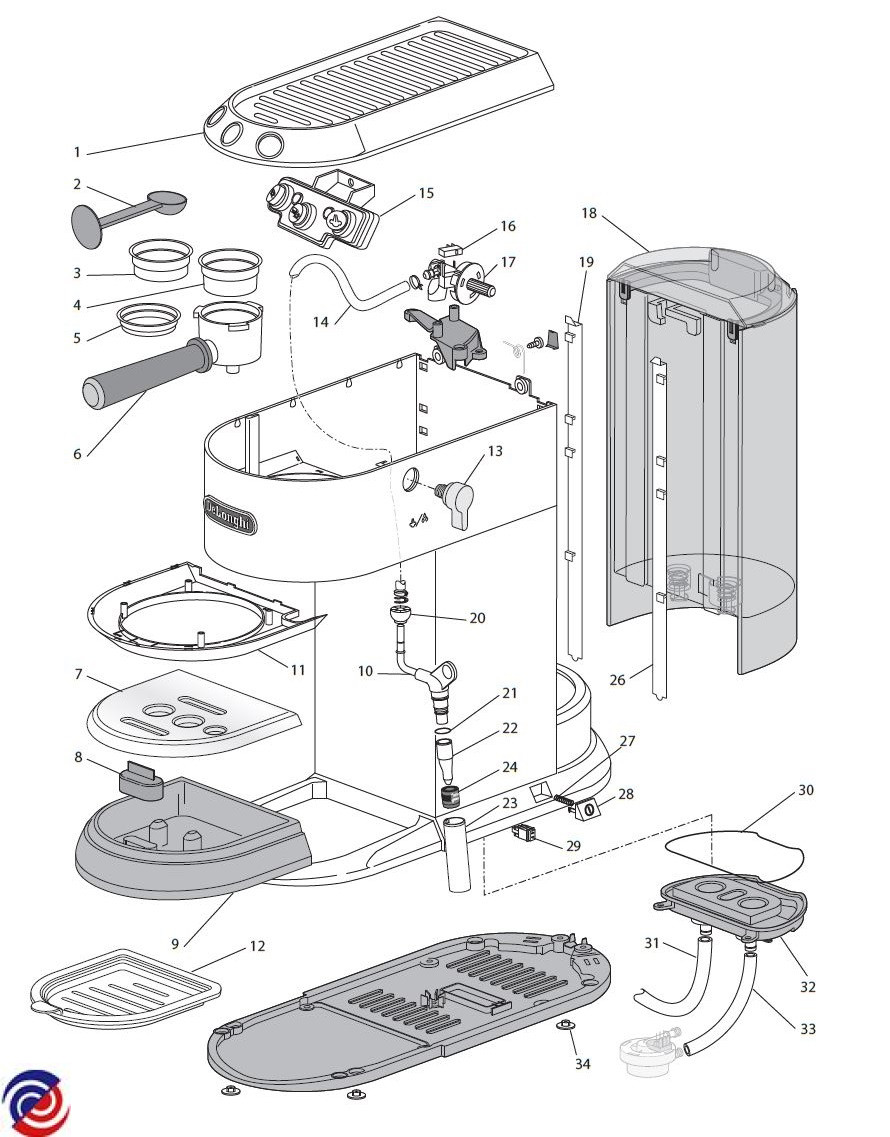

Parts for EC685.R
W0276989 SILICONE HOSE (DI=4 DE=8 L=150)
$12.20
W0276995 O-RING (D=3.85 T=2)
$12.20
W0276996 SPRING
$11.90
W0276997 FLOWMETER
W0276999 PUMP PROTECTOR
$24.80
W0277008 SPACER
$12.20
W0277078 GASKET
$12.20
W0277082 RUBBER FOOT PAD
$5.00
W0277132 GENERATOR GASKET
$11.70
W0277182 COFFEE MEASURING SPOON
$14.00
W0277183 ONE CUP EASY CLEAN FILTER
$18.75
W0277184 DELONGHI 2 CUPS EASY CLEAN FILTER
$21.50
W0277187 CUP HOLDER
$14.40
W0277188 FLOAT
$13.00
W0277189 DRIP TRAY
$14.10
W0277190 STEAM HOSE ASSEMBLY
$19.60
W0277191 DISPENSER COVER
$18.20
W0277192 CUP HOLDER WITH FRAME
$14.70
W0277195 CONTROL BOARD ASSEMBLY
$19.10
W0277196 MICROSWITCH
$13.00
W0277197 STEAM VALVE
$16.00
W0277198 WATER TANK ASSEMBLY
$26.00
W0277200 BALL JOINT
$12.90
W0277201 STEAM NOZZLE
$14.00
W0277202 FROTHER RING NUT
$12.20
W0277203 FROTHER TUBE
$17.30
W0277205 SPRING
$12.90
W0277207 UNIPOLAR SWITCH (16A 250V)
$13.80
W0277208 TRAY GASKET
$13.00
W0277209 RUBBER HOSE (L270)
$13.20
W0277210 WATER TANK
$13.90
W0277212 DELONGHI COFFEE MACHINE PUMP (ULKA 230V 48W)
$37.95
W0277213 SPRING
W0277214 VALVE
$6.60
W0277215 RING
$11.90
W0277216 GASKET
$11.70
W0277217 CLOSURE GASKET
$12.88
W0277218 BREWING GASKET SUPPORT
$12.70
W0277219 BOTTOM GASKET
W0277220 DIFFUSER
$12.80
W0277222 CONNECTORS GASKET
$12.90
W0277223 SENSOR (NTC L400)
$16.50
W0277224 6-POLE WIRING
$15.50
W0277225 WIRING WITH CONNECTORS
$16.20
W0277226 WIRING
$14.20
W0277227 POWER BOARD (SW1.1 230V)
$35.70
W0277228 GENERATOR (5X05 230V1300W PLAS.CONNEC.)
$26.70
W0277229 CLIP
$12.00
W0277230 FIXING BRACKET (NTC)
W0277231 CONNECTION
$12.30
W0277232 TCO (192°)
$13.40
W0277233 FIXING BRACKET (TCO)
W0277234 RIGHT ANGLE GENERATOR CONNECTION
$12.30
W0277235 TUBE WITH 2 BUSHES (L230)
$14.30
W0277236 TUBE WITH 1 BUSH (L135)
$13.20
W0277237 TUBE / 2 BUSHES (PTFE DI2-DE4 L=100)
W0277238 SPRING
$12.80
W0277239 3-WAY VALVE CONNECTOR
$17.00
W0277240 PORTABLE DIGITAL THERMOMETER, -50 +150°C
$88.90
.jpg)
W0319564 DELONGHI FILTER HANDLE
W0326093 DELONGHI SAFETY ANTI-DRIP VALVE
$19.00
W0277181 UPPER COVER
$25.50
W0277193 STEAM KNOB
$15.70
W0277194 TUBE (L150)
$12.90
W0277199 RIGHT PROFILE
$13.00
W0277204 LEFT PROFILE
$13.00
W0277206 ON/OFF PUSH BUTTON
$13.00
W0277221 POWER SUPPLY CORD WITH PLUG (AU)
W0315433 DOUBLE ATTACHMENT GASKET
$12.90
W0345174 DLSC402 FILTER E.S.E POD
$17.05
