CHG606SB — 943253966 02
CHEF — Cooker Gas

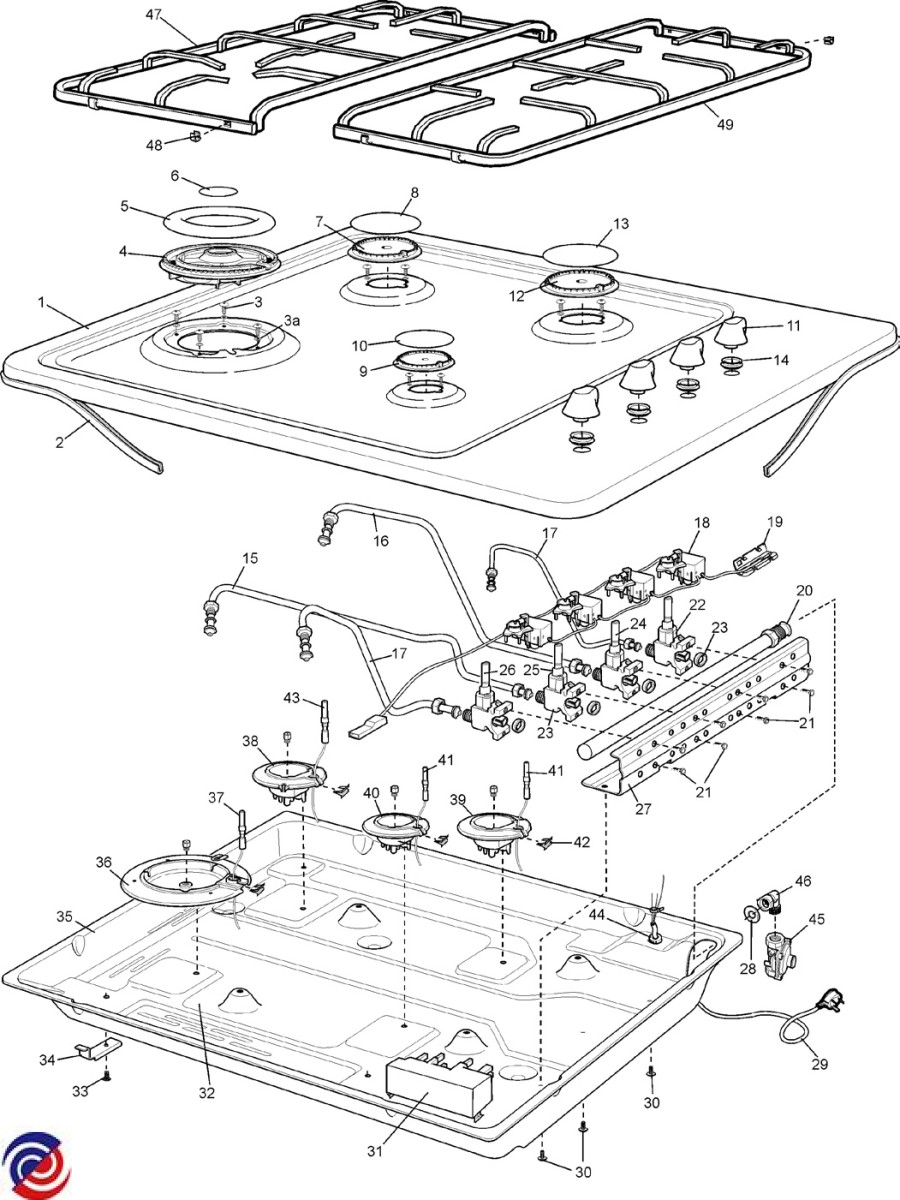

Parts for CHG606SB
W0012724 SEAL VALVE SOURDILLON
W0021331 SCREW 3/4X8 PAN Z/P (LP HP AER
$4.50
W0021415 CAP BURNER OUTER MATT WOK
W0021454 VALVE GAS BSI RAPID STD RED
W0021539 SEAL HOB BLK 2320MM
$27.30
W0022617 BURNER CROWN RAPID CYLINDER
W0022619 BURNER SEMI-RAPID CYLIND
$40.00
W0022624 BURNER CROWN AUX CYLINDER
W0027350 BURNER CAP AUX MATT BLACK ENAM
$17.00
W0027351 BURNER CAP RAPID MATT BLACK EN
W0030455 BURNER BODY ASSY WOK NG
$44.00
W0045365 WASHER SEALING
$4.50
W0065298 HOLDER INSULATOR 140C NYLON
W0102299 VALVE GAS BSI BSI AUX ST GREEN
W0110089 BURNER ASSY TRIPLE CROWN WOK
W0011182 RAIL GAS COOKTOP 4 HOLE CORAL
$13.20
W0012392 INJECTOR H/P 0.55MM
W0012393 INJECTOR H/P 0.70MM
W0012395 NIPPLE INJ 0.90
$8.80
W0012403 INJECTOR 1.75 ELUX WOK NG
$8.80
W0013025 REGULATOR GAS NG INTEG TEST PT
W0021309 SCREW PAN HEAD M4 X 8
W0021359 SCREW 6/32 X 3/8 M/SERATED T/C
W0021413 CAP BURNER INNER MATT WOK
W0021422 FOOT RUBBER IGNITE WIRE TRIVET
W0021453 VALVE GAS BSI FSG S/ RAP ST BL
W0021455 VALVE GAS BSI WOK STD BLACK
W0021525 SCREW M4 X 15 HEX ZC
$4.50
W0021555 GROMMET 23MP06N40
$6.10
W0022642 SCREW 2.9 X 13 PAN T10 ZP
$4.50
W0027288 GROMMET
W0027389 IGN BOX 4 POINT 220.240V JAVA
$47.90
W0029503 SWITCH HARNESS 4PT
W0029625 PLUG SPARK WOK 900MM ENAMELLED
W0029627 PLUG SPARK 400 MM 260C - ELUX
$7.45
W0029629 PLUG SPARK 900 MM ENAMELLED
W0029916 KNOB CHEF SELECT S/S GAS HOB
W0030071 CLIP SPARK PLUG ELUX MO/A 120
W0030137 TRIVET WIRE STD/STD CHEF MATT
$84.55
W0030171 TRIVET WIRE STD/WOK CHEF MATT
$81.65
W0030402 HOB 900 CT WHITE CHEF SCR WOK
$59.70
W0030443 BURNER BODY ASSY AUX IGN NG
$43.00
W0030447 BURNER BODY ASSY S/RAP IGN NG
W0030451 BURNER BODY ASSY RAPID IGN NG
W0030612 SERVICE CORD 1200MM
W0043548 TUBE BURN ELUX SQU C/TOP RF/RR
W0043549 TUBE BURN ELUX SQU C/TOP LF
W0043550 TUBE BURN ELUX SQU C/TOP LR
W0044218 FITTING INLET TAPERED BSPT
W0046736 INJECTOR 1.00 H/P
$8.80
W0046737 INJECTOR 1.35 H/P
W0046745 INJECTOR RAPID NG 1.60
$8.80
W0046753 INJECTOR 1.45 ELUX FISH NG
W0053308 STICKER GAS TYPE NG
$4.00
W0053310 STICKER GAS TYPE LPG
$4.50
W0102092 SCREW M4 X 8 PHIL
W0102334 BRACKET GAS RAIL 600/900 WELD
$14.30
W0147394 BURNER CAP SEMI RAPID MATT BLK
W0153991 REGULATOR GAS NG INTEG TEST PT
$41.00
W0154001 CLAMP BURNER BOX CORAL/GAIL HZ
W0159885 GAS CONVERSION INSTRUCTIONS
