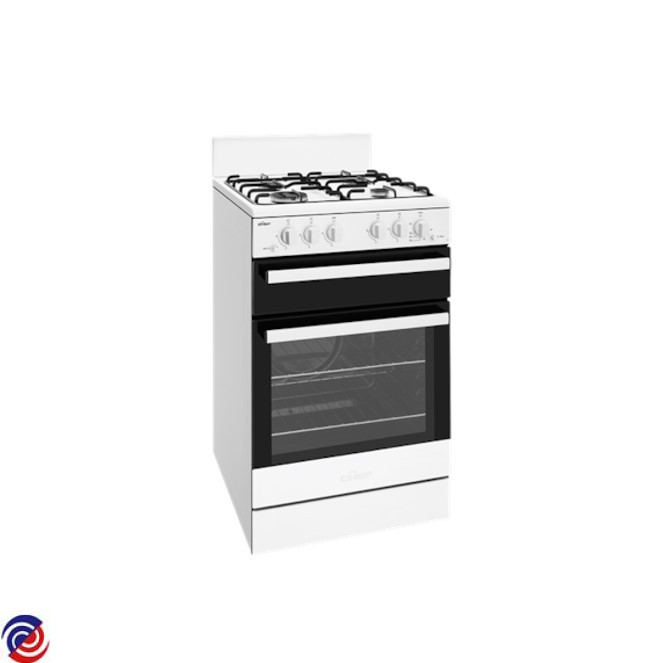

CFG503WCH — 944300094 00
CHEF — Cooker Gas
Parts for CFG503WCH
W0365466 DISH GRILL ENAMEL
$105.00
W0365467 RACK GRILL INSERT
$69.05
W0365487 CHEF ELECTROLUX WESTINGHOUSE OVEN DOOR SEAL GASKET
$49.95
W0365529 CLIP MOUNTING ELEMENT
$10.00
W0365567 SHELF OVEN
$78.00
W0365624 CHEF ELECTROLUX WESTINGHOUSE BURNER OVEN FREESTANDING
$126.00
W0365676 THERMOCOUPLE OVEN BURNER
$62.00
W0366269 THERMOCOUPLE TO SUIT ELECTROLUX AND WESTINGHOUSE GAS BURNERS
$57.95
W0368470 CAP TOP PAIR DOOR JONAH
$37.00

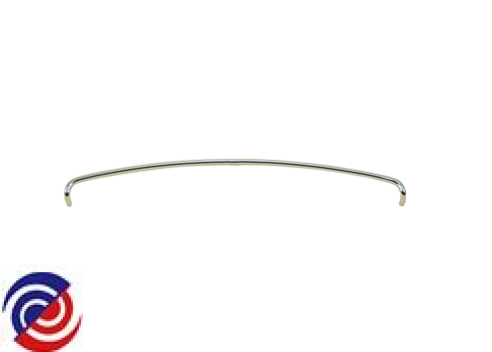

W0372620 HANDLE GRILL DISH
$11.00
W0372954 CHEF OVEN GRILL DOOR HANDLE ENDCAP SINGLE
$30.00
W0365519 DOOR OVEN INNER GLASS
$116.00
W0365725 CHEF WESTINGHOUSE COOKTOP GAS PIEZO IGNITOR WHITE
$33.00
W0365755 SPARK PLUG GRILL DERLITE
$21.30
W0365758 BURNER GRILL
$130.00
W0365828 540 LOWER REAR BRACE
$14.00
W0365872 PLATE CVR TERM GAS 540 BIOS
$16.00
W0365873 WIRE IGN OVEN/PIEZO 1100MM
$14.95
W0365880 HINGE GR DOOR 540 FRESCO PH2
$7.00
W0365917 ANTI TILT PLATE
$20.00
W0365927 BRKT IGNITION GRILL H/T 540
$4.00
W0365934 FOOT LEVELING
$20.00
W0365971 SHIELD SPILLAGE
$24.00
W0365997 ENDCAP CNTRL PANEL FRESCO PAIR
$24.00
W0366038 VALVE COPRECCI FSG GRILL
$49.00
W0366059 BRACE OVEN REAR 540 BIOS
$29.05
W0366061 PANEL KICK 540 SML WHT PREPAIN
$31.00
W0366062 VALVE COPRECCI FSG AUX
$49.00
W0366063 VALVE COPRECCI FSG SEMIRAPID
$49.00
W0366064 VALVE COPRECCI FSG RAPID
$49.00
W0366151 TRIVET ENAMEL STANDARD
$46.00
W0366174 INSULATION OVEN GAS 540 BIOS
$46.00
W0366184 BURNER CROWN AUX CYLINDER NAT
$47.00
W0366201 RACK,PACK
$48.05
W0366207 THERMOCOUPLE GRILL BURNER 400
$52.00
W0366217 BURNER CROWN RAPID CYLIND NAT
$57.00
W0366218 BURNER CROWN SEMI-RAP CYL NAT
$56.00
W0366259 RACK SIDE GRILL LH/RH
$58.05
W0366265 T'COUPLE TT ELUX BURNER 275
$61.00
W0366287 HINGE GR DOOR 540 FREE FRESCO
$67.00
W0366343 COVER OVEN BURNER
$93.00
W0366361 PNL SPLASHBACK 540 WHT
$100.00
W0366381 PANEL SIDE WHITE FRESCO
$111.00
W0366849 TUBE BURNER GRILL FF
W0366856 TUBE OVEN SUPPLY 600SI FRESCO
W0367629 SEALING PANEL,GAS,540 BIOS
$8.05
W0367630 SHIELD GRLL GAS BURNR FRSCO LH
W0367631 SHIELD GRLL GAS BURNR FRSCO RH
W0367928 NUT HEX M6
$4.00
W0367960 SCREW #8 X 50 PAN #2PH
$4.00
W0367983 SCREW PF K40X 20 T20 ROUND
$5.50
W0368025 SCREW M4 X 16MM HEX ZC
$4.00
W0368028 SCREW #8 X 8MM HEX/MULTI
$5.50
W0368029 SCREW #8 X 1/2 MUSH #2PH AB BK
$5.50
W0368064 BRACKET MOUNTING GRILL
$5.50
W0368094 BUMPER STOP GREY
$5.80
W0368095 TUBE BURNER 540 L/F FF
$5.90
W0368103 SHUTTER AERATION GRILL NG BIOS
$6.25
W0368122 PLATE FOOT MOUNTING
$6.60
W0368194 IGNITOR OVEN BURNER
$11.00
W0368199 CLIP BULB THERMOSTAT GAS (4MM)
$10.00
W0368212 HOLDER INJECTOR OVEN
$11.00
W0368215 BRACKET F/FAIL GAS RAIL FF
$10.60
W0368666 HOB 540F ENAM GAS STD FF
$153.00
W0368702 KNOB CHEF WHITE FF
$21.00
W0368704 PANEL ASSLY OV DR OUT JONAH WH
$98.00
W0370396 BURNER PIPE, RIGHT, FRONT, 540
$7.80
W0370425 BURNER PIPE, REAR, LEFT, 540
$8.45
W0370427 BURNER PIPE, REAR, RIGHT, 540
$8.15
W0370429 BURNER BODY, AUXILIARY, NG
$6.35
W0370432 BURNER BODY, SEMI-RAPID, NG
$4.95
W0370435 BURNER BODY, RAPID, NG
$9.75
W0370502 HINGE OVEN DOOR 5.2-5.8KG
$41.00
W0370511 HINGE SUPPORT, 540/600 FS
$6.00
W0370604 F/FRONT 540FC SG GLOBAL HINGE
$5.25
W0370901 SCREW, M4 X 8.5 T20 ZINC
$5.50
W0371505 HANDLE 54CM JONAH WHITE
$55.00
W0371529 PNL OUT GR DR ASSY 540 BLACK
$115.00
W0372642 SPACER HANDLE BLK FRESCO
$11.00
W0372701 INSTALL ANTI TILT KIT
$14.00
W0372922 BURNER CAP RAPID 2 MM BLACK
$28.00
W0373164 PANEL COVER WIRE GAS 540 BIOS
$50.00
W0373476 PANEL CONTROL SCREEN CFG503WB
$100.05
W0382405 SCREW TORQ #4 X 12 #6 PAN HEAD
W0382430 THERMOSTAT, COPRECI, L=1000MM
$67.00
W0383378 CONVERSION KIT, PROPANE, (FOR AU)
$17.00
W0383389 BURNER CAP - SEMI-RAPID
W0383390 3540170069
W0383391 GAS GRILL COVER
W0383392 OVEN GRILL DUCT
W0383393 HOB SUPPORT BRACKET
