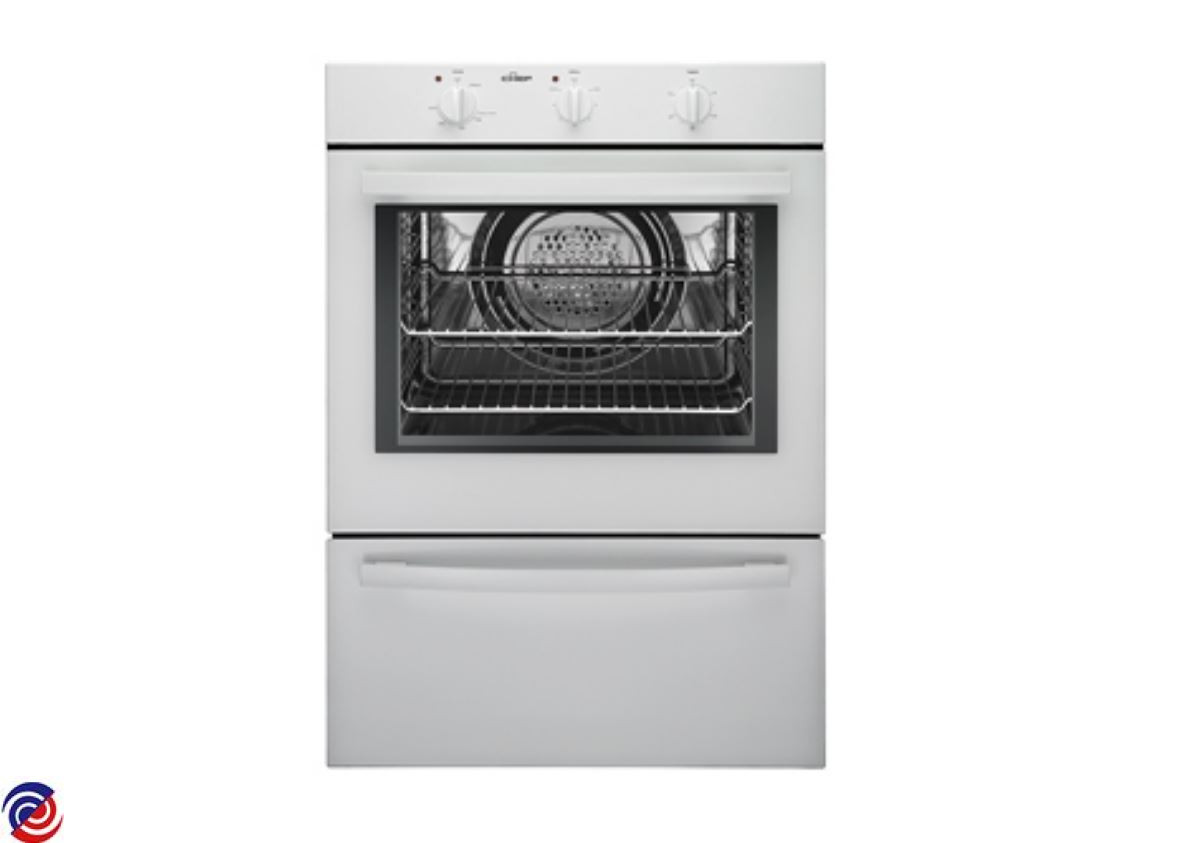

EXC624W*42
CHEF — Cooker Electric
Parts for EXC624W*42
.JPG)
W0011297 BLADE FAN
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011420 DOOR OVEN INNER
.JPG)
W0012255 ELEMENT GRILL 2200W SS321
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
W0013750 LENS INDICATOR LIGHT
$11.20
.JPG)
W0046406 CLIP MOUNTING ELEMENT
W0050006 GASKET CAVITY OVEN
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0053487 SHELF OVEN 473 X 378MM
.JPG)
W0057166 CHEF SIMPSON WESTINGHOUSE COOKTOP CONTROL SWITCH MP101
.JPG)
W0057210 SWITCH AUXILIARY T/STAT
.JPG)
W0057771 THERMOSTAT OVEN
.JPG)
W0060746 TIMER 60MIN 360 ACTION PEAPSA
W0100889 CLIP SPRING KNOB
$9.15
W0166032 LAMP 25W SES E14 300C CLEAR
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011260 PLATE MOUNTING SWITCH
$14.95
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011321 COVER BASE PANEL SHIELD BIOS
$29.70
W0011512 PANEL CABINET REAR
$49.50
W0011666 COVER FAN & ELEMENT
$95.75
W0011993 NUT METRIC M10 X 0.75MM
$4.50
W0012313 CLIP INSTALL RH BIOS
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012317 CLIP INSTALL LH BIOS
$10.00
W0012560 END CAP HANDLE WHT CHEF BIOS
$17.40
W0012970 SPACER HANDLE
W0013260 SHIELD WIRING
$11.95
W0013320 INSULATION OVEN BACK DUO BIOS
$11.00
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014037 SCREW 3/16X14MM PAN PH TRILOB
W0021285 LABEL DOOR GRILL
$4.50
W0036213 SUPPORT ELEMENT GRILL
W0036948 KNOB CONTROL WHT 7801
W0039455 DOOR GRILL INNER PANEL
$160.00
W0039554 DOOR OVEN GLASS OUTER WHT
$62.00
W0039639 BASEPLATE
W0039640 PANEL UPPER
W0039686 PANEL CHASSIS TOP
$27.50
W0039691 PANEL GRILL TOP SGWO ENAM BIOS
W0039797 PANEL SIDE SGWO BIOS
W0040472 PANEL CONTROL & CLIPS
W0042625 CHANNEL FRONT SGWO RH BIOS
W0042627 CHANNEL FRONT SGWO LH BIOS
W0042959 HANDLE DOOR CHEF BIOS WHITE
$50.00
W0043826 LIGHT INDICATOR BIOS 240V 200
W0044064 NUT M6 LH FAN MOTOR ECM
W0044616 FRAME FRONT ENAM ELE SGWO BIOS
W0044828 FLUE OVEN VENT ELEC U/B BIOS
W0047142 RING O HANDLE
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0052582 CANOPY FAN ASSEMBLY BIOS
W0052948 SPACER CONTROL PANEL BIOS
$6.00
W0053490 RACK GRILL INSERT
W0053502 RACK SIDE GRILL LH/RH
$40.00
W0054645 INSULATION OVEN CABINET
W0054646 INSULATION OVEN BACK BIOS
W0054663 INSULATION GRILL SGWO BIOS
W0056173 GRILL BOX ENAM DEEP 600UP
W0056272 BRACE OVEN REAR BI BIOS
W0058480 FRAME CONTROL PANEL
$223.35
W0058482 PLATE HINGE BTM RH BIOS
W0058483 TRIM HINGE BTM LH BIOS
W0058484 TRIM HINGE SGWO BIOS
W0062472 DOOR GRILL GLASS OUTER WHT
W0064532 SCREW #8 X 9/16 B/HD S/PT BKOX
$4.00
W0064534 SCREW #8 X 38MM PAN QUADREX
W0064590 SCREW 3/16X30MM PAN PH TRILOB
W0065058 CLIP SPEED #8 8526 17 320
W0065405 SCREW M4 X 16 PAN FLANGE BIOS
W0065420 SCREW M4 X0.7X10 MUSH QUADRERX
W0114680 HOLDER LAMP ASSY BIOS
