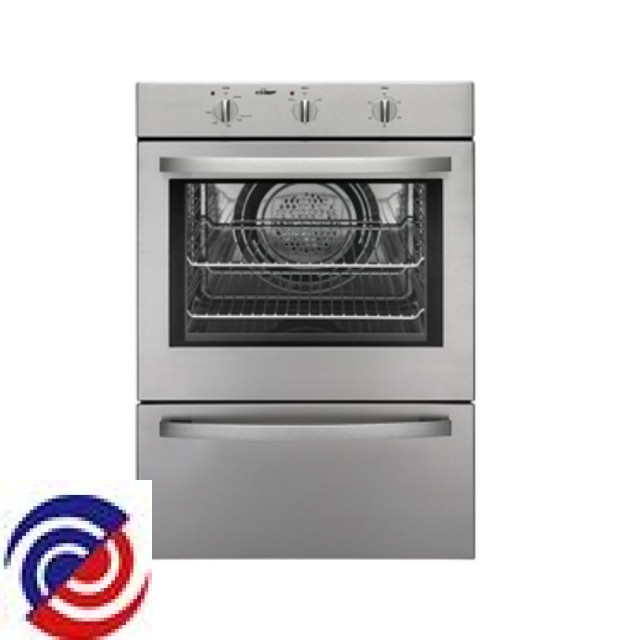

EXC624S*40
CHEF — Cooker Electric
Parts for EXC624S*40
.JPG)
W0011297 BLADE FAN
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011420 DOOR OVEN INNER
.JPG)

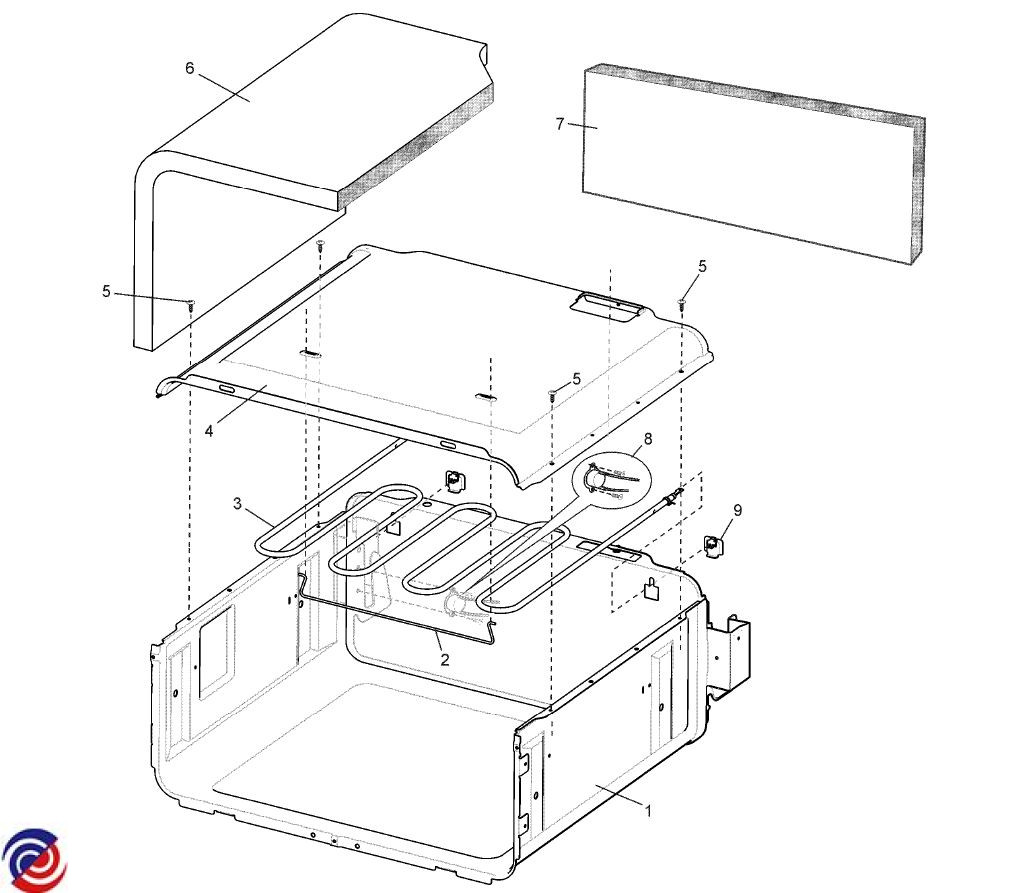

W0012255 ELEMENT GRILL 2200W SS321
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
W0013750 LENS INDICATOR LIGHT
$11.20
.JPG)
W0046406 CLIP MOUNTING ELEMENT
W0050006 GASKET CAVITY OVEN
_1.JPG)

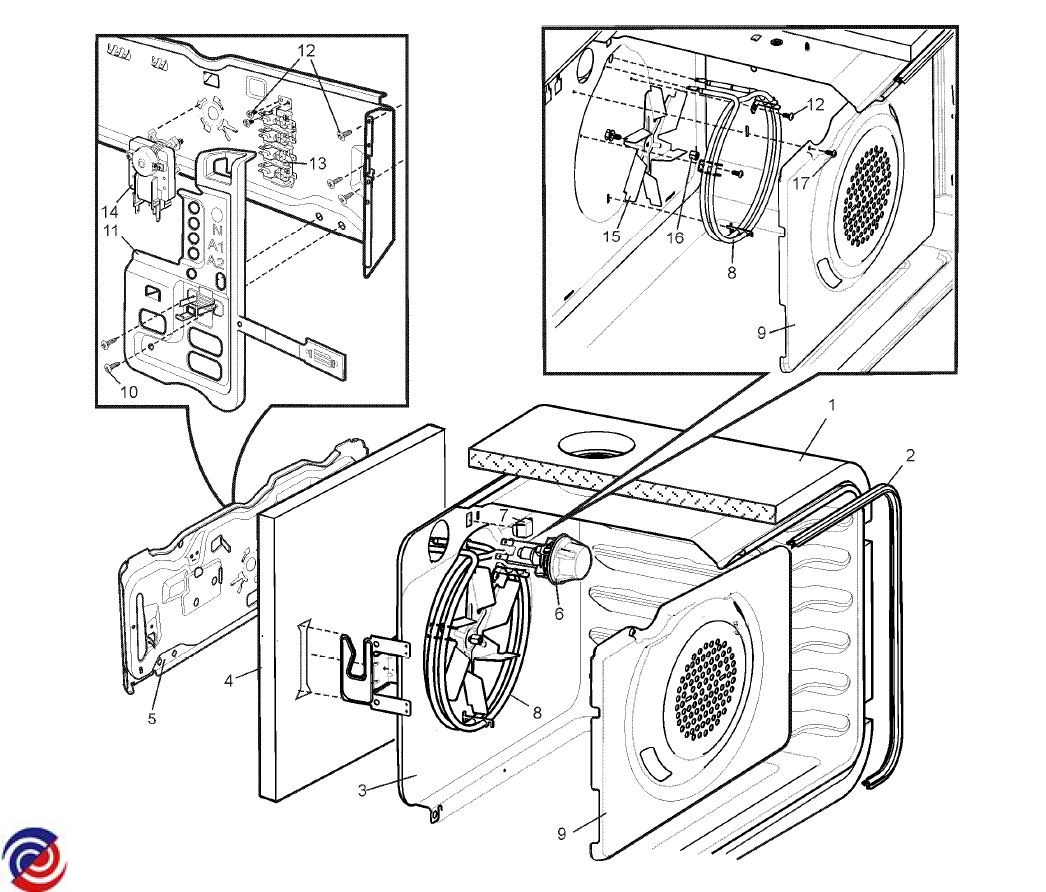

W0050403 MOTOR FAN OVEN
.JPG)
W0053487 SHELF OVEN 473 X 378MM
.JPG)
W0057166 CHEF SIMPSON WESTINGHOUSE COOKTOP CONTROL SWITCH MP101
.JPG)
W0057210 SWITCH AUXILIARY T/STAT
.JPG)
W0057771 THERMOSTAT OVEN
.JPG)
W0060746 TIMER 60MIN 360 ACTION PEAPSA
W0100889 CLIP SPRING KNOB
$9.15
W0166032 LAMP 25W SES E14 300C CLEAR
$10.00
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011260 PLATE MOUNTING SWITCH
$14.95
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011321 COVER BASE PANEL SHIELD BIOS
$29.70
W0011512 PANEL CABINET REAR
$49.50
W0011666 COVER FAN & ELEMENT
$95.75
W0011993 NUT METRIC M10 X 0.75MM
$4.50
W0012313 CLIP INSTALL RH BIOS
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012317 CLIP INSTALL LH BIOS
$10.00
W0012561 END CAP HANDLE BLK CHEF BIOS
W0012973 SPACER HANDLE SS KYLIE DOORS
$4.50
W0013260 SHIELD WIRING
$11.95
W0013320 INSULATION OVEN BACK DUO BIOS
$11.00
W0013623 PLATE HINGE SGWO BIOS
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0021285 LABEL DOOR GRILL
$4.50
W0036213 SUPPORT ELEMENT GRILL
W0036931 KNOB CHEF ELEC WHITE 7801 BIOS
$19.00
W0039455 DOOR GRILL INNER PANEL
$160.00
W0039553 DOOR OVEN GLASS OUTER

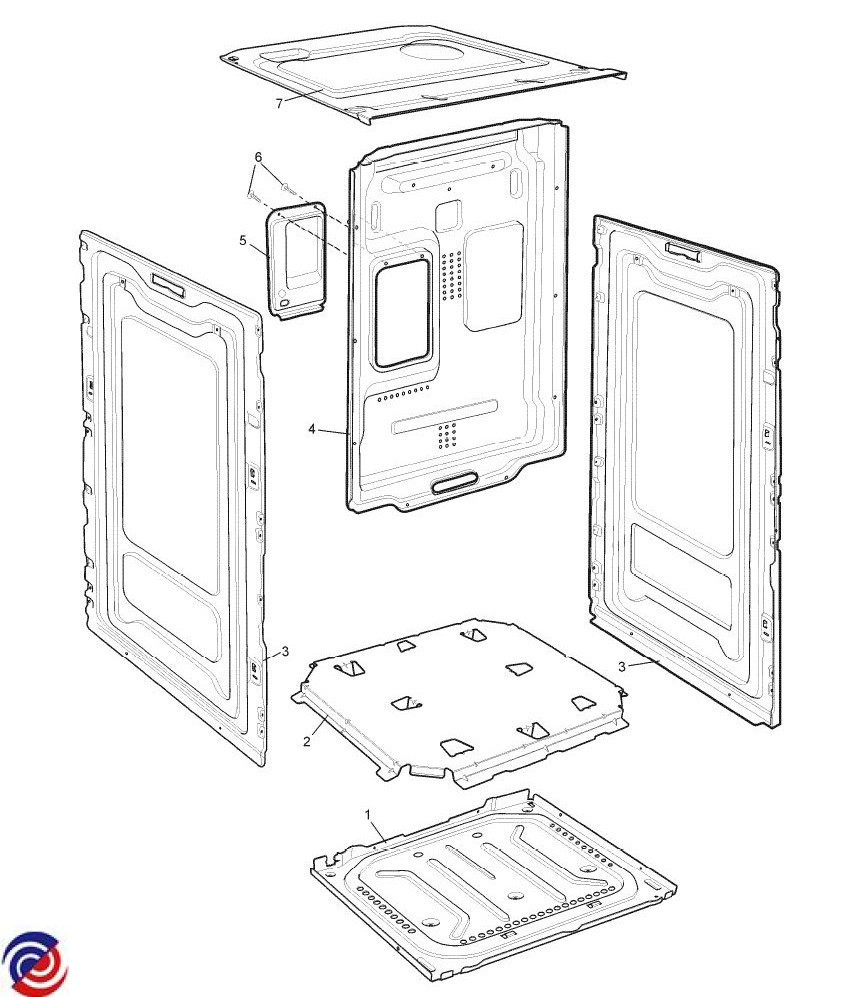

W0039639 BASEPLATE
W0039640 PANEL UPPER
W0039686 PANEL CHASSIS TOP
$27.50
W0039691 PANEL GRILL TOP SGWO ENAM BIOS
W0039784 PANEL SIDE SGWO BIOS
W0040472 PANEL CONTROL & CLIPS
W0042620 CHANNEL FRONT SGWO RH BIOS
W0042621 CHANNEL FRONT SGWO LH BIOS
W0042958 HANDLE DOOR
W0043826 LIGHT INDICATOR BIOS 240V 200
W0044064 NUT M6 LH FAN MOTOR ECM
W0044616 FRAME FRONT ENAM ELE SGWO BIOS
W0044828 FLUE OVEN VENT ELEC U/B BIOS
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50

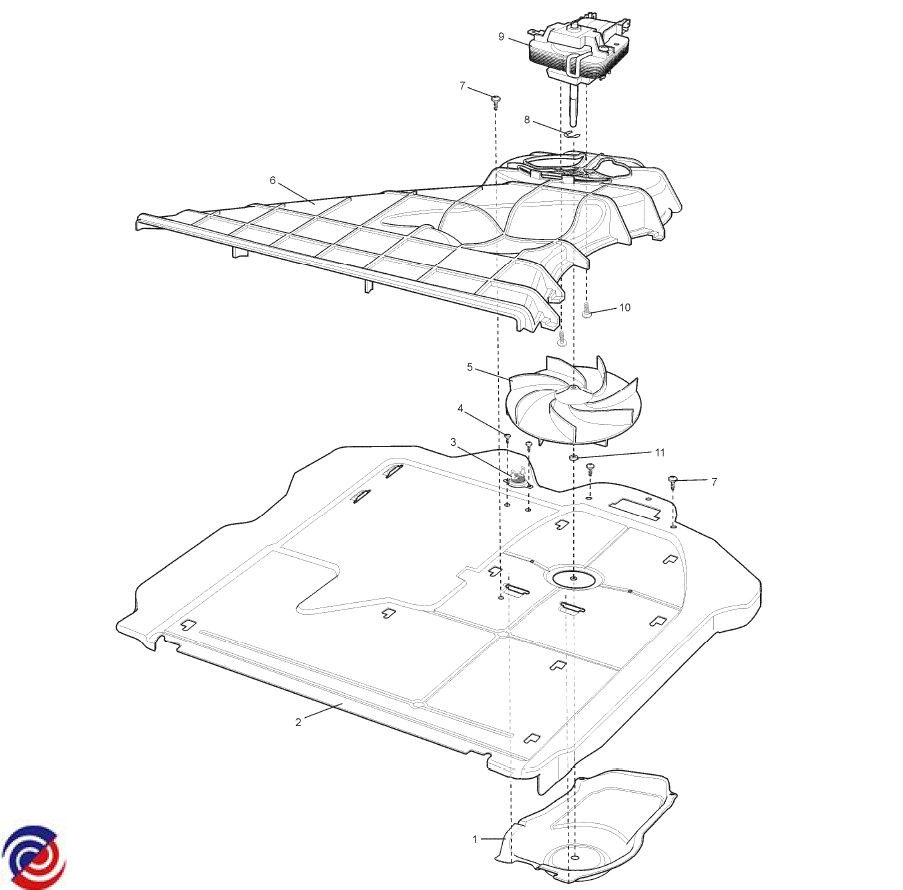

W0052582 CANOPY FAN ASSEMBLY BIOS
W0052948 SPACER CONTROL PANEL BIOS
$6.00

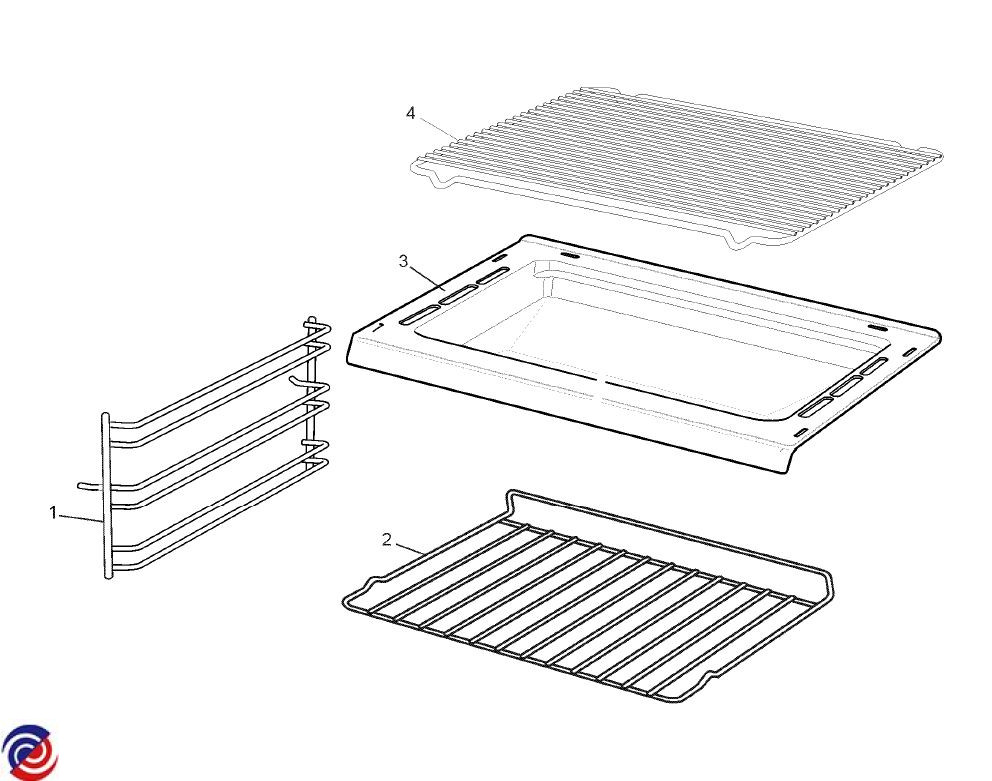

W0053490 RACK GRILL INSERT
W0053502 RACK SIDE GRILL LH/RH
$40.00
W0054645 INSULATION OVEN CABINET
W0054646 INSULATION OVEN BACK BIOS
W0054663 INSULATION GRILL SGWO BIOS
W0054962 PANEL OVEN LINING REAR
W0056173 GRILL BOX ENAM DEEP 600UP
W0056272 BRACE OVEN REAR BI BIOS

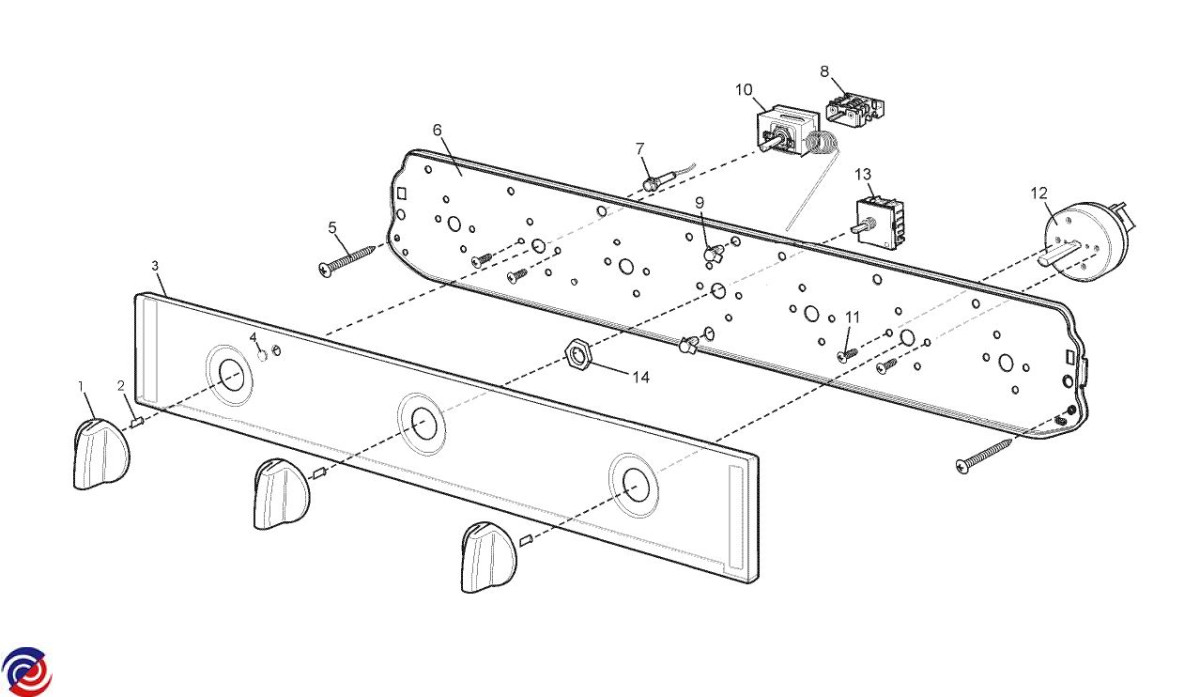

W0058480 FRAME CONTROL PANEL
$223.35
W0058482 PLATE HINGE BTM RH BIOS
W0058483 TRIM HINGE BTM LH BIOS

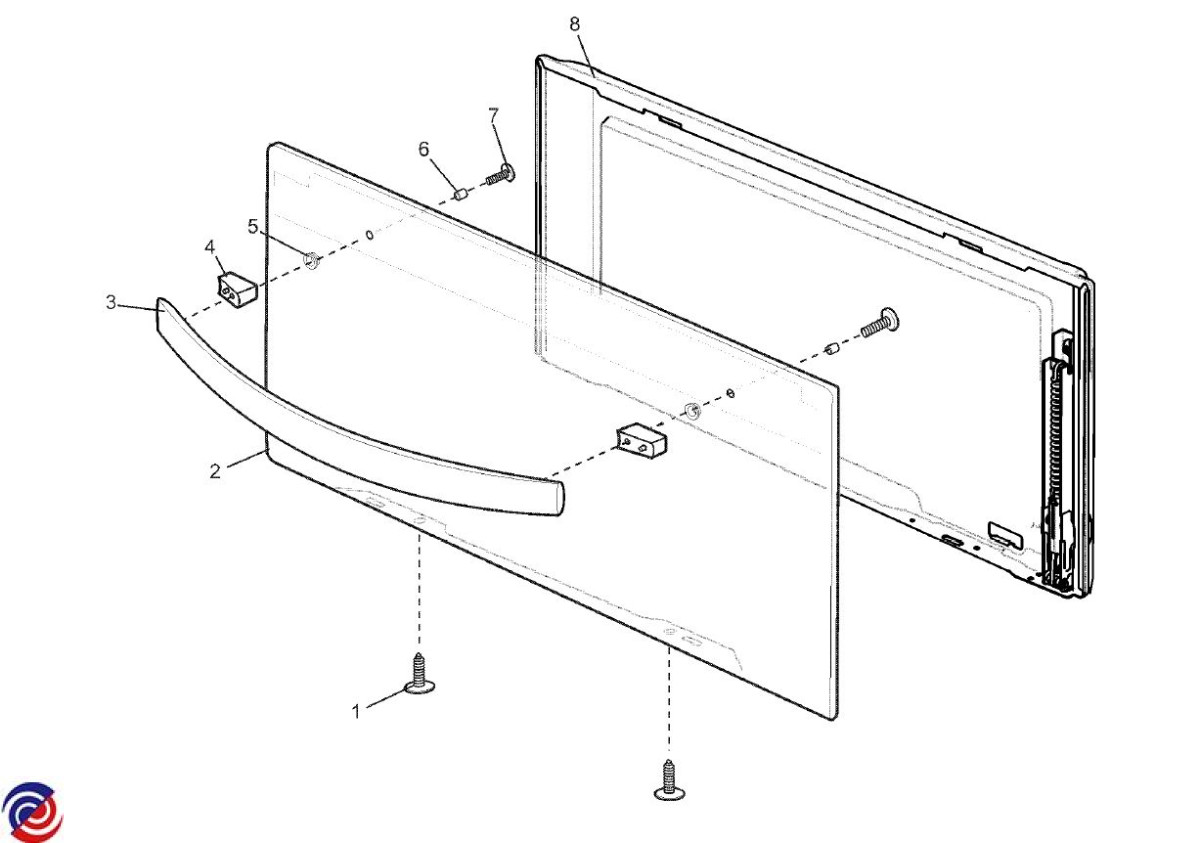

W0062471 DOOR GRILL GLASS OUTER SS
$160.00
W0064532 SCREW #8 X 9/16 B/HD S/PT BKOX
$4.00
W0064534 SCREW #8 X 38MM PAN QUADREX
W0064590 SCREW 3/16X30MM PAN PH TRILOB
W0064591 SCREW 3/16X15 PAN PH TRILOB ZY
W0065058 CLIP SPEED #8 8526 17 320
W0065405 SCREW M4 X 16 PAN FLANGE BIOS
W0065420 SCREW M4 X0.7X10 MUSH QUADRERX
W0114680 HOLDER LAMP ASSY BIOS
W0158182 STEELKLEEN REPELLANT 250ML
