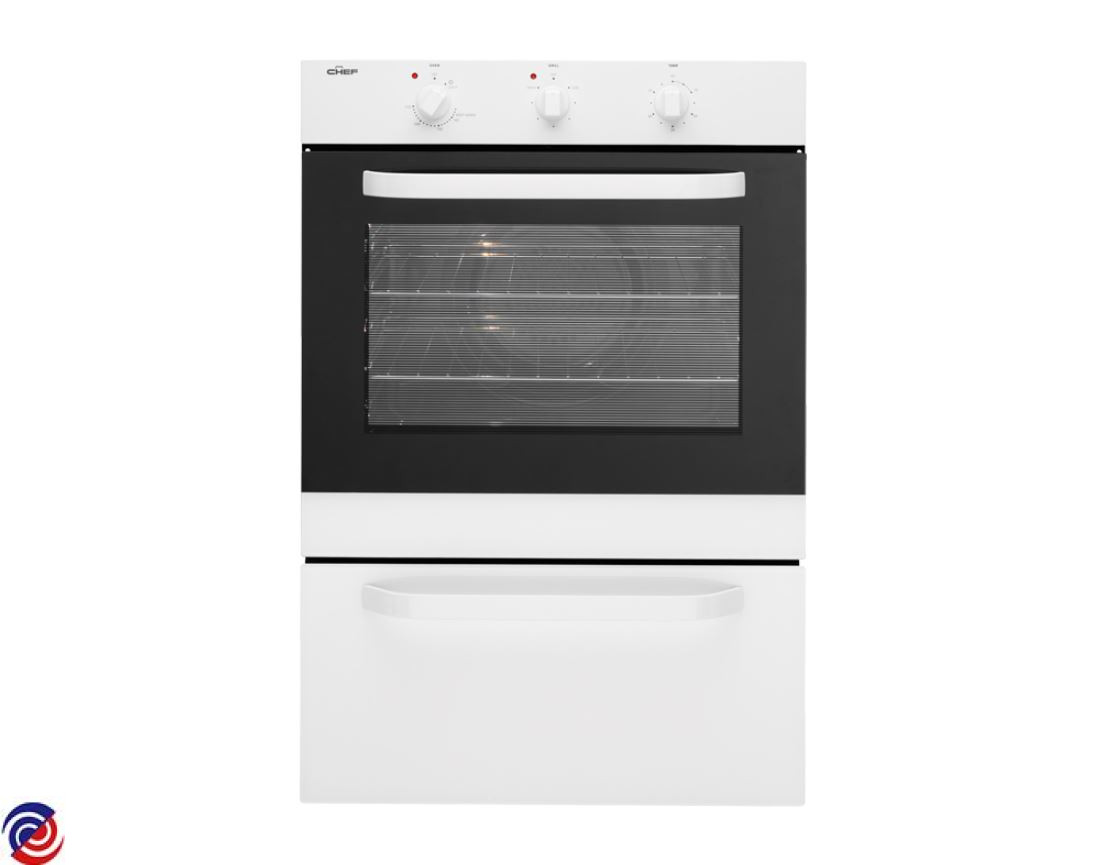

EXC617W — 944031489 09
CHEF — Cooker Electric
Parts for EXC617W
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011916 HANDLE DOOR
.JPG)
W0012255 ELEMENT GRILL 2200W SS321
W0012258 ELEMENT BOOST ASSY 800W - BIOS
W0012840 DOOR GRILL INNER GLASS
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0013619 TRIM DOOR LOWER
W0013750 LENS INDICATOR LIGHT
$11.20
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0014032 SCREW #8 X 45 PAN QUADREX
.JPG)
W0022966 HINGE DOOR
W0023085 HINGE DOOR GRILL
$64.25
.JPG)
W0046406 CLIP MOUNTING ELEMENT
.JPG)
W0050309 LAMP
W0052258 DOOR OVEN INNER GLASS
.JPG)
W0052585 CANOPY FAN ASSY U/B NGD
.JPG)
W0053487 SHELF OVEN 473 X 378MM
.JPG)
W0057166 CHEF SIMPSON WESTINGHOUSE COOKTOP CONTROL SWITCH MP101
.JPG)
W0057210 SWITCH AUXILIARY T/STAT
.JPG)
W0057771 THERMOSTAT OVEN
W0058493 TRIM DOOR UPPER VENTED
.JPG)
W0060746 TIMER 60MIN 360 ACTION PEAPSA
W0147339 SEAL OVEN MODULAR PROFILE
W0166032 LAMP 25W SES E14 300C CLEAR
W0365427 SWITCH AUXILIARY T/STAT
$24.60
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011260 PLATE MOUNTING SWITCH
$14.95
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011487 PANEL SIDE RH
$49.50
W0011512 PANEL CABINET REAR
$49.50
W0011563 PANEL CONTROL & CLIPS
$128.00
W0011856 SUPPORT ELEMENT
W0011993 NUT METRIC M10 X 0.75MM
$4.50
W0012083 FLUE OVEN VENT ELEC U/B NGD
$16.50
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012562 MOUNT CAP F/FRAME R/H NGD
$5.80
W0012563 MOUNT CAP F/FRAME L/H NGD
$7.55
W0012972 SPACER HANDLE GLS DR SOD BIOS
W0013260 SHIELD WIRING
$11.95
W0013320 INSULATION OVEN BACK DUO BIOS
$11.00
W0013625 FRAME CONTROL PANEL
W0013730 BUMPER STOP BLK
$6.55
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014021 SCREW #10 X 14.5 PAN PH 'Z' PT
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014079 BUSH MOUNT F/FRAME NGD
$7.25
W0027199 FRAME FRONT ENAM ELE SGWO NGP
$79.20
W0036213 SUPPORT ELEMENT GRILL
W0036949 KNOB CONTROL WHT
W0038118 COVER RETAINING LATCH
$10.95
W0038121 COVER CLEAN HEAT FULL GALV BIO
W0039572 DOOR GRILL GLASS OUTER WHT
W0039581 DOOR OVEN OUTER WHT
$108.00
W0039639 BASEPLATE
W0039640 PANEL UPPER
W0039686 PANEL CHASSIS TOP
$27.50
W0039691 PANEL GRILL TOP SGWO ENAM BIOS
W0039800 PANEL SIDE LH
W0042640 CHANNEL FRONT SGWO RH NGD
W0042642 CHANNEL FRONT SGWO LH NGD
W0042768 PLUG DOME MDP16
W0043827 LIGHT INDICATOR RED
$14.90
W0046264 ELEMENT 1000W CLEAN HEAT
W0047143 INSULATOR HANDLE GLASS SIMPSON
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0052948 SPACER CONTROL PANEL BIOS
$6.00
W0053490 RACK GRILL INSERT
W0053502 RACK SIDE GRILL LH/RH
$40.00
W0054645 INSULATION OVEN CABINET
W0054663 INSULATION GRILL SGWO BIOS
W0054671 INSULATION OVEN REAR
$18.70
W0054974 OVEN ENAM FORM BOOST NGD
W0056173 GRILL BOX ENAM DEEP 600UP
W0056272 BRACE OVEN REAR BI BIOS
W0057755 SWITCH THERMAL CUT OUT 120 DEG
