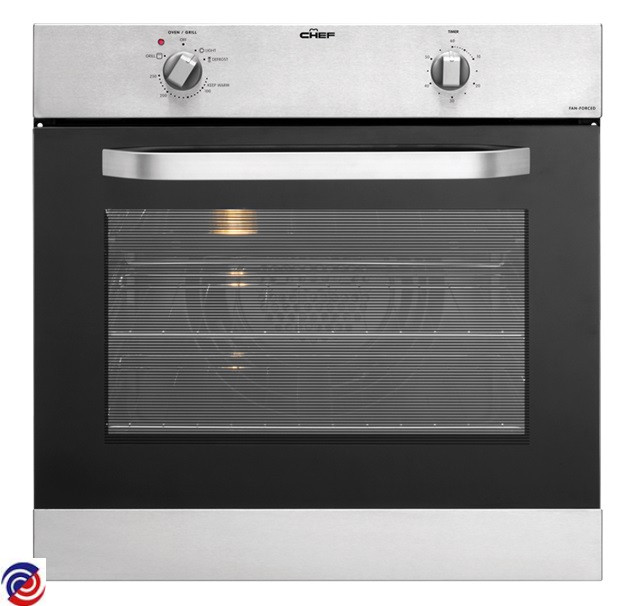

EOC627S — 944031484 13
CHEF — Cooker Electric
Parts for EOC627S
.JPG)
W0011297 BLADE FAN
W0011986 LIGHT IND REDLENS BLK 600MM
W0011995 NUT M6 LH FAN MOTOR
.JPG)
W0012255 ELEMENT GRILL 2200W SS321
W0012262 ELEMENT FAN RING 2200W
W0013577 SWITCH MULTI 4
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0013750 LENS INDICATOR LIGHT
$11.20
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0014032 SCREW #8 X 45 PAN QUADREX
.JPG)

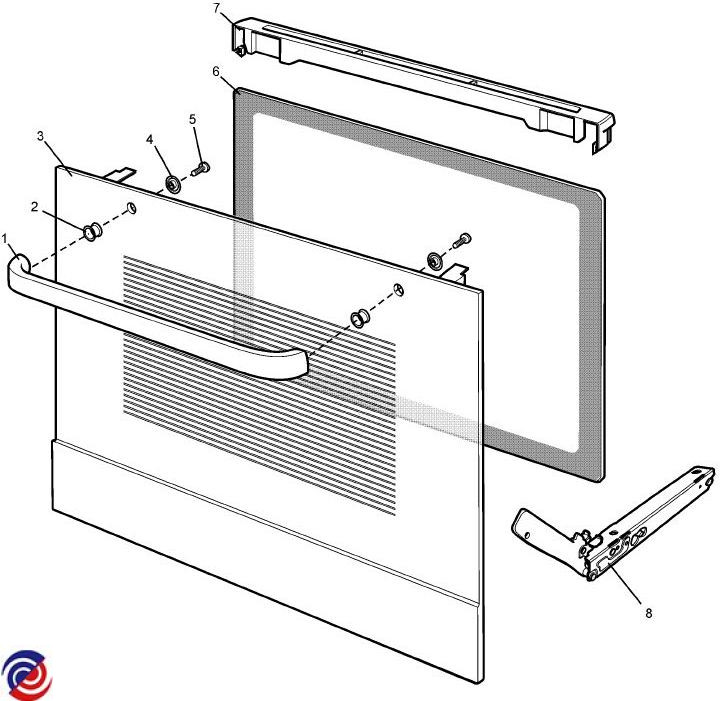

W0022966 HINGE DOOR
W0027342 GRILL DISH GIO ENAMEL
$105.45
.JPG)
W0046406 CLIP MOUNTING ELEMENT
.JPG)
W0050309 LAMP
_1.JPG)

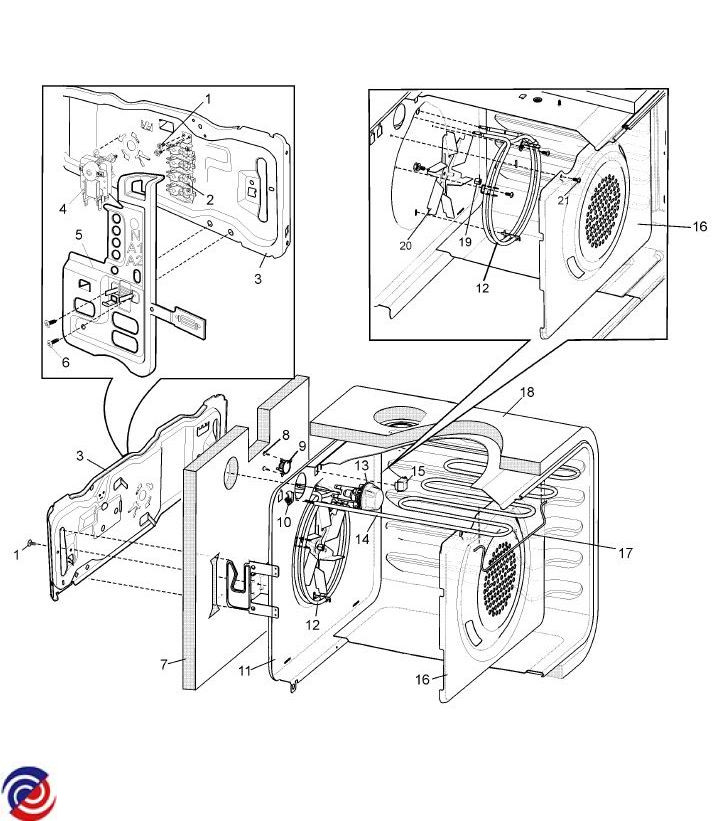

W0050403 MOTOR FAN OVEN
W0052258 DOOR OVEN INNER GLASS
.JPG)
W0052585 CANOPY FAN ASSY U/B NGD
.JPG)

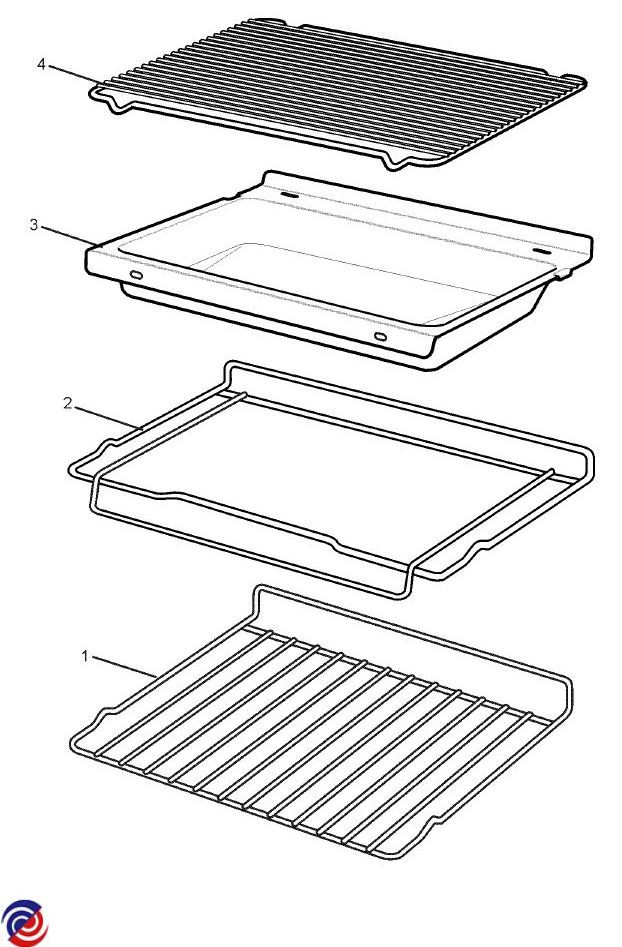

W0053487 SHELF OVEN 473 X 378MM
.JPG)
W0057771 THERMOSTAT OVEN
W0058493 TRIM DOOR UPPER VENTED
.JPG)
W0060746 TIMER 60MIN 360 ACTION PEAPSA
W0147339 SEAL OVEN MODULAR PROFILE
W0166032 LAMP 25W SES E14 300C CLEAR
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011260 PLATE MOUNTING SWITCH
$14.95
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011484 PANEL SIDE RH
$28.00
W0011485 PANEL SIDE LH
$27.50
W0011666 COVER FAN & ELEMENT
$95.75
W0011752 DOOR OVEN OUTER SS
W0011915 HANDLE DOOR CHEF SILVER NGD
$29.65
W0012083 FLUE OVEN VENT ELEC U/B NGD
$16.50
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012562 MOUNT CAP F/FRAME R/H NGD
$5.80
W0012563 MOUNT CAP F/FRAME L/H NGD
$7.55
W0012972 SPACER HANDLE GLS DR SOD BIOS
W0013260 SHIELD WIRING
$11.95
W0013625 FRAME CONTROL PANEL
W0013730 BUMPER STOP BLK
$6.55
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014021 SCREW #10 X 14.5 PAN PH 'Z' PT
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014079 BUSH MOUNT F/FRAME NGD
$7.25

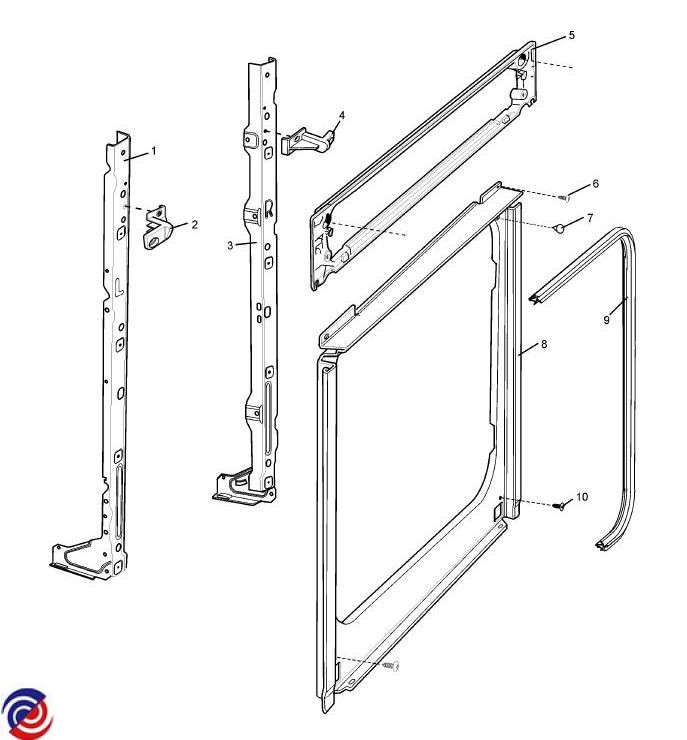

W0027190 FRAME FRONT PAINTED ELE UB NGP
$62.95
W0027330 KNOB CHEF STRONG SILVER NGD
W0036213 SUPPORT ELEMENT GRILL

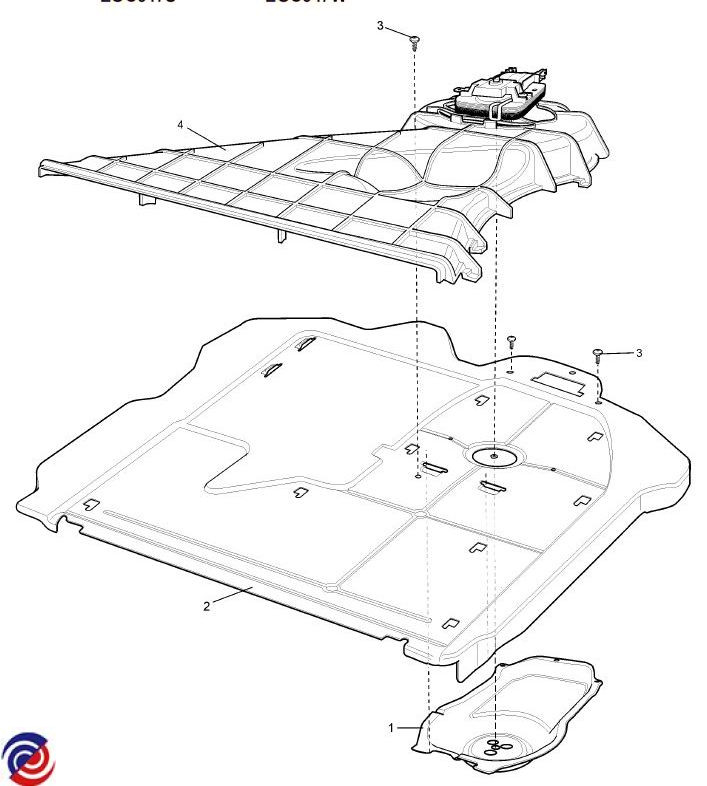

W0039639 BASEPLATE
W0039640 PANEL UPPER
W0039686 PANEL CHASSIS TOP
$27.50
W0039894 PANEL CABINET REAR
$27.50
W0040599 PANEL CONTROL & CLIPS EOC617S
$121.90
W0042653 CHANNEL FRONT NGP UB LH
W0042654 CHANNEL FRONT NGP UB RH
W0042768 PLUG DOME MDP16
W0047143 INSULATOR HANDLE GLASS SIMPSON
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0052948 SPACER CONTROL PANEL BIOS
$6.00
W0053490 RACK GRILL INSERT
W0054645 INSULATION OVEN CABINET
W0054668 INSULATION OVEN BACK 80 BIOS
W0056272 BRACE OVEN REAR BI BIOS
W0057755 SWITCH THERMAL CUT OUT 120 DEG
W0154014 RACK CARRIER GRILL DISH
