EBC5231W*32

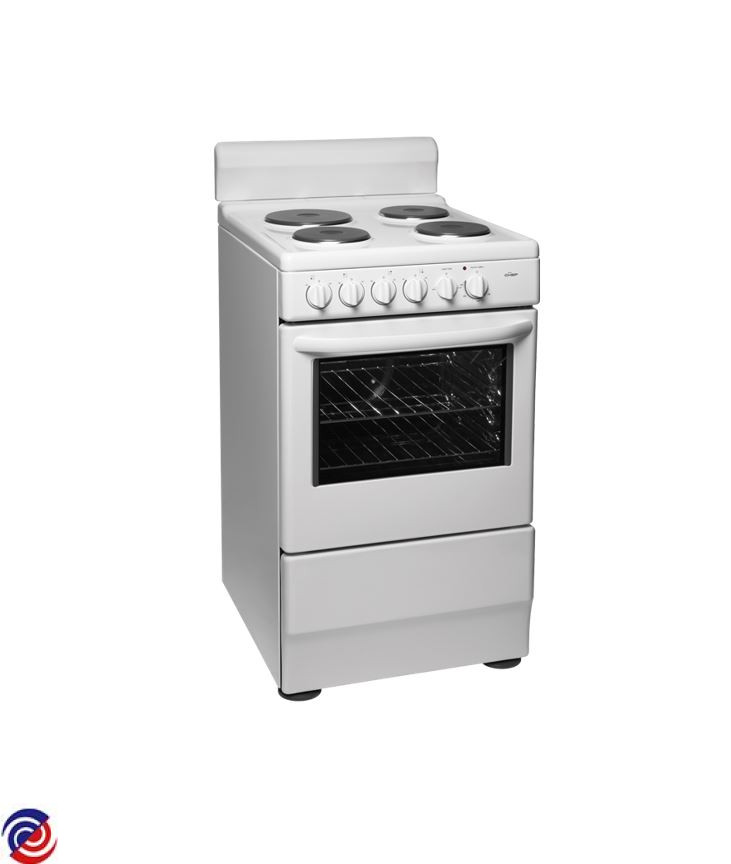

CHEF — Cooker Electric

Parts for EBC5231W*32

W0012254 ELEMENT C/HEAT 1800W SS321
W0012255 ELEMENT GRILL 2200W SS321
W0012259 ELEMENT EGO 2000W 180DIA (HI)
W0012260 ELEMENT EGO 1000W 145DIA (HI)
$96.00
W0013611 TRIM OV/DOOR AIRWASH
W0039452 DOOR OVEN INNER
W0046262 ELEMENT EGO 1500W 145DIA (HI)
W0046406 CLIP MOUNTING ELEMENT
W0046876 SUPPORT HINGE DOOR LH
W0046877 SUPPORT HINGE DOOR RH
W0052112 GLASS OUTER OV/DOOR A/W SCR
W0053487 SHELF OVEN 473 X 378MM
W0057166 CHEF SIMPSON WESTINGHOUSE COOKTOP CONTROL SWITCH MP101
W0057771 THERMOSTAT OVEN
W0062420 LIGHT INDICATOR INC LENS
W0100889 CLIP SPRING KNOB
$9.15
No image available
W0011114 TERMINAL BLOCK W/EARTH BIOS
No image available
W0011334 BRACKET ASSY ELEMENT 145MM
$12.60
No image available
W0011335 BRACKET ASSY ELEMENT 180MM
$18.00
No image available
W0011336 BRACKET INSULATION OVEN DOOR
No image available
W0011344 BRACKET STABILITY BOLT 540
$12.60
No image available
W0011993 NUT METRIC M10 X 0.75MM
$4.50
No image available
W0012166 WASHER LEAF SPRING 1/4
$4.00
No image available
W0012311 CLIP KICKPLATE PANEL
No image available
W0012315 CLIP THERMOSTAT BIOS
$9.00
No image available
W0012558 END CAP HANDLE WHT
No image available
W0012725 SEAL CLIP GLASS OV/DOOR
No image available
W0012824 GLASS OVEN DOOR INNER
No image available
W0013260 SHIELD WIRING
$11.95
No image available
W0013568 SWITCH MULTI 3
$44.90
No image available
W0013730 BUMPER STOP BLK
$6.55
No image available
W0013731 BUMPER STOP GREY
$5.05
No image available
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
No image available
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
No image available
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
No image available
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
No image available
W0035578 CLAMP GLASS DOOR
No image available
W0036213 SUPPORT ELEMENT GRILL
No image available
W0036928 KNOB CHEF ELEC WHITE 7801 UC01
No image available
W0037466 PLATE ANTI TILT ASSY 540
$22.00
No image available
W0038121 COVER CLEAN HEAT FULL GALV BIO
No image available
W0038745 BRACKET ANTI ROTATE SOLID UC20
No image available
W0039208 DISH GRILL ENAM 540 BIOS
No image available
W0039515 PANEL OUTER OV/DOOR ENAM A/W
No image available
W0039791 PANEL SIDE UPRIGHT BIOS MK2
No image available
W0039903 PANEL CABINET REAR (NO HOLE)
$28.00
No image available
W0040519 PNL CNT FRONT SCR GIO BIOS
No image available
W0040940 PANEL SPLASHBACK WHT PLAIN
No image available
W0041114 PANEL LOWER BRACE ASSY 540
No image available
W0041116 PANEL KICK GIO WHITE
No image available
W0042617 CHANNEL SPILL VENT 540 GIO
No image available
W0042919 HANDLE DOOR WHT
No image available
W0044565 F/FRAME ENAM 540 GIO BIOS
No image available
W0045532 BOLT STABILISING
No image available
W0047139 INSULATOR SPILL/SWITCH
No image available
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
No image available
W0050003 SEAL OVEN BIOS
No image available
W0052926 SPACER FOOT UC20
No image available
W0053490 RACK GRILL INSERT
No image available
W0053492 RACK GRILL DISH
No image available
W0054085 SHIELD WIRING HOB 540 GIO BIOS
No image available
W0054645 INSULATION OVEN CABINET
No image available
W0054646 INSULATION OVEN BACK BIOS
No image available
W0054948 OVEN ENAMEL FRM CONV N/L BIOS
No image available
W0056274 BRACE OVEN REAR 540 BIOS
No image available
W0056768 LEG LEVELLING
$18.90
No image available
W0056770 FOOT LEVELLING UPRIGHT
No image available
W0059833 DUCT GRILL 540 GIO ASSY
No image available
W0061892 HOB SOLID ENAMEL
No image available
W0064447 SCREW #10 X 11.5 PAN PH 'Z' P
No image available
W0064625 SCREW #8X20 TYP 17 PT TORX BLK
No image available
W0064868 WASHER 3/16 X 3/8 ALUM
No image available
W0065316 BUSHING SNAP BLK 22_2MM
No image available
W0065404 SCREW M5 X 16MM SS
No image available
W0065427 SCREW M5 X 9MM CSK (BLK ZC)
No image available
W0065458 NUT HEX M6
$4.50
