EBC5231W
CHEF — Cooker Electric

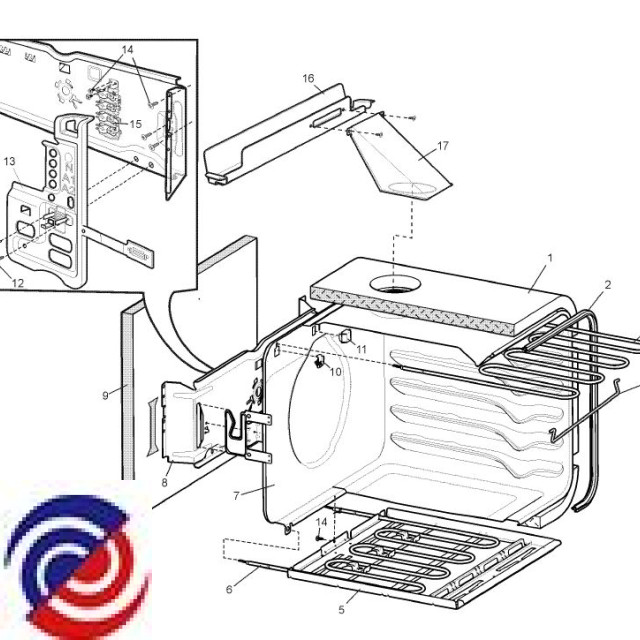

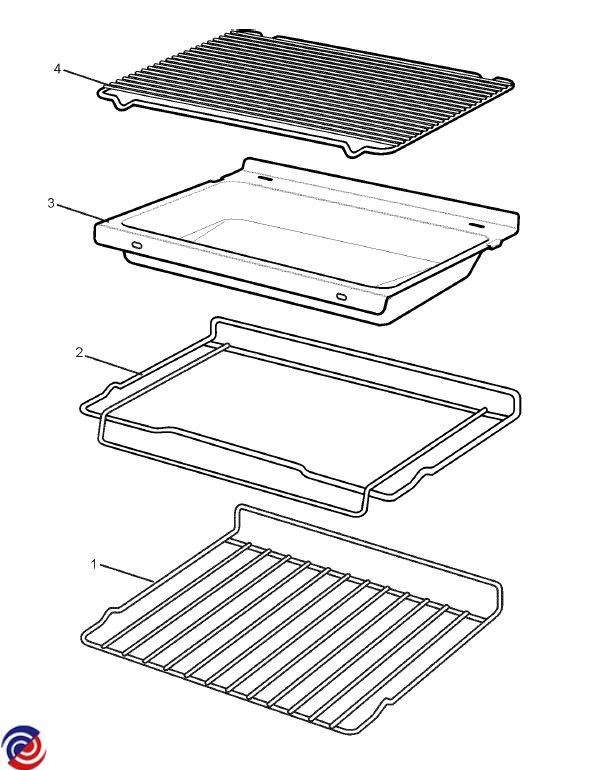

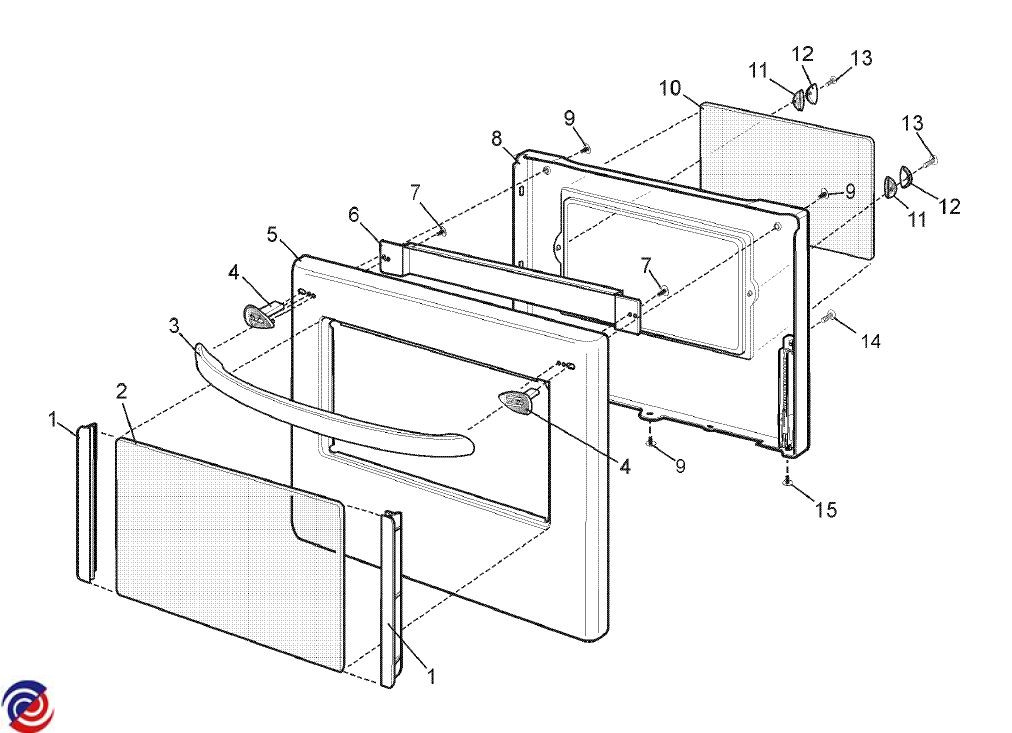

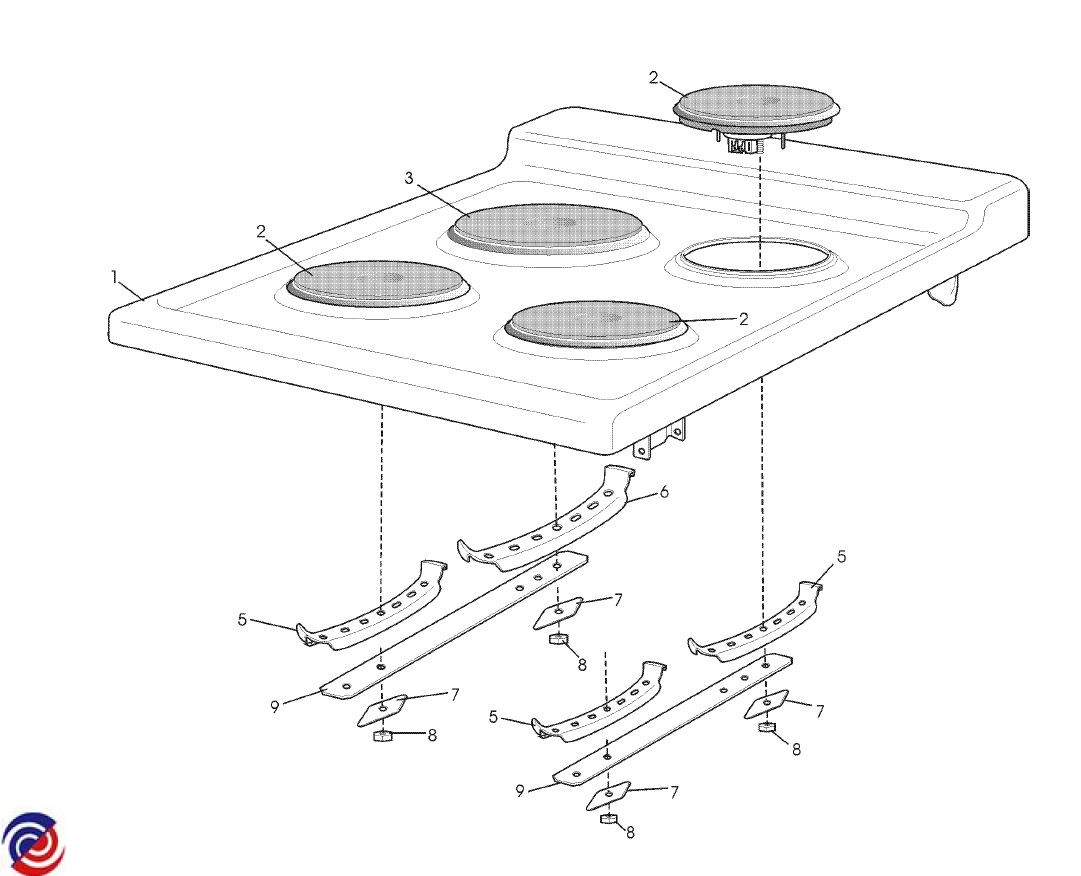

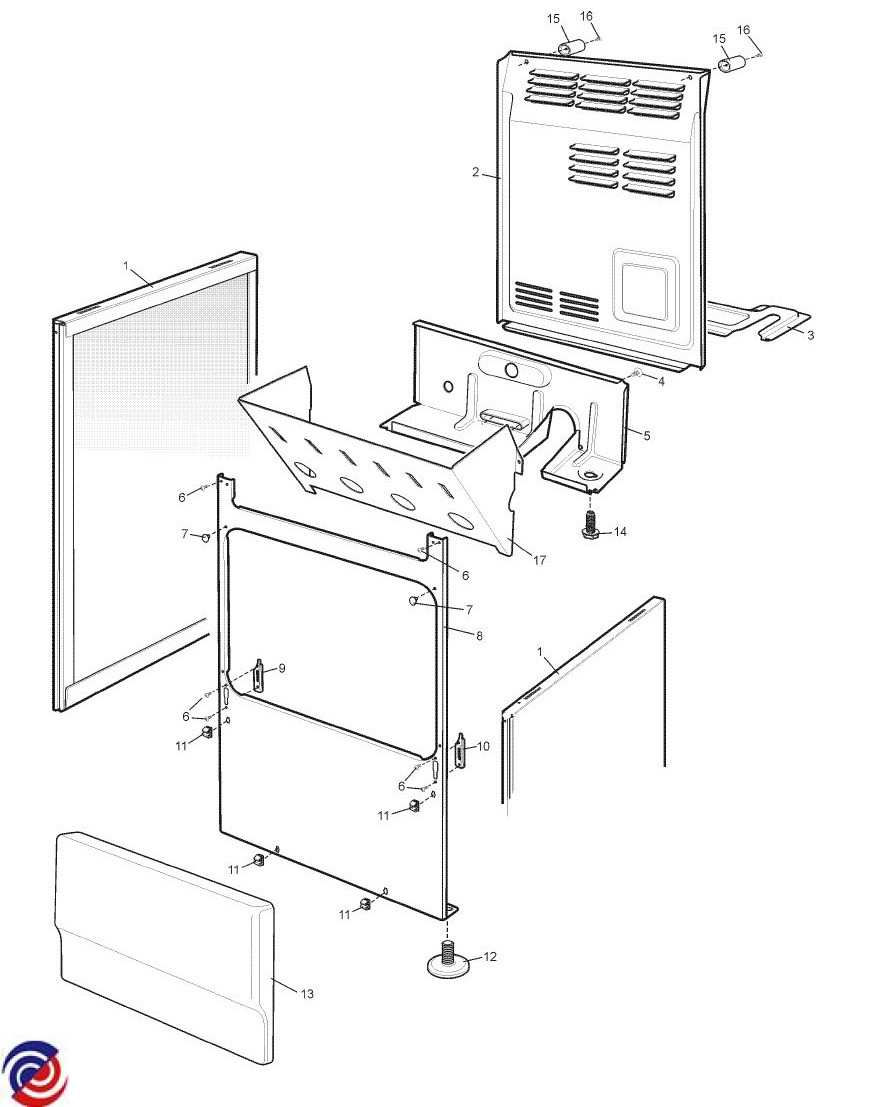

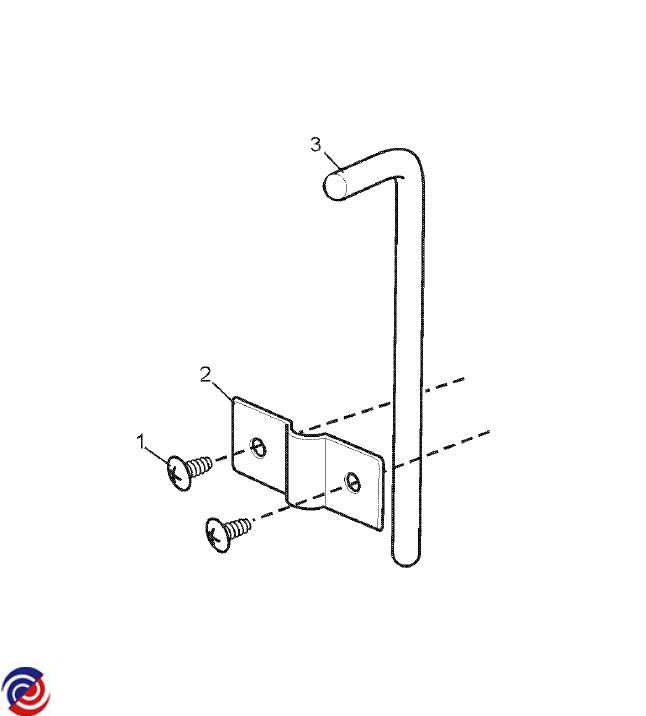

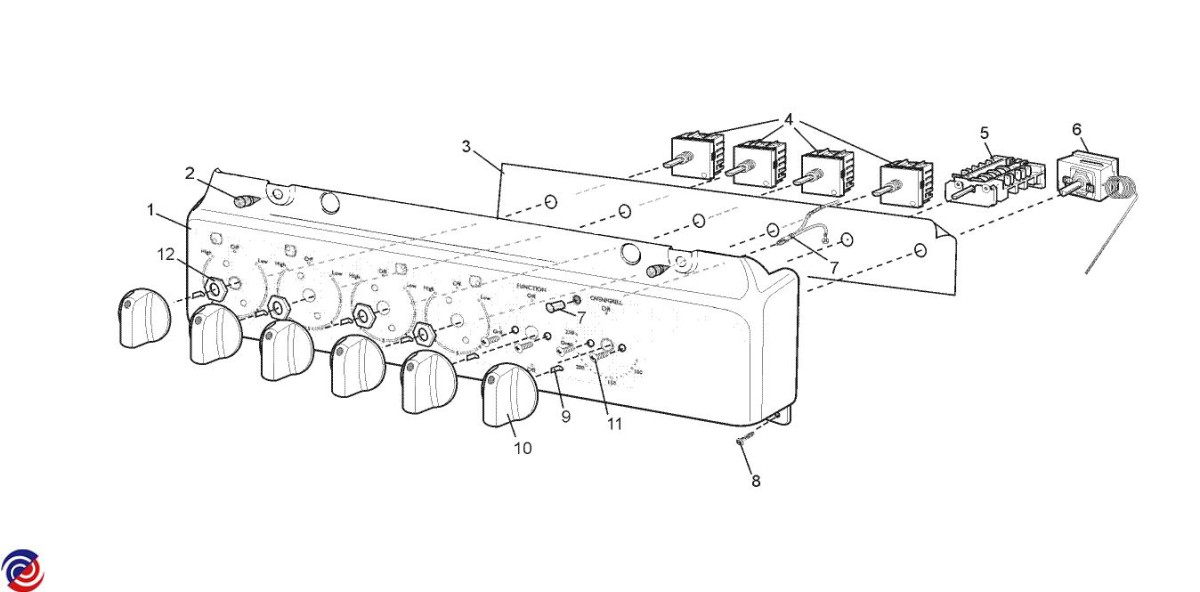

Parts for EBC5231W
W0012251 ELEMENT EGO L/PROF 2000W QC 8
W0012254 ELEMENT C/HEAT 1800W SS321
.JPG)
W0012255 ELEMENT GRILL 2200W SS321
W0013611 TRIM OV/DOOR AIRWASH
W0023241 HOLDER LAMP ASSY BIOS
W0036947 KNOB CONTROL WHT 7803
$22.10
.JPG)
W0039452 DOOR OVEN INNER
.JPG)
W0046206 ELEMENT EGO L/PROF 1500W QC 6
.JPG)
W0046406 CLIP MOUNTING ELEMENT
W0046876 SUPPORT HINGE DOOR LH
W0046877 SUPPORT HINGE DOOR RH
$18.30
W0050009 SEAL OVEN BIOS UNNOTCHED
W0052112 GLASS OUTER OV/DOOR A/W SCR
.JPG)
W0053487 SHELF OVEN 473 X 378MM
.JPG)
W0057166 CHEF SIMPSON WESTINGHOUSE COOKTOP CONTROL SWITCH MP101
.JPG)
W0057771 THERMOSTAT OVEN
W0062420 LIGHT INDICATOR INC LENS
W0100889 CLIP SPRING KNOB
$9.15
W0166032 LAMP 25W SES E14 300C CLEAR
$10.00
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011334 BRACKET ASSY ELEMENT 145MM
$12.60
W0011335 BRACKET ASSY ELEMENT 180MM
$18.00
W0011336 BRACKET INSULATION OVEN DOOR
W0011344 BRACKET STABILITY BOLT 540
$12.60
W0011993 NUT METRIC M10 X 0.75MM
$4.50
W0012166 WASHER LEAF SPRING 1/4
$4.00
W0012311 CLIP KICKPLATE PANEL
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012558 END CAP HANDLE WHT
W0012725 SEAL CLIP GLASS OV/DOOR
W0012824 GLASS OVEN DOOR INNER
W0013260 SHIELD WIRING
$11.95
W0013560 SWITCH GRILL/BAKE
W0013730 BUMPER STOP BLK
$6.55
W0013731 BUMPER STOP GREY
$5.05
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0035578 CLAMP GLASS DOOR
W0036213 SUPPORT ELEMENT GRILL
W0036839 KNOB CHEF ELEC WHT UC01
W0037466 PLATE ANTI TILT ASSY 540
$22.00
W0038116 COVER CLEAN HEAT BIOS
W0038745 BRACKET ANTI ROTATE SOLID UC20
W0039208 DISH GRILL ENAM 540 BIOS
W0039515 PANEL OUTER OV/DOOR ENAM A/W
W0039760 PANEL SIDE U/R
W0039903 PANEL CABINET REAR (NO HOLE)
$28.00
W0040519 PNL CNT FRONT SCR GIO BIOS
W0040940 PANEL SPLASHBACK WHT PLAIN
W0041114 PANEL LOWER BRACE ASSY 540
W0041116 PANEL KICK GIO WHITE
W0042617 CHANNEL SPILL VENT 540 GIO
W0042919 HANDLE DOOR WHT
W0044565 F/FRAME ENAM 540 GIO BIOS
W0045532 BOLT STABILISING
W0047139 INSULATOR SPILL/SWITCH
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0050003 SEAL OVEN BIOS
W0052926 SPACER FOOT UC20
W0053490 RACK GRILL INSERT
W0053492 RACK GRILL DISH
W0054085 SHIELD WIRING HOB 540 GIO BIOS
W0054645 INSULATION OVEN CABINET
W0054646 INSULATION OVEN BACK BIOS
W0054948 OVEN ENAMEL FRM CONV N/L BIOS
W0056274 BRACE OVEN REAR 540 BIOS
W0056768 LEG LEVELLING
$18.90
W0056770 FOOT LEVELLING UPRIGHT
W0059833 DUCT GRILL 540 GIO ASSY
W0061893 HOB ENAM SOLID GIO FLAT UC20
W0064447 SCREW #10 X 11.5 PAN PH 'Z' P
W0064625 SCREW #8X20 TYP 17 PT TORX BLK
W0064868 WASHER 3/16 X 3/8 ALUM
W0065316 BUSHING SNAP BLK 22_2MM
W0065404 SCREW M5 X 16MM SS
W0065427 SCREW M5 X 9MM CSK (BLK ZC)
W0065458 NUT HEX M6
$4.50
