CVEP604SA — 944031751 00
CHEF — Cooker Electric

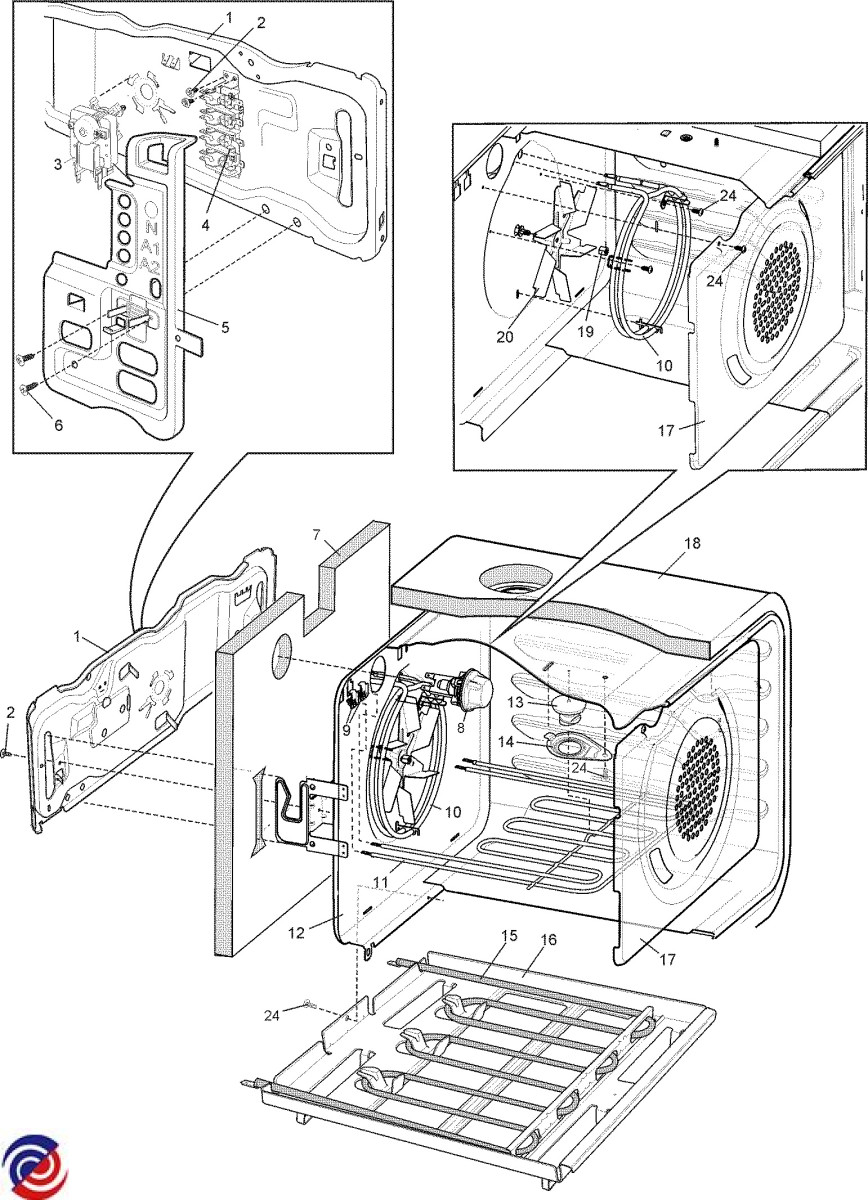

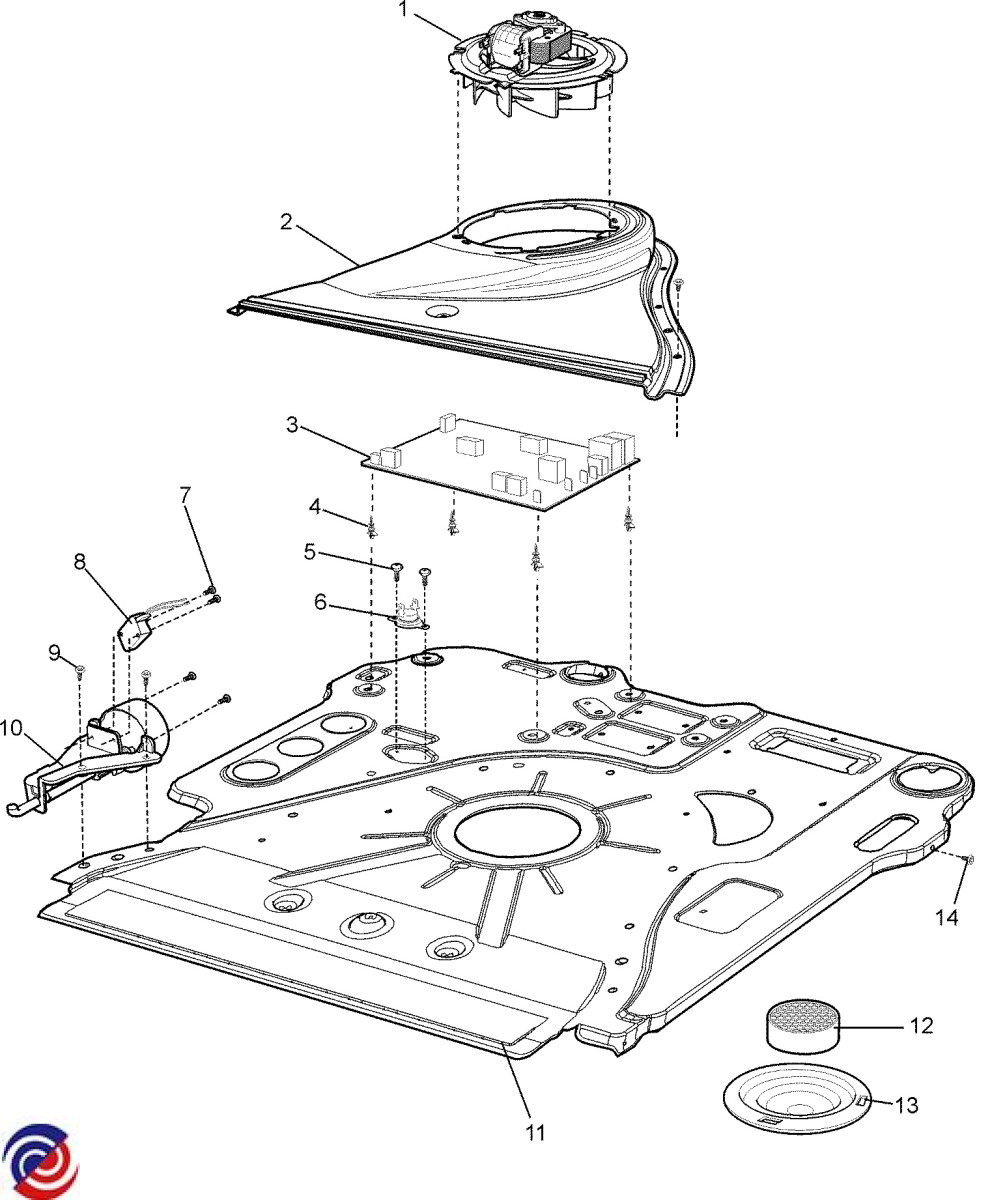

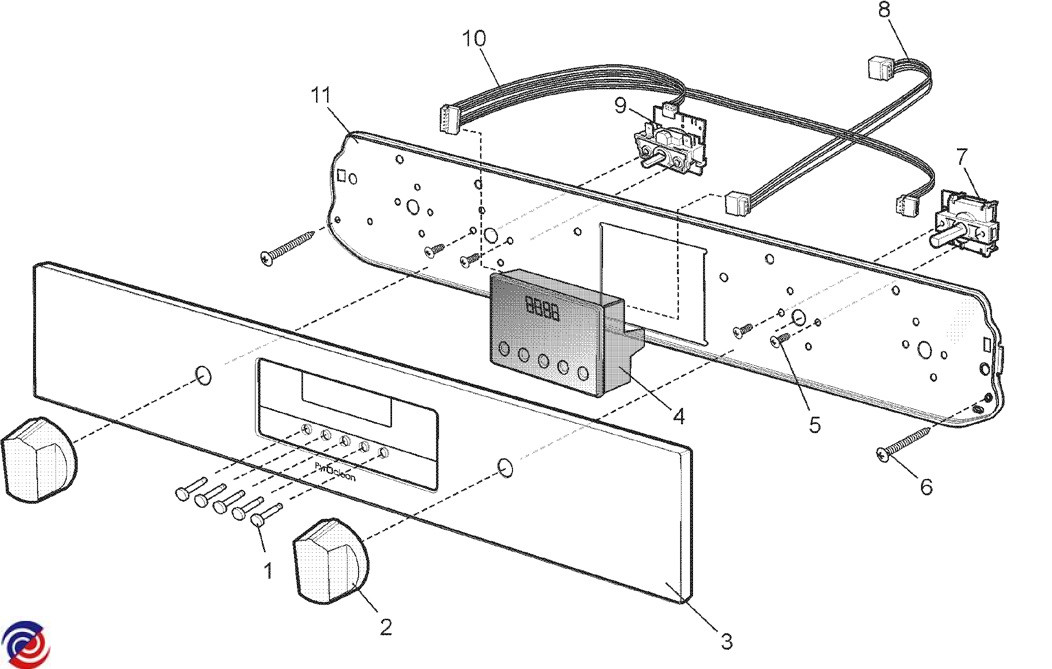

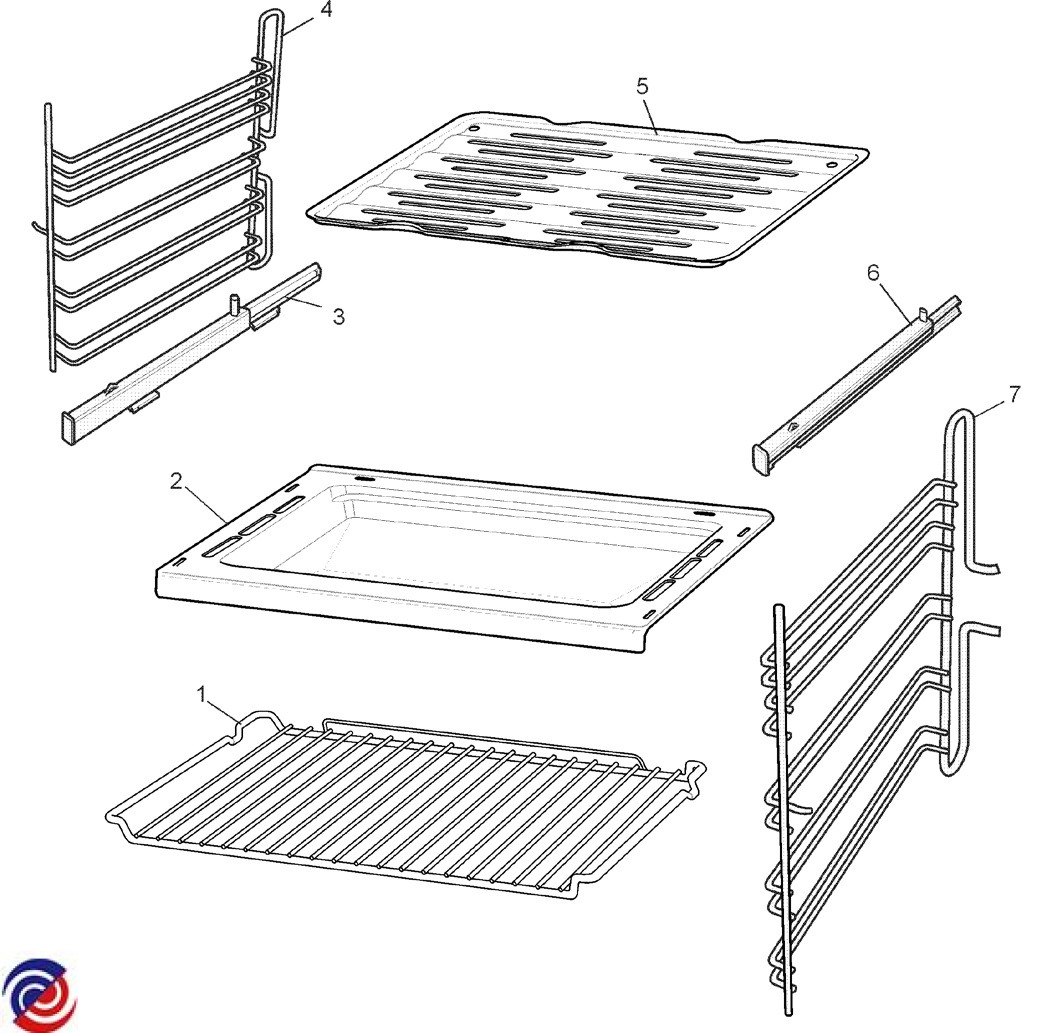

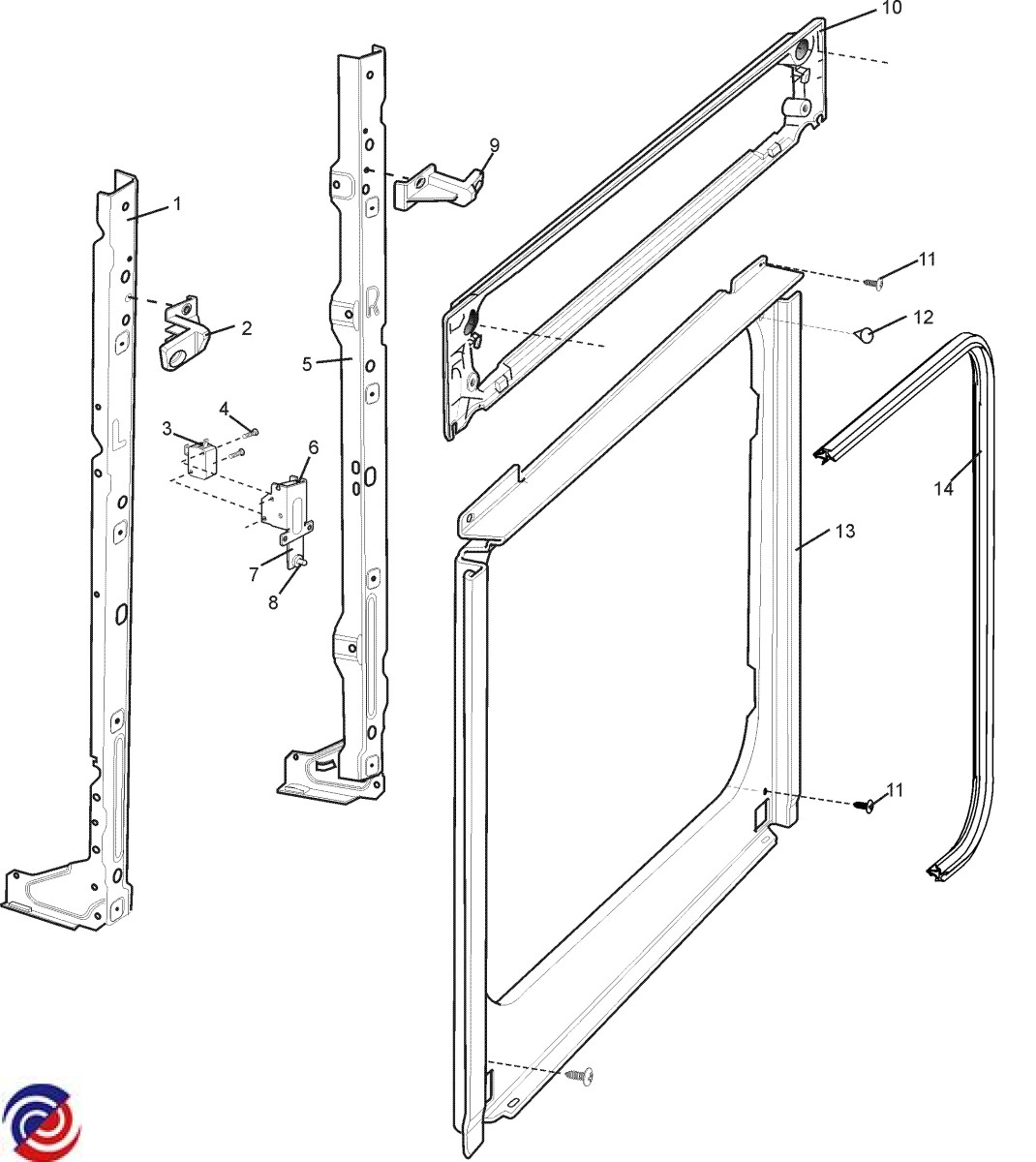

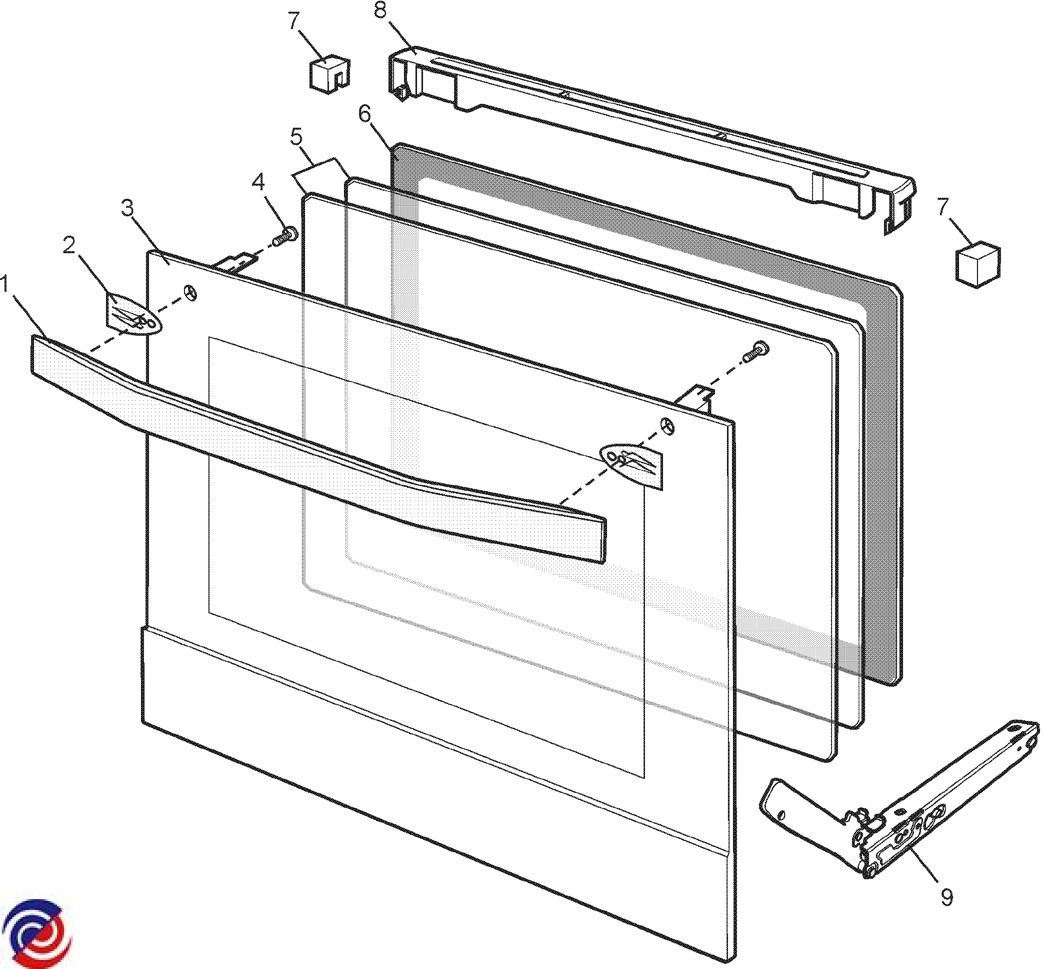

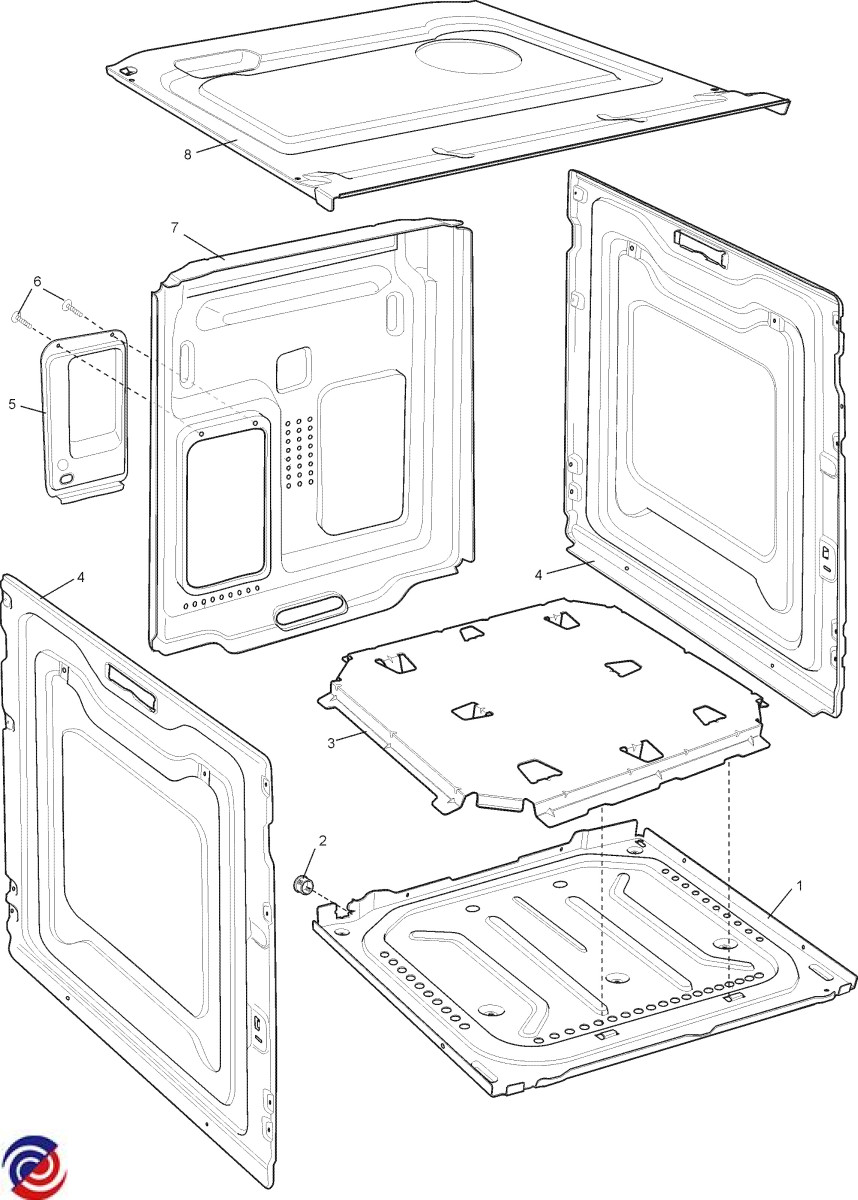

Parts for CVEP604SA
.JPG)
W0011297 BLADE FAN
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011995 NUT M6 LH FAN MOTOR
W0012261 ELEMENT G/BOOST 3000W - PYRO
W0012262 ELEMENT FAN RING 2200W
W0012263 ELEMENT C/HEAT 1800W NO EARTH
$95.00
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0013450 LOCK DOOR ASSY CAST PYRO NGP
.JPG)
W0013597 THERMAL CUTOUT 120 DEG N/C 16A
W0013629 TRIM VENT DOOR ASSY NGP UB
$53.20
W0013703 BUTTON CLCK S/S 3-B FORT
W0023144 POWERBOARD OVC3000 - EOS
$271.70
W0023201 HOLDER LAMP REAR HALOGEN BIOS
W0029326 HINGE 40MM 4 LAYER NGP
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011262 PLATE MOUNTING SWITCH
$14.90
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011293 SLIDE OVEN HETTICH LHS
W0011294 SLIDE OVEN HETTICH RHS
W0011321 COVER BASE PANEL SHIELD BIOS
$29.70
W0011345 BRACKET KRONOS PROBE MOUNT BIO
$12.60
W0011356 BRACKET DOOR SWITCH NGD
$14.50
W0011368 BRACKET HINGE SUPT APOLLO
$22.90
W0011479 PANEL TOP PYRO NGP
$43.20
W0011515 PANEL COVER WIRE UB 40MM
$24.20
W0011666 COVER FAN & ELEMENT
$95.75
W0011857 SUPPORT ELEMENT
$12.80
W0011882 CHANNEL FRONT NGP UB RH
$16.90
W0012034 F/FRONT ENAM 40MM PYRO UB
$86.00
W0012325 RETAINER PYRO CATALYSE NGP
$11.30
W0012636 HARNESS OVC3000 USER INT-F
$17.65
W0012637 HARNESS HEXAGON CTRL INPUT
$5.15
W0012639 SENSOR CABLE - 500MM
W0012648 WIRE HARNESS NGP DOOR SW
W0012726 SEAL OVEN DOOR PYRO BIOS
W0012863 GLASS OVEN DOOR INNER PYRO NGP
W0012864 GLASS OVEN DOOR MID PYRO NGP
W0012997 SPACER RUBBER GLASS NGP
$8.15
W0013260 SHIELD WIRING
$11.95
W0013343 INSULATION OVEN BACK PYRO BIOS
W0013344 INSULATION OVEN WRAP PYRO NGP
W0013345 INSULATN INSERT BACK PYRO BIOS
$14.30
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013570 LEVER SWITCH DOOR LIGHT MICRO
$42.95
W0013630 TRIM SURROUND C/P 40MM NGP
W0013666 DUCT PLATE TOP PYRO NGP
$14.85
W0013667 DUCT PLATE BOTTOM PYRO NGP
W0013668 DUCT PLATE MID PYRO UB NGP
$18.00
W0013730 BUMPER STOP BLK
$6.55
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014031 SCREW #8 X 3/8 MUSH #2PH TC BK
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014036 SCREW #8 X 50 PAN #2PH
$4.50
W0022980 SHUTTLE +/-
$10.90
W0023234 SWITCH 0 +7 POSITION
$48.60
W0026349 HOUSING CENTRERING HELP
W0027300 COOLING FAN MOTOR ASSEMBLY
W0027397 HARNESS ADAPTOR DOOR LOCK OVC3
$15.95
W0029631 CAP MOUNT F/FRAME 40MM RUBY LH
$4.50
W0029632 CAP MOUNT F/FRAME 40MM RUBY RH
$17.00
W0029801 PLUNGER DOOR SWITCH NGD
$7.05
W0029921 KNOB CHEF SELECT STRONG SILVER
W0030166 PANEL BASE BIOS 0.5MM
W0030364 PANEL CONTRL & CLIPS CVEP614SA
$206.05
W0030366 PANEL OV DR OUT ASSY CHEF PYRO
W0030374 CONTROLLER HEXAGON RED PYRO
W0030457 PANEL SIDE UB BIOS RH
$49.15
W0030458 PANEL SIDE UB BIOS LH
$49.15
W0030478 PAD HANDLE DOOR CHEF SELECT
W0030548 SCREW 4.5X16 TRILOB PAN T20
$4.50
W0030605 HANDLE DOOR PYRO CHEF SILVER
$50.00
W0038118 COVER RETAINING LATCH
$10.95
W0038121 COVER CLEAN HEAT FULL GALV BIO
W0042653 CHANNEL FRONT NGP UB LH
W0042768 PLUG DOME MDP16
W0046499 SLEEVE CLOCK BUTTON EOEM61AS
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0053490 RACK GRILL INSERT
W0063371 CLIP STANDOFF POWERBOARD
W0064627 SCREW #4 X16 T25 W/HD PHIL#2
W0103157 SWITCH DOOR LIGHT MICRO
W0105875 FILTER CATALYST
W0114491 SWITCH CHERRY
$47.90
W0114700 SENSOR TEMPERATURE PT500
W0154104 RACK SIDE OVEN ELUX LH
W0154105 RACK SIDE OVEN ELUX RH
W0284436 RACK PACK CHEF SELECT PYRO GG
W0284482 RACK PACK CHEF + SINGLE SLIDE
$105.00
