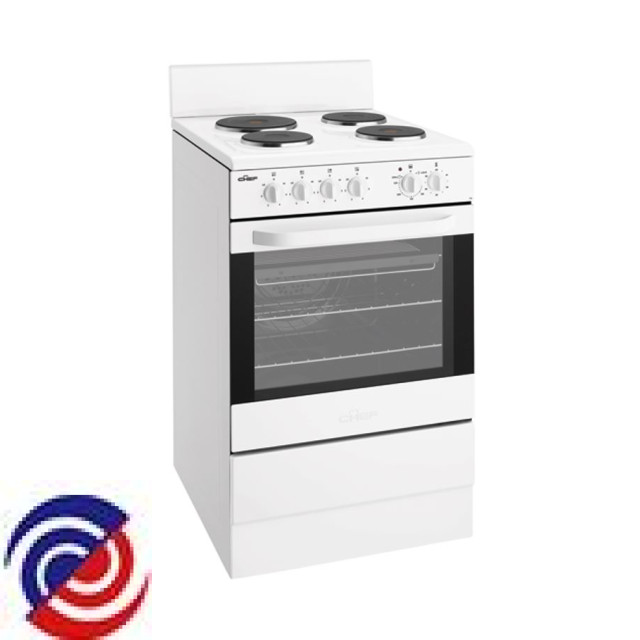

CFE536WA — 940001791 22
CHEF — Cooker Electric

W0011297 BLADE FAN

W0011995 NUT M6 LH FAN MOTOR

W0012255 ELEMENT GRILL 2200W SS321

W0012259 ELEMENT EGO 2000W 180DIA (HI)

W0012260 ELEMENT EGO 1000W 145DIA (HI)

$96.00

W0012262 ELEMENT FAN RING 2200W

W0012990 SPACER HANDLE BLK FRESCO

$10.25

W0013577 SWITCH MULTI 4

W0013596 SWITCH THERMAL CUT OUT 190 DEG

W0013627 TRIM DOOR UPPER VENTED

W0022807 HINGE DOOR OVEN

W0023201 HOLDER LAMP REAR HALOGEN BIOS

W0027342 GRILL DISH GIO ENAMEL

$105.45

W0032275 LAMP 25W 240V G9 PYRO HALOPIN

W0036960 KNOB CONTROL WHT

W0046262 ELEMENT EGO 1500W 145DIA (HI)

W0046406 CLIP MOUNTING ELEMENT

W0050403 MOTOR FAN OVEN

W0053487 SHELF OVEN 473 X 378MM

W0057771 THERMOSTAT OVEN

W0060755 TIMER 60 MINUTE WESTLAKE

W0147339 SEAL OVEN MODULAR PROFILE

W0011114 TERMINAL BLOCK W/EARTH BIOS

W0011334 BRACKET ASSY ELEMENT 145MM

$12.60

W0011335 BRACKET ASSY ELEMENT 180MM

$18.00

W0011366 BRACKET HOB SUPPORT FRESCO

$9.90

W0011367 BRACKET COUNTER WEIGHT FRESCO

$6.60

W0011513 PANEL SIDE WHITE FRESCO

$89.30

W0011587 PANEL CONTROL SCREEN CFE536WA

$121.90

W0011666 COVER FAN & ELEMENT

$95.75

W0011687 PANEL KICK

$77.00

W0011693 PANEL SPLASHBACK 540 WHT FRESC

W0011873 CHANNEL SPILL VENT 540 GIO

$22.00

W0012127 BLOCK COUNTERWEIGHT FRESCO

$9.90

W0012166 WASHER LEAF SPRING 1/4

$4.00

W0012315 CLIP THERMOSTAT BIOS

$9.00

W0012417 SUPPORT COUNTER FRESCO

$7.05

W0012853 GLASS OV DR IN REFL FRESCO

W0013260 SHIELD WIRING

$11.95

W0013460 BRACE OVEN REAR 540 BIOS

$27.50

W0013663 DUCT OVEN WELDED 540 GIO ELEC

W0013768 HOB SOLID ENAMEL

$224.90

W0014019 SCREW #6X3.5X28 HILO PAN PH

$4.50

W0014022 SCREW #10-16X5/8 PAN PH2 BLK

$4.50

W0014026 SCREW #8 X 5/16 CSK #2PH AB BK

$4.50

W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK

W0014030 SCREW #8 X 8MM HEX/MULTI

$4.50

W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK

$4.50

W0021318 SCREW M4X5 PHIL HZ

W0021772 PLATE MTG SWITCH MULTI 7 FRESC

$14.30

W0022171 FOOT LEVELING

$16.35

W0027188 F/FRONT PAINT 540 GIO FRESCO

$68.20

W0029350 540 LOWER REAR BRACE

$12.60

W0029662 ANTI TILT PLATE

$15.65

W0030107 PNL OUT OV DR ASS 540 CHEF WHT

$78.90

W0030575 HARNESS EGO 7 POS - LH

$19.60

W0030576 HARNESS EGO 7 POS - RH

$19.60

W0036213 SUPPORT ELEMENT GRILL

W0037481 PLATE CVR TERM GAS 540 BIOS

W0038745 BRACKET ANTI ROTATE SOLID UC20

W0039903 PANEL CABINET REAR (NO HOLE)

$28.00

W0042967 HANDLE DOOR CHEF NAT FRESCO

W0045532 BOLT STABILISING

W0048099 END CAP CONTROL PANEL FRESCO L

W0048100 END CAP CONTROL PANEL FRESCO R

W0052926 SPACER FOOT UC20

W0053490 RACK GRILL INSERT

W0054085 SHIELD WIRING HOB 540 GIO BIOS

W0054645 INSULATION OVEN CABINET

W0054671 INSULATION OVEN REAR

$18.70

W0056768 LEG LEVELLING

$18.90

W0065458 NUT HEX M6

$4.50

W0109724 COLOUR INSERT SIGNAL LAMP RED

W0109832 INDICATOR LIGHT NEON FRESCO

W0114312 SWITCH 7 POSITION

W0154014 RACK CARRIER GRILL DISH
