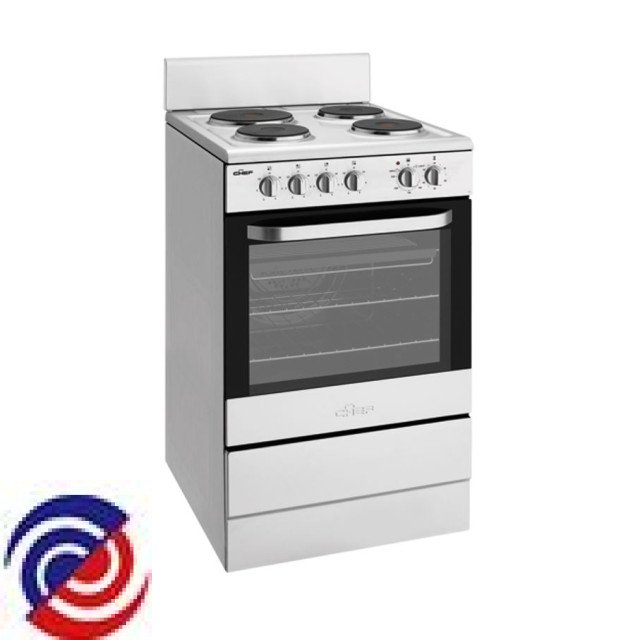

CFE536SA — 940001792 03
CHEF — Cooker Electric

W0011297 BLADE FAN

W0011455 DOOR OVEN OUTER SS

$125.05

W0011995 NUT M6 LH FAN MOTOR

$4.50

W0012255 ELEMENT GRILL 2200W SS321

W0012259 ELEMENT EGO 2000W 180DIA (HI)

$88.00

W0012260 ELEMENT EGO 1000W 145DIA (HI)

$91.05

W0012262 ELEMENT FAN RING 2200W

W0013556 SWITCH GANG 7 POSITION EGO

W0013577 SWITCH MULTI 4

$41.45

W0013596 SWITCH THERMAL CUT OUT 190 DEG

W0013627 TRIM DOOR UPPER VENTED

W0013750 LENS INDICATOR LIGHT

$11.20

W0013858 KIT INDICATOR LIGHT FRESCO

$13.40

W0014032 SCREW #8 X 45 PAN QUADREX

$4.00

W0022807 HINGE DOOR OVEN

W0046262 ELEMENT EGO 1500W 145DIA (HI)

W0046406 CLIP MOUNTING ELEMENT

W0050309 LAMP

W0050403 MOTOR FAN OVEN

W0053487 SHELF OVEN 473 X 378MM

W0057771 THERMOSTAT OVEN

W0060746 TIMER 60MIN 360 ACTION PEAPSA

W0166032 LAMP 25W SES E14 300C CLEAR

$10.20

W0011114 TERMINAL BLOCK W/EARTH BIOS

W0011334 BRACKET ASSY ELEMENT 145MM

$12.60

W0011335 BRACKET ASSY ELEMENT 180MM

$18.00

W0011366 BRACKET HOB SUPPORT FRESCO

$9.90

W0011367 BRACKET COUNTER WEIGHT FRESCO

$6.60

W0011514 PANEL SIDE SS VINYL FRESCO

$125.30

W0011573 PANEL CONTROL SCREEN CFE536SA

$140.95

W0011666 COVER FAN & ELEMENT

$95.75

W0011688 PANEL KICK

$110.65

W0011690 PANEL SPLASHBACK 540 SS FRESCO

$105.00

W0011873 CHANNEL SPILL VENT 540 GIO

$22.00

W0011920 HANDLE DOOR CHEF S/S FRESCO

$78.90

W0011994 NUT METRIC M12 X 1.00

$32.90

W0012127 BLOCK COUNTERWEIGHT FRESCO

$9.90

W0012166 WASHER LEAF SPRING 1/4

$4.00

W0012315 CLIP THERMOSTAT BIOS

$9.00

W0012417 SUPPORT COUNTER FRESCO

$7.05

W0012629 HARNESS 7 POS SW UR540 200MM

$17.15

W0012630 HARNESS 7 POS SW UR540 270MM

$18.00

W0012641 HARNESS 7 POS SW 710MM FRESCO

$18.00

W0012853 GLASS OV DR IN REFL FRESCO

W0012986 INSULATOR HANDLE CHEF NGD

$10.20

W0012989 SPACER HANDLE SS FRESCO

$10.20

W0013260 SHIELD WIRING

$11.95

W0013460 BRACE OVEN REAR 540 BIOS

$27.50

W0013664 DUCT OVEN WELDED 540 GIO GAS

W0014018 SCREW #6 X 9.5MM PAN PHIL ZC

$4.50

W0014019 SCREW #6X3.5X28 HILO PAN PH

$4.50

W0014022 SCREW #10-16X5/8 PAN PH2 BLK

$4.50

W0014026 SCREW #8 X 5/16 CSK #2PH AB BK

$4.50

W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK

W0014030 SCREW #8 X 8MM HEX/MULTI

$4.50

W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK

$4.50

W0014041 SCREW #8 x1/2 PH2 MUSH WASHER

$4.50

W0036213 SUPPORT ELEMENT GRILL

W0036952 KNOB CHEF SILVER FRESCO

W0037466 PLATE ANTI TILT ASSY 540

$22.00

W0037481 PLATE CVR TERM GAS 540 BIOS

W0037493 PLT MTG SWTCH MULTI 7 SGO FRES

W0038745 BRACKET ANTI ROTATE SOLID UC20

W0039208 DISH GRILL ENAM 540 BIOS

W0039903 PANEL CABINET REAR (NO HOLE)

$28.00

W0041114 PANEL LOWER BRACE ASSY 540

W0044630 F/FRONT PAINT 540 GIO FRESCO

W0045532 BOLT STABILISING

W0047469 SCREW M4 X 5 PAN #2 PH SML HD

$4.50

W0048105 ENDCAP C/PANEL FRESCO S/S LHS

W0048106 ENDCAP C/PANEL FRESCO S/S RHS

W0048312 HARNESS 7 POS SW 540MM FRESCO

W0052926 SPACER FOOT UC20

W0053490 RACK GRILL INSERT

W0053492 RACK GRILL DISH

W0054085 SHIELD WIRING HOB 540 GIO BIOS

W0054645 INSULATION OVEN CABINET

W0054671 INSULATION OVEN REAR

$18.70

W0056768 LEG LEVELLING

$18.90

W0056772 LEG LEVELLING 600UR MK2

$18.90

W0062090 HOB 540F S/S SOLID FRESCO

W0065458 NUT HEX M6

$4.50
