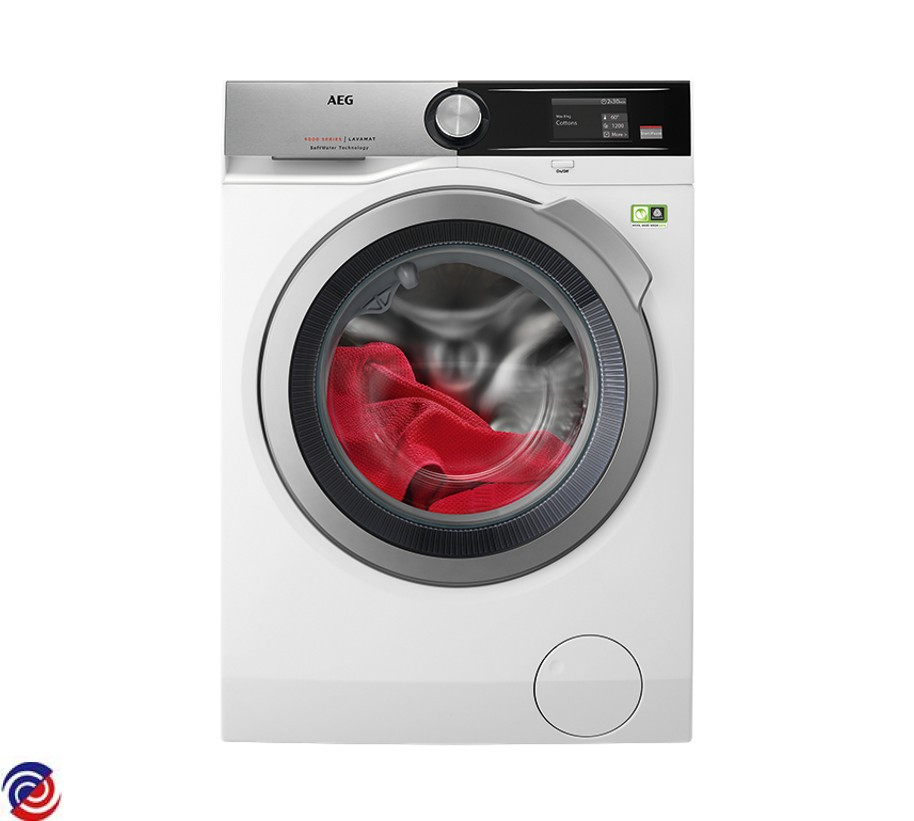

LF9A1612AC — 914550948 00
AEG — Washing Machine
Parts for LF9A1612AC
W0017178 RECIRCULATION HOSE, INTAKE
$37.00
W0017188 AEG ELECTROLUX FRONT LOADER WASHING MACHINE DRAIN HOSE ASSY L=2540MM
$68.00
W0075952 BELT DRIVE
W0274401 AEG FRONT LOAD WASHING MACHINE DOOR GASKET
$99.00
W0274454 AEG FRONT LOADER WASHER AQUASTOP CONTROL INLET HOSE & HOOK
W0274504 DOOR LOCK FILTER PUMP BODY
$21.00
W0274532 SPRING BUTTON ON/OFF
$4.80
W0373334 PUMP DRAIN ASKOLL
$77.00
W0016928 LEG ASSY
$18.90
W0016944 CAP REAR PANEL
$16.00
W0016977 SPACE COMPENSATOR, FIXING, PUM
$27.50
W0017027 CAP SUPPORT
$11.00
W0017057 TUBE, PRESSURE SWITCH
$17.00
W0017132 LAMP DRUM LIGHTING ASSY
$22.00
W0017153 BRACKET SHOCK ABSORBER LH
$8.75
W0017154 BRACKET SHOCK ABSORBER RH
$6.60
W0017170 HOSE CLAMP, DRAIN,BACK PANEL
$6.00
W0017200 SOUNDPROOFING BOTTOM SEAL
$116.00
W0023951 PULLEY, PLASTIC KIT
$48.00
W0026940 COVER INVERTER BOARD
$15.00
W0026992 TUBE RUBBER TWO PUMP SOLUTION
$53.00
W0027005 TUBE INTAKE TWO PUMP SOLUTION
$23.00
W0070003 CLAMP HOSE
W0074344 SCREW. MOTOR
$13.20
W0075936 CLAMP,DOMETO PUMP HOSE D=52.5
$18.00
W0075991 POWER CORD WITH PLUG
$34.00
W0076044 SEALING HOSE.CIRCULATION.RECIR
W0076136 SPRING BELLOW. TUB.G33
W0076222 PANEL, BACK, HIGH
$47.00
W0076224 CHAMBER AIR
W0274362 RECIRCULATION PUMP 2 PCE
$168.00
W0274364 RING LOCKING 3XL
$7.00
W0274365 HOSE, RECIRCULATION
$51.00
W0274531 BUTTON WHITE RECTANGULAR
$16.00
W0274535 KNOB SELECTOR CHROME
$49.00
W0275425 BOX HOUSING MAIN BRD
$24.85
W0282314 BOLT SHOCK ABSORBER
$9.00
W0282624 SPRING, TUB SUSPENSION
$9.00
W0282758 GUTTER DRAIN
W0282761 FILTER ASSEMBLY DIAPHRAGM
$21.00
W0282762 FRONT COVER PUMP BODY
$12.50
W0283145 HOSE VALVE INLET Ï10mm
$26.00
W0283146 HOSE VALVE INLET Ï12mm
$26.00
W0283178 PUMP BODY JET + CW COMPLETE
$33.00
W0283242 VALVE INLET 2 WAY FLOWMETER
$79.00
W0284152 FLOAT SWITCH
W0284201 SUPPORT HANDLE CONTROL PANEL
$26.00
W0284406 DRAWER DETERGEN/WATER SOFTENER
$111.00
W0284484 WORKTOP ASSY
$137.00
W0284666 WATER SOFTENER/DISPENSER ASSY
$520.05
W0361138 CONVEYOR DETERGENT DRAWER
$13.95
W0361146 CONTAINER CUP LIQUID DETERGENT
$10.45
W0361147 SYPHON ADDITIVES
$8.00
W0361160 Motor PPM 1133Hz 795W
$662.00
W0361303 COVER HINGE GREY WD
$5.50
W0361310 COVER DRAIN PUMP
$4.60
W0363895 HOSE FILLER & CLAMPS KIT
$8.55
W0363902 PANEL CONTROL HANDLE AEG
$373.00
W0363909 PANEL FRONT SOUND PROOF P-ONE
$194.90
W0364126 HOSE, DIVERTER, WATER SOFTENER
W0364135 DOOR FILTER PUMP BODY
$11.00
W0364138 BOX SELECTOR HOUSING
$19.00
W0364164 PCBA USER INTERFACE + SELECTOR
$604.00
W0364177 PCBA MOTOR CONTROL EMC18EVO PM
$336.85
W0364223 HEATING ELEMENT 230V 1950W
$76.00
W0364362 PCBA Main EWX14 LF9A1612AC
$273.00
W0364367 PCBA, NIUX WIFI BOARD
$340.00
W0365768 LOW FREQENCY ANALOG PRESSUR
W0368016 PEG, FRONT PANEL, CATCH
$4.00
W0368080 LOWER INTERNAL SPACE ASSY
$5.30
W0368207 HOOK OUTLET HOSE
$10.05
W0368913 DOOR ASSEMBLY WELDED GREY
$258.00
W0369060 CLAMP, HOSE CLAMP, .65.5MM
$4.00
W0369070 HARNESS, USER INTERFACE BOARD,
$31.55
W0369073 DRAIN TUB, G60
W0369076 HARNESS, VALVE, PCB, J7,960+87
W0369078 HARNESS, PRESSURE SWITCH, PCB,
$57.45
W0369140 SCREW, COUNTERWEIGHT, FRONT, 5
$6.75
W0369141 SCREW, COUNTERWEIGHT, TOP, 3PC
$11.40
W0369148 SHOCK ABSORBER, WITH PIN, 80N
$43.45
W0369149 SHOCK ABSORBER, WITH PIN, SENS
$117.00
W0369155 TRANSIT STRAPS, SCREWS, KIT
$21.00
W0369872 CLAMP, ELECTRIC VALVE, 16.26-1
$4.00
W0369873 CLAMP, HOSE CLAMP, 18.7-18.7MM
$4.00
W0369883 LEVER, DOOR LOCK, OPENING, 397
$5.50
W0369888 COVER, DOOR LOCK, LATCH
W0369900 HARNESS, DOOR SAFETY INTERLOCK
W0369902 HARNESS, HEATING ELEMENT, MAIN
$27.70
W0370053 HARNESS, MOTOR CONTROL, MAIN E
$17.90
W0370055 HARNESS, MOTOR CONTROL, MOTOR,
$23.00
W0370281 HARNESS, MOTOR CONTROL, MAIN E
$22.75
W0373653 PCBA MAIN EWX14931 FULL RAW
$172.00
W0374805 PIPE CLAPM 22,1MM
$4.00
W0374842 HOSE CLAMP ID=20.5
$4.40
W0374957 HARNESS, MAIN ELECTRONIC BOARD
$10.95
W0382545 CLUSTER WELDED ASSY
W0382547 LIFTERS
W0382700 DOOR LOCK
