LF7384O4C — 914501812 01

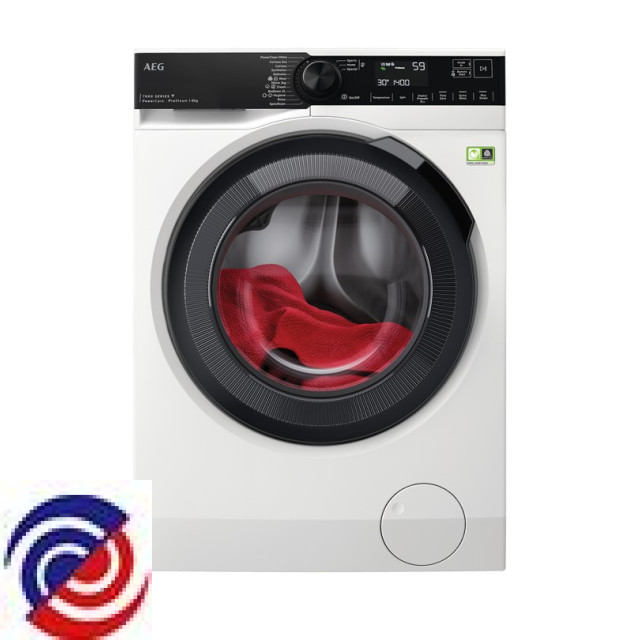

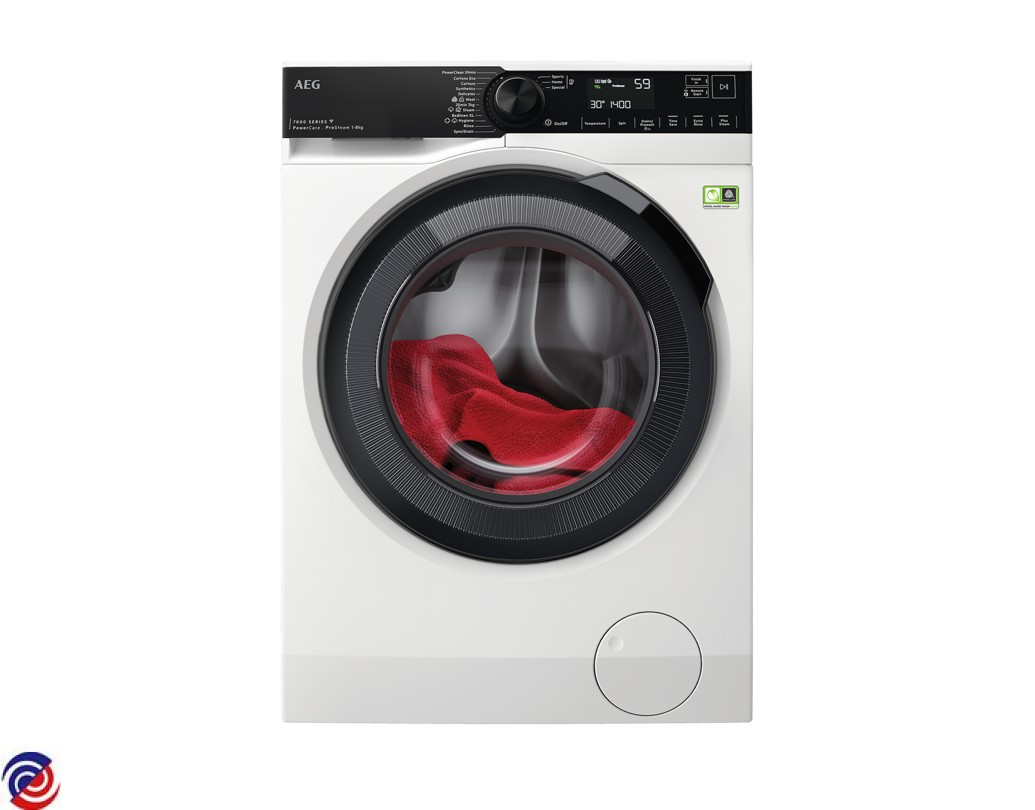

AEG — Washing Machine
Parts for LF7384O4C
W0016933 PIPE UNION, WATER DISTRIBUTOR, 3VIE
$50.00
W0016966 PUMP ASSY RECIRCULATION
$98.00
W0017173 SPRING, SUSPENSION, TUB
$18.00
W0017178 RECIRCULATION HOSE, INTAKE
$37.00
W0017188 DRAIN HOSE, ASSEMBLY, L=2540MM
$72.00
W0274400 RUBBER BELLOW,G60,3XL,JET,ONE
$175.00
W0274504 FILTER DOOR PUSH BUTTON
$23.00
W0368181 LATCH CATCH DOOR
$11.00
W0368445 POLI-V BELT
$50.00
W0368855 SENSOR PRESSURE ST-545 0-380MM
$24.00
.jpg)
W0375415 INLET HOSE, ANTIFLOODING DEVIC
$84.00
W0016928 LEG ASSY
$18.90
W0016944 CAP REAR PANEL
$16.00
W0016957 SCREW,4,9X15 TTL TORX
$13.20
W0016977 SPACE COMPENSATOR, FIXING, PUM
$27.50
W0016983 ELECTRIC VALVE,3-WAYS,FLOWMETER
$151.00
W0017027 CAP SUPPORT
$11.00
W0017057 TUBE, PRESSURE SWITCH
$17.00
W0017153 BRACKET SHOCK ABSORBER LH
$8.75
W0017154 BRACKET SHOCK ABSORBER RH
$6.60
W0017170 HOSE CLAMP, DRAIN,BACK PANEL
$6.00
W0017181 COUNTERWEIGHT, FRONT, 15.8KG G60 W35L
$81.00
W0026940 COVER, INVERTER, ELECTRONIC BOARD
$14.70
W0070003 CLAMP HOSE
W0074344 BOLT,ROLLER,5,5X38
$4.00
W0075936 CLAMP, HOSE CLAMP, Ø52.5MM
$22.30
W0076019 WATER DISTRIBUTOR
$47.00
W0076022 CONVEYOR. BOTTOM. HEC
W0076044 SEALING HOSE.CIRCULATION.RECIR
W0076136 SPRING BELLOW, TUB,G33
$26.00
W0076219 COUNTERWEIGHT, UPPER, 8.37KG G60
$52.90
W0076222 PANEL, BACK, HIGH
$47.00
W0076224 CHAMBER AIR
W0128341 KIT,PULLEY,PLASTIC
$86.00
W0274364 RING LOCKING 3XL
$8.00
W0274365 RECIRCULATION HOSE
$51.00
W0274367 WORKTOP ASSY
$126.00
W0274490 SYPHON,LIQUID DETERGENT,ONE
$7.00
W0275188 PUMP BODY,KIT,CW2.0,JET,ONE
$60.00
W0275425 BOX, MAIN ELECTRONIC BOARD, EWX13/EWX14
$24.80
W0282314 BOLT SHOCK ABSORBER
$9.00
W0282623 FLAP, PARTITION, DETERGENT DRAWER, ONE
$8.00
W0282758 GUTTER,DRAIN,DIAPHRAGM
$5.00
W0282761 FILTER ASSEMBLY DIAPHRAGM
$21.00
W0282762 FRONT COVER,PUMP BODY,DIAMOND
$12.05
W0361310 COVER DRAIN PUMP
$4.60
W0363895 DETERGENT FILL HOSE,KIT,CLAMP
$8.50
W0364135 DOOR,DIAPHRAGM,PUMP BODY
$11.00
W0364223 HEATING ELEMENT,WITH,SENSOR,23
$80.00
W0365697 MOTOR PM 40STK AL
$284.00
W0366331 WINDOW,GLASS,PORTHOLE, 376MM
$90.00
W0366765 RECIRCULATION PUMP,DETERGENT,T
$56.00
W0366766 AQUA-CONTROL BOTTOM G60 UIMC
$17.10
W0367444 HOSE,DETERGENT,CIRCULATION,CW
$10.00
W0368016 PEG, FRONT PANEL, CATCH
$4.00
W0368017 SHAFT,DOOR HINGE,6MM,157MM
$3.50
W0369060 CLAMP, HOSE CLAMP, Ø65.5MM
$3.50
W0369070 HARNESS, USER INTERFACE BOARD, PCB
$31.65
W0369073 DRAIN TUB, ASSEMBLY, G60
$28.60
W0369076 HARNESS, VALVE, PCB, J7,960+870MM
$33.00
W0369078 HARNESS, PRESSURE SWITCH, PCB,
$57.60
W0369140 SCREW, COUNTERWEIGHT, FRONT, 5
$6.75
W0369141 TOP COUNTER WEIGHT SCREW
$11.40
W0369142 HOSE,ELECTRIC VALVE,WATER DIST
$11.60
W0369143 HOSE,ELECTRIC VALVE,WATER DIST
$9.75
W0369144 TUBE,ELECTRIC VALVE,EV/WD G33
$11.45
W0369147 SHOCK ABSORBER,WITH PIN,90N
$37.55
W0369151 DETERGENT DRAWER,KIT,ONE
$40.00
W0369155 TRANSIT STRAPS,SCREWS,KIT
$23.00
W0369202 SCREW,DOOR HINGE,2 PCS.,4.8X11
$5.00
W0369872 CLAMP, ELECTRIC VALVE, 16.26-1
$4.00
W0369873 CLAMP, HOSE CLAMP, 18.7-18.7MM
$4.00
W0369883 LEVER, DOOR LOCK, OPENING, 397
$5.50
W0369888 COVER, DOOR LOCK, LATCH
W0369900 HARNESS, DOOR SAFETY INTERLOCK
W0369902 HARNESS, HEATING ELEMENT, MAIN
$27.80
W0369949 DRAWER COMPARTMENT
$72.95
W0369966 REINFORCEMENT,HINGE,ONE,OMEGA
$11.00
W0370052 HARNESS,VALVE,MAIN ELECTRONIC
$12.50
W0370053 HARNESS,MOTOR CONTROL,MAIN ELE
$17.95
W0370055 HARNESS,MOTOR CONTROL,MOTOR,J2
$23.00
W0370160 HARNESS,RECIRCULATION PUMP,DRA
$134.20
W0370281 HARNESS,MOTOR CONTROL,MAIN ELE
$22.80
W0370894 FLOAT SWITCH,ASSEMBLY
$21.00
W0370903 DRAIN PUMP,WITH,THERMAL CUT-OU
$55.00
W0374805 CLAMP, HOSE CLAMP, 21.5-22.6MM
$3.50
W0374842 CLAMP, HOSE CLAMP, Ø20.5MM
$3.50
W0374945 BUTTON, ROUND, ON/OFF, RUBY
$9.65
W0375028 SUPPORT, HANDLE, CONTROL PANEL
$14.75
W0375136 DIFFUSER, LED, KNOB
$24.15
W0375251 POWER CABLE, AUS,2000MM,3X1.0MM
$38.15
W0375261 DOOR FRAME, BACK, GREY, Ø486MM
$39.70
W0375431 DOOR FRAME, FRONT, BLACK, RUBY,Ø490.2MM
$76.25
W0375667 FRONT PANEL,CABINET,WHITE,ONE
$212.50
W0375774 CONTROL PANEL, WHITE, AEG, EN
$338.80
W0382547 DRUM LIFTER,KIT,3 PCS.,G60
W0382636 INVERTER,ELECTRONIC BOARD,ASSEMBLY,EMC18
$266.00
W0382700 DOOR LOCK,40N,230V,50HZ
