L89409FL — 914531916 00

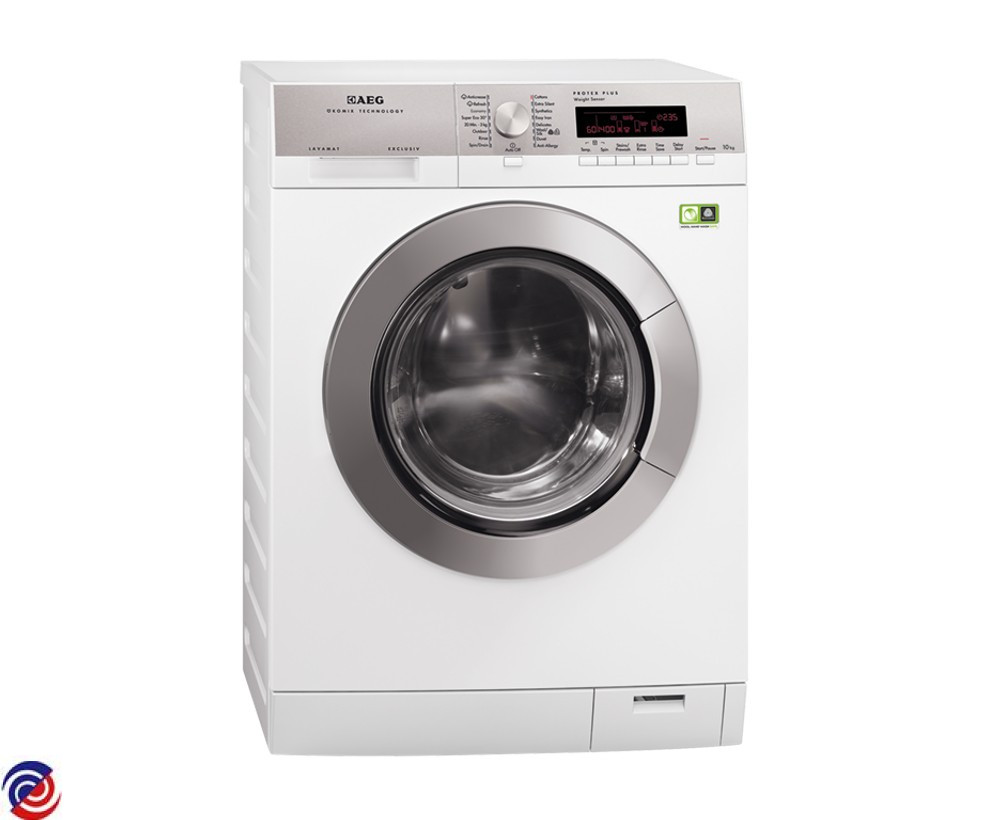

AEG — Washing Machine
Parts for L89409FL
W0016933 PIPE UNION, WATER DISTRIBUTOR, 3VIE
$50.00
W0017020 SHAFT, DOOR HINGE, 112MM
$10.00
W0017025 RING LOCKING
W0017044 TUBE ELECTRIC VALVE EV WD
$18.60
W0017070 HEATING ELEMENT
$114.10
W0017114 SHOCK ABSORBER,WITH PIN,SENSOR,80N
$139.00
W0017141 PANEL FRONT
$158.00
W0017147 GLASS, PORTHOLE
$158.00
W0017160 FILTER,ASSEMBLY,DIAPHRAGM
W0017173 SPRING, SUSPENSION, TUB
$18.00
W0017178 RECIRCULATION HOSE, INTAKE
$37.00
W0017188 DRAIN HOSE, ASSEMBLY, L=2540MM
$72.00
W0017237 DRUM LIFTER, G60
$21.00
W0026938 CONNECTOR PROTECTION
$16.00
W0075952 BELT DRIVE
W0076089 HOSE FILLER
W0381690 BOARD MAIN CONFIGURED L89409FL
$363.00
W0015013 DOOR STOPPER
$8.35
W0016850 TUBE, ELECTRIC VALVE, CONTAINE
$30.80
W0016928 LEG ASSY
$18.90
W0016944 CAP REAR PANEL
$16.00
W0016955 SYPHON, ADDITIVES, HEC 3-4 COMP.
$7.00
W0016957 SCREW,4,9X15 TTL TORX
$13.20
W0016977 SPACE COMPENSATOR, FIXING, PUM
$27.50
W0016983 ELECTRIC VALVE,3-WAYS,FLOWMETER
$151.00
W0017014 CROSSBAR, SUSPENSION, TUB, ICON
$27.35
W0017016 CROSSBAR, COMMAND
$28.00
W0017027 CAP SUPPORT
$11.00
W0017052 DRAWER COMPARTMENT
$34.00
W0017057 TUBE, PRESSURE SWITCH
$17.00
W0017059 SUPPORT, TUBE, DRAIN
$6.60
W0017119 TUBE, CIRCULATION
$22.90
W0017120 TUBE HOLDER,RECIRC HORIZONTAL
$5.80
W0017121 TUBE HOLDER,RECIRC VERTICAL
$4.00
W0017145 DOOR FRAME, FRONT, INOX, Ø463,6MM
$205.60
W0017148 SHOCK ABSORBER, ASSEMBLY, 80N,DUAL STAGE
$68.00
W0017150 PLINTH, BASEMENT, WHITE, 7801
$122.55
W0017152 PLINTH, DOOR
$127.20
W0017153 BRACKET SHOCK ABSORBER LH
$8.75
W0017154 BRACKET SHOCK ABSORBER RH
$6.60
W0017157 HOSE DRAIN TUB
W0017159 GASKET, PUMP BODY, FRONT PANEL
$11.25
W0017163 HINGE, PORTHOLE
$34.00
W0017169 DIVIDER SEPARATOR DET DRAWER
$4.50
W0017170 HOSE CLAMP, DRAIN,BACK PANEL
$6.00
W0017177 SUPPORT, HARNESS
$14.30
W0017181 COUNTERWEIGHT, FRONT, 15.8KG G60 W35L
$81.00
W0017189 SOUNDPROOFING, FRONT
$27.20
W0017190 SOUNDPROOFING, RIGHT
$39.60
W0017191 SOUNDPROOFING, LEFT
$29.70
W0017235 KNOB, COVER, STAINLESS, STEEL
$139.30
W0017439 SUPPORT, BUTTON SET,6+1
$33.00
W0017440 BUTTON WHITE ON/OFF
$16.00
W0017441 BUTTON SET, WHITE, RECTANGULAR, 6+1
$14.60
W0017850 INSERT CONTROL PANEL L89409FL
$95.00
W0023937 HANDLE,PORTHOLE,KIT
$74.00
W0026940 COVER, INVERTER, ELECTRONIC BOARD
$14.70
W0026992 TUBE RUBBER TWO PUMP SOLUTION
$53.00
W0027005 TUBE INTAKE TWO PUMP SOLUTION
$23.00
W0070003 CLAMP HOSE
W0074344 BOLT,ROLLER,5,5X38
$4.00
W0074367 SPRING DOOR STOPPER
$9.85
W0075543 BUSH
W0075936 CLAMP, HOSE CLAMP, Ø52.5MM
$22.30
W0075991 POWER CABLE, AUS,2450MM,3X1.0MM
$34.00
W0076019 WATER DISTRIBUTOR
$47.00
W0076021 DRAWER DETERGENT
W0076022 CONVEYOR. BOTTOM. HEC
W0076136 SPRING BELLOW, TUB,G33
$26.00
W0076164 SCREW COUNTERWEIGHT FRONT8X59
$4.00
W0076180 RUBBER BELLOW
W0076182 SCREW COUNTERWEIGHT.TOP
W0076204 CONTROL PANEL.HANDLE. ASSY
W0076208 WORKTOP ASSY
W0076219 COUNTERWEIGHT, UPPER, 8.37KG G60
$52.90
W0076222 PANEL, BACK, HIGH
$47.00
W0076224 CHAMBER AIR
W0076229 HINGE REINFORCEMENT
W0076621 KNOB,GREY
$16.65
W0076643 DIFFUSER, LUMINOUS DIODE,KNOB
$13.15
W0076644 DIFFUSER, LUMINOUS DIODE
$11.00
W0077070 DOOR LOCK,COVER
$9.00
W0077085 PCB ASSEMBLY. MOTOR CONTROL
W0112856 SWITCH ANALOGIC PRESSURE
W0128157 CLAMP KIT VALVE TUBES PKT 6
$21.90
W0128341 KIT,PULLEY,PLASTIC
$86.00
W0147397 BOARD USER INTERFACE S.8N P10
W0274362 RECIRCULATION PUMP 2 PCE
$168.00
W0284118 PUMP BODY JET + CW
$10.00
W0364036 MOTOR MAGNET
$504.00
W0368016 PEG, FRONT PANEL, CATCH
$4.00
W0368207 HOSE HOLDER,DRAIN HOSE
$11.00
W0369060 CLAMP, HOSE CLAMP, Ø65.5MM
$3.50
W0369076 HARNESS, VALVE, PCB, J7,960+870MM
$33.00
W0369078 HARNESS, PRESSURE SWITCH, PCB,
$57.60
W0369109 CLUSTER, WELDED, ASSEMBLY, G60
$487.75
W0369155 TRANSIT STRAPS,SCREWS,KIT
$23.00
W0369872 CLAMP, ELECTRIC VALVE, 16.26-1
$4.00
W0369873 CLAMP, HOSE CLAMP, 18.7-18.7MM
$4.00
W0369883 LEVER, DOOR LOCK, OPENING, 397
$5.50
W0374842 CLAMP, HOSE CLAMP, Ø20.5MM
$3.50
W0377080 HOSE ELECTRIC VALVE CONT L=125
$10.00
W0377716 HARNESS, MOTOR, INVERTER, J2,310MM
$21.00
W0382483 DRAIN PUMP
