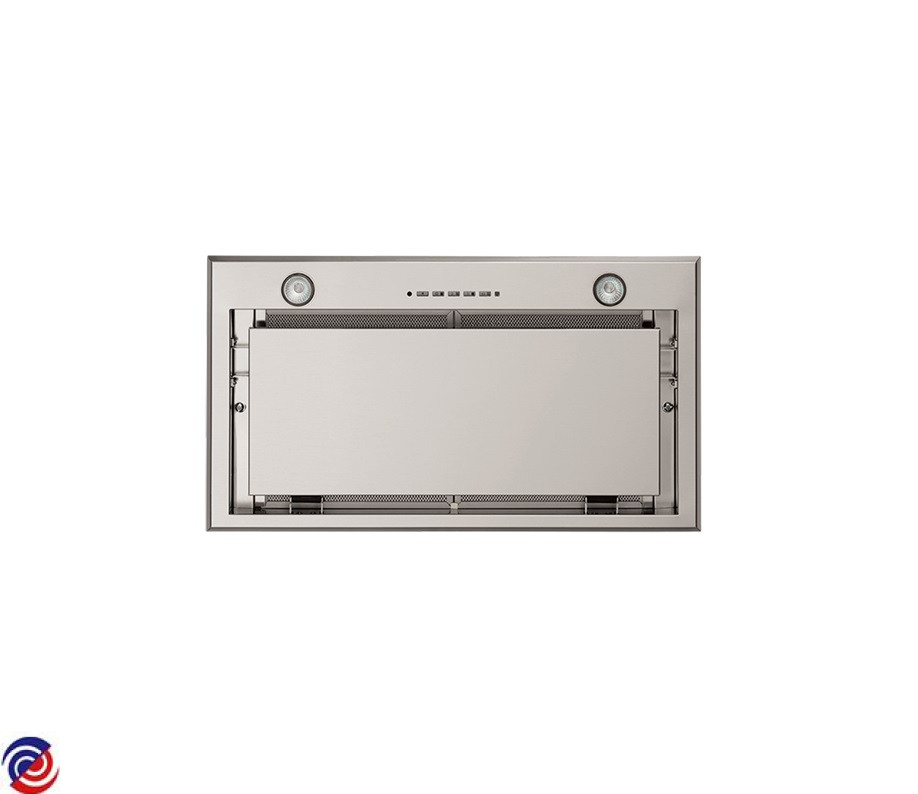

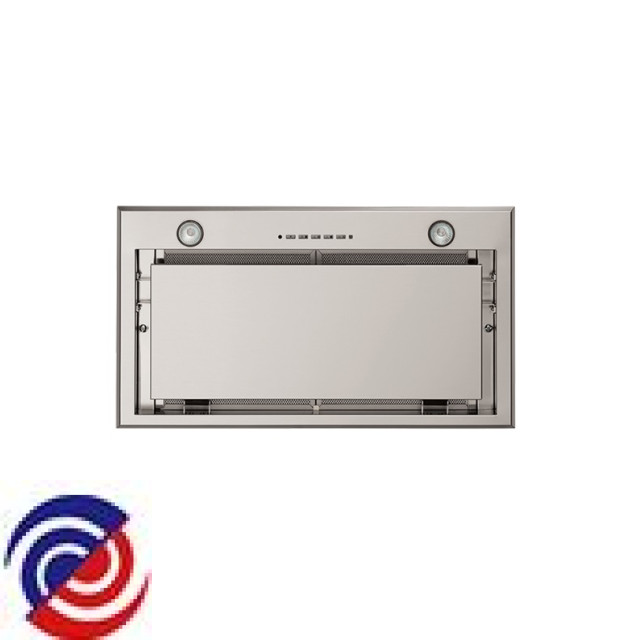

DL8560-M — 942492651 00
AEG — Rangehood
Parts for DL8560-M

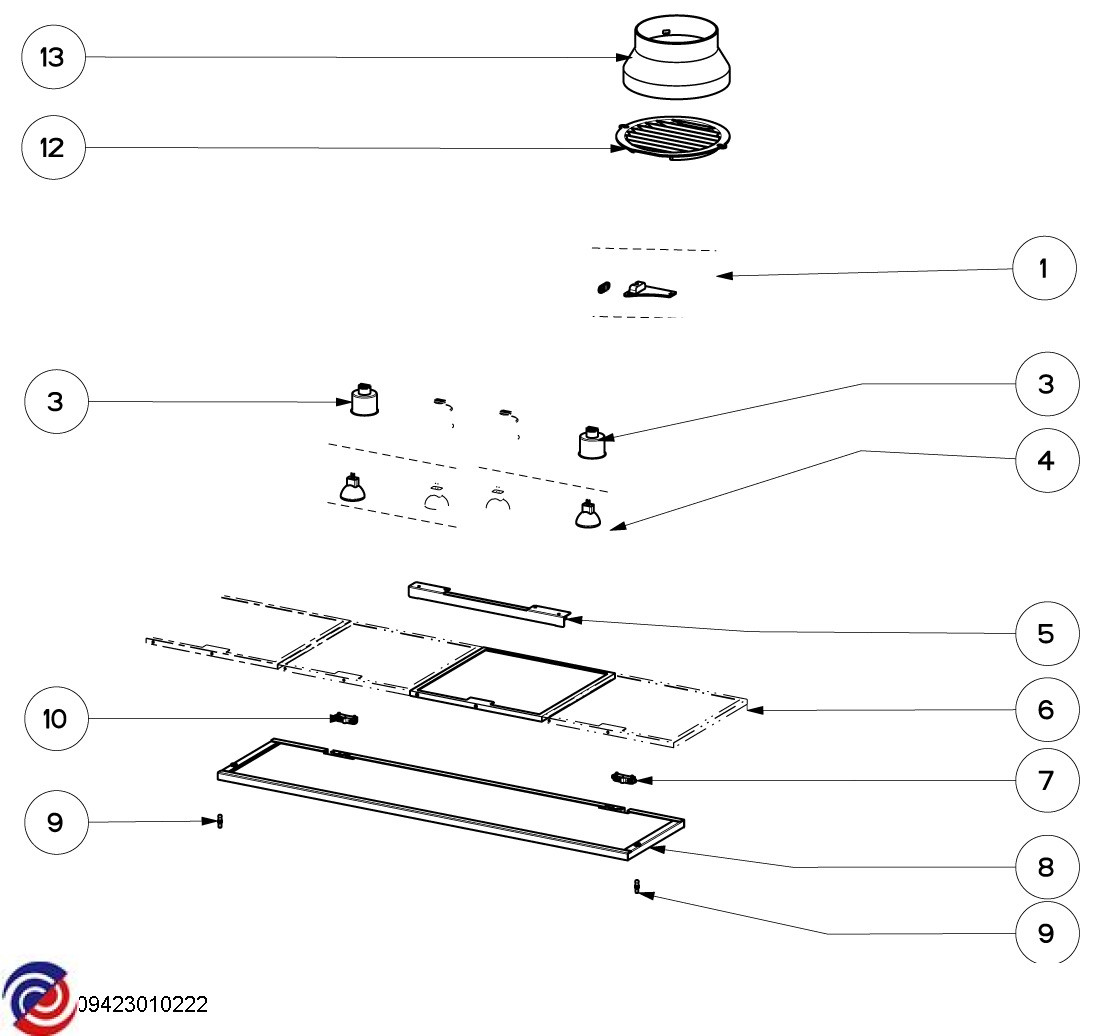

W0127331 LAMP 20W 12V HALOGEN (2PER)
W0128270 FILTER CARBON RECIRC (EFF72)
$81.00
W0023568 GRATE D150W
$40.50
W0023569 TRANSFORMER 230V
$195.19
W0023571 HOLDER LAMP
$118.50
W0023573 FILTER 220,5MM X 422MM
$182.25
W0023574 FRAME FILTER
$258.75
W0023724 UNIT STIRRUP
$111.38
W0023867 REMOTE CONTROL IR 6 SWITCHES
$171.68
W0023953 FLAT CABLE MALE 10 WAYS L=100
$72.75

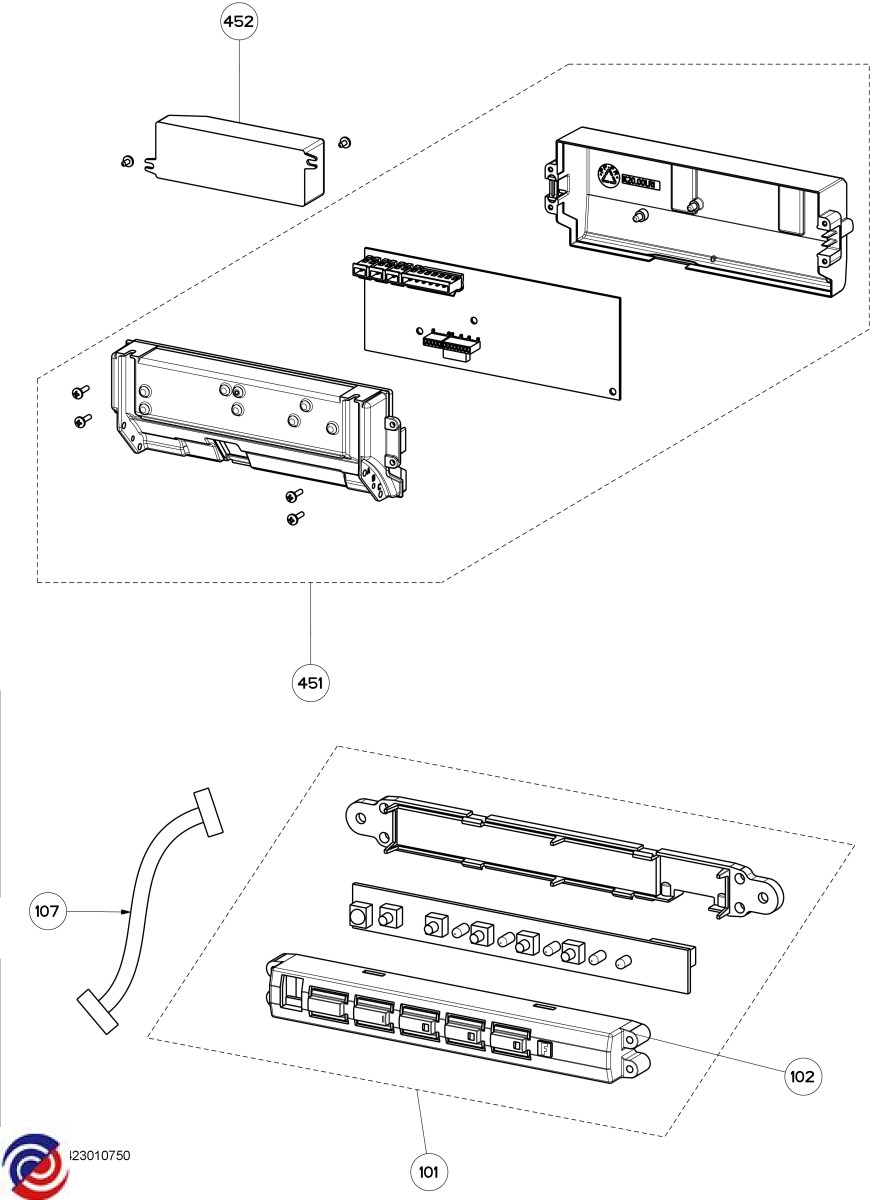

W0023991 KIT CONTROL BOX
$114.75
W0023992 KIT CARD
$390.00
W0025426 ADAPTOR AIR REDUCER 150 - 120
W0025603 FLANGE & NO RETURN VALVE Ï150
$87.00
W0025869 CORD POWER 3 X 0.75 X 2100
$41.21
W0025946 CAPACITOR 6.3MF 400V 1000H
W0026052 MOTOR MAIN ASSY
$963.75
W0026053 IMPELLER, PP-V2 X99384MV0
$99.11
W0026055 KIT CONNECTOR MOTOR
$76.50
W0026056 KIT, CUSHION, EMK10 X99384MV0
$74.25
W0116578 FLAT CABLE FEMALE 10WAYS L=750
$75.08
W0116595 KIT CONTROL UNIT ASSEMBLY
W0127585 COVER CABLE
W0128091 PIN LOCK COMFORT PANEL
$37.46
W0128095 HINGE SUPPORT HALOGEN LAMP
$55.50
W0128121 HINGE FIX HALOGEN LAMP
