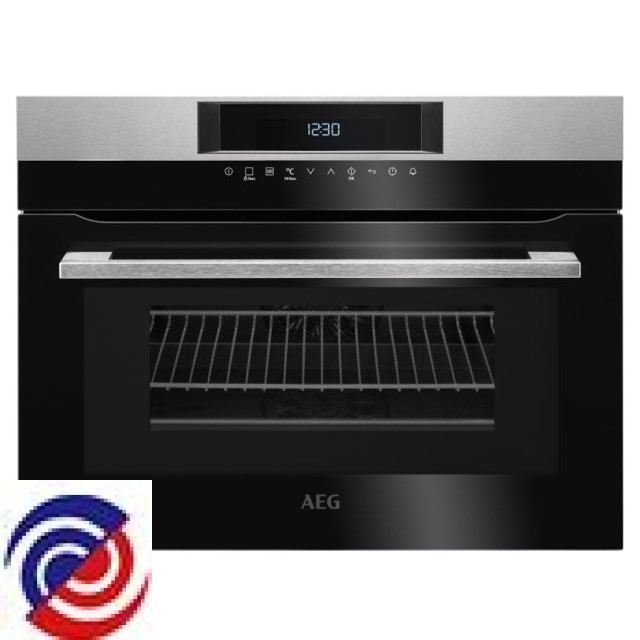

KMK761000M — 944066550 05
AEG — Microwave
Parts for KMK761000M
W0017871 ASSEMBLY CONDENSATION MOTOR 24
$347.00
W0022985 HARNESS USER INTERFACE BOARD S
$229.00
W0023180 GRILL SHELF 466X385 . .
W0026274 MOTOR CONVEYOR 230V . .
$174.00
W0026279 HEATING ELEMENT UPPER 230V 190
$147.00
W0026281 MAGNETRON
$231.00
W0026282 TRANSFORMER HV
$447.00
W0026283 MOTOR STIRRER 230V
$111.00
W0026302 SENSOR PT500
$68.00
W0026303 HEATING ELEMENT ROUND 230V 165
$142.00
W0026306 LAMP ASSEMBLY G9 230V 25W
$34.00
W0026518 TOUCH PCB USER INTERFACE BOARD
$342.00
W0026986 GASKET OVEN DOOR
$62.00
W0027116 GRID SIDE R
$68.00
W0027117 GRID SIDE L
$68.00
W0114339 BUSH, FIXING, OVEN D41116
$8.00
W0114583 HEATING ELEMENT, BOTTOM, 1000W
W0147344 LAMP HALOGEN BULB 25W G9 230V
W0274530 HANDLE INOX
$132.00
W0017784 MOUNTING PLATE BACK
$66.00
W0017828 OVER HEAT PROTECTION THEMO 145
$25.00
W0022555 BOLT TORX B63 5X6
$5.50
W0022556 SCREW TORX 4 X 10 T20
$5.50
W0023126 PANEL BASE
$41.80
W0023165 SCREW MOUNT 4.2MM X 9.5MM
$17.00
W0023181 SUPPORT, HINGE, LEFT
$29.50
W0023182 SUPPORT, HINGE, RIGHT
$29.50
W0023209 CLAMP CABLE 15x 16mm
$4.00
W0023211 CLAMP CABLE 22 MM
$4.50
W0023212 SHIELD, BOTTOM, HEATER, STEAM
$44.00
W0024182 SCREW KIT BUSH HANDLE
$18.00
W0026251 SIDE PANEL LEFT-RIGHT .
$77.00
W0026272 WHEEL CONVECTION FAN .
$54.00
W0026284 SENSOR MAGNETRON NTC
$68.00
W0026286 SHIELD CONVECTION FAN
$16.50
W0026290 BEARING STIRRER
$35.05
W0026291 RETAINER MOTOR
$14.30
W0026296 SUPPORT CONNECTION BOX
$14.30
W0026297 WASHER AXLE 21/11MM
$14.50
W0026299 INNER DOOR FRAME
$153.00
W0026385 NUT FAN
$6.00
W0026450 CLIP FIXING ELECTRONIC 4 8MM
$6.00
W0027064 AXLE STIRRER
$12.20
W0027100 MOUNTING SET FIXING
$30.00
W0027124 RING NUT
$11.00
W0027159 GASKET DOOR MICROWAVE OVENS
$56.00
W0027169 TAPE DRIP PROTECTION FRONT GLA
$77.00
W0027232 PIVOT SIDE GRID
$17.00
W0077100 HOLDER SIDE GRID 4MM PIN
$33.00
W0103137 LOCKING SPRING. 9MM
W0106497 BOLT TORX B63 5X9 5 T20
W0134350 NUT, HEATING ELEMENT, UPPER,M4
$5.50
W0274457 CAP NUT MX6
W0274462 PAN DRIP 466X385X40 MM
$58.00
W0274555 ADAPTOR DOOR HANDLE
$5.50
W0274592 COVER UI
$14.95
W0274634 GLASS FRONT BLACK A 594X332 MM
$168.00
W0274661 UI NOT CONFIGURED
W0274671 PANEL TOP COVER
$137.00
W0274678 CONTROL PANEL, INOX 60CM VCIU
$174.00
W0274698 DOOR OVEN TOP CAP
$18.00
W0274706 PANEL BACK OVEN
$55.00
W0274711 FILTER VOLTAGE
$36.00
W0275092 KIT SCRW COVER
$10.00
W0275323 LAMP GLASS MICROWAVE
W0275336 SPACER FLAT
W0275495 CONFIGURED ELECTRONIC U I
$504.00
W0282766 HINGE DO0R LONG 5.8KG
$59.00
W0282767 HINGE DO0R 7.1KG
$62.00
W0282777 PANEL BACK FAN
W0283243 GLASS DOOR 474X327MM
$83.00
W0363887 TERMINAL BLOCK 3P
$16.00
W0363888 CABINET, FUSE
$25.00
W0364023 ASSEMBLY,COOLING FAN,COMPLETE
$116.00
W0364024 DIODE, HV
$19.80
W0364034 DOOR FRAME
$247.00
W0364127 HARNESS,POWER BOARD,DOOR LOCK,
$45.65
W0364228 GASKET, 405MM
$4.00
W0364242 FAN, STIRRER
$10.85
W0366537 POWER BOARD OVC5000
W0366935 SAFETY SWITCH LEFT L
$33.00
W0366979 SAFETY SWITCH RIGHT
$25.00
W0367099 PROTECTION SHEILD OVC3000/5000
$6.60
W0367764 HARNESS POWER BOARD DR SWITCH
$42.45
W0369877 HARNESS, USER INTERFACE BOARD,
$8.40
W0374070 COVER TOP MICA
$37.00
W0375332 CAPAC 1.05UF 2300V 6PIN MICROW
$55.00
