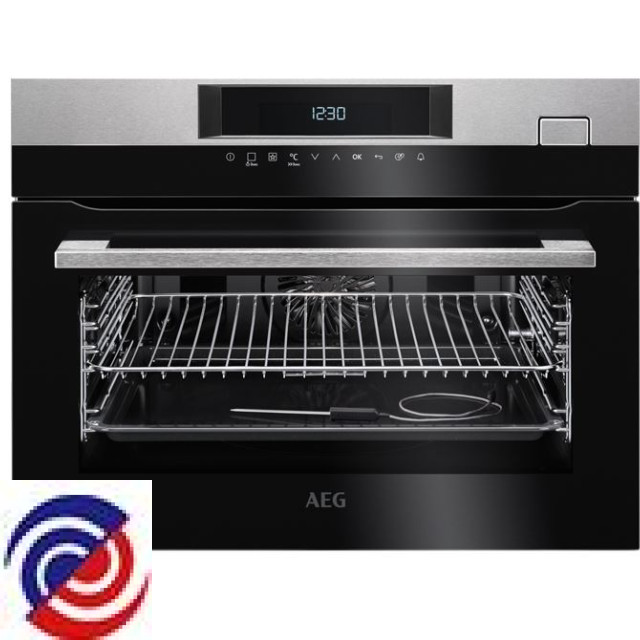

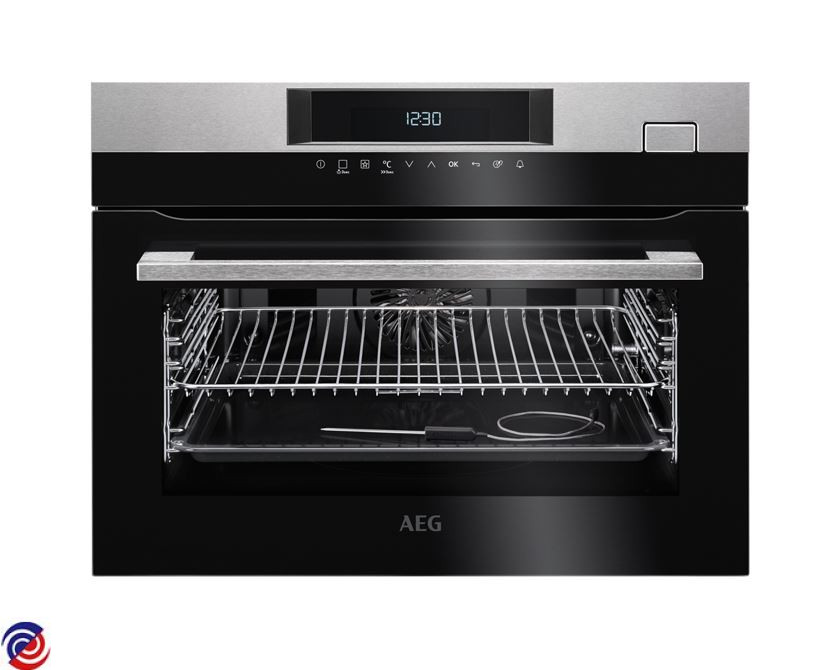

KSK782220M — 944066461 02
AEG — Cooker Electric
Parts for KSK782220M

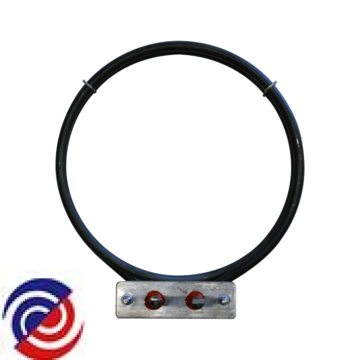

W0026263 ELEMENT HEATING ROUND 240V 165
$147.00
W0026274 MOTOR CONVEYOR 230V . .
$174.00
W0026518 TOUCH PCB USER INTERFACE BOARD
$342.00
W0027020 ELEMENT HEAT LOWER 230V 1000W
W0030821 TRAY BAKING
W0114339 BUSH, FIXING, OVEN D41116
$8.00
.JPG)
W0114562 LAMP OVEN COMPLETE G9 40W HALO
W0274530 HANDLE INOX
$132.00
W0274627 GENERATOR STEAM
$221.00
W0275423 MEAT THERMOMETER BLACK 480MM
W0017741 STOPPER DOOR RUBBER HIGH-TEMP
$7.00
W0017773 DUCT EXHAUSST SLIDER ASSY DC
$41.55
W0017802 GASKET HEATING ELEMENT UPPER
W0017858 HARNESS UI - POWER BOARD
$61.30
W0017939 PANEL TOP COVER
$44.95
W0022366 SWITCH THERMAL KLIXON 110C
W0023126 PANEL BASE
$41.80
W0023149 PCB MEAT THERMOMETER EOS-3REL
$683.00
W0023165 SCREW MOUNT 4.2MM X 9.5MM
$17.00
W0023181 SUPPORT, HINGE, LEFT
$29.50
W0023182 SUPPORT, HINGE, RIGHT
$29.50
W0023183 CHANNEL AIR UPPER
$72.55
W0023185 SUPPORT, CONNECTION BOX
$9.90
W0023189 SWITCH DOOR COMPLETE
$44.00
W0023193 GRILL INSERT 415X330X39.5MM
$51.00
W0023209 CLAMP CABLE 15x 16mm
$4.00
W0023210 CLAMP CABLE 22 x 23mm
$4.00
W0023211 CLAMP CABLE 22 MM
$4.50
W0023219 SOCKET MEAT THERMOMETER BLACK
$77.00
W0024182 SCREW KIT BUSH HANDLE
$18.00
W0024454 GASKET BOLS
$27.50
W0026025 KIT SPACE COMPENSATOR CARD .
$14.30
W0026249 DOOR GLASS 499X249MM .
$115.00
W0026250 DOOR GLASS 488X244MM
$57.00
W0026251 SIDE PANEL LEFT-RIGHT .
$77.00
W0026256 COVER CONVECTION FAN .
$66.00
W0026273 FAN WHEEL CONVECTION FAN
$31.00
W0026334 NUT CONVECTION FAN M6L
$7.00
W0026337 CONNECTION BOX WITH CABLE 3X1
$77.00
W0026379 HARNESS POWER BOARD SIDEKICK
$26.85
W0026391 ELEMENT UPPER SINGLE 1900W230V
$132.00
W0026395 GASKET ROUND 892 5MM
$42.00
W0026523 ACTUATOR EXHAUST DUCT
$30.00
W0026955 PIPE INLET STEAM
$57.00
W0026979 GASKET STEAM INLET
$4.00
W0027100 MOUNTING SET FIXING
$30.00
W0027110 ACTUATOR DESCALING PIPE 220-24
$65.00
W0027120 SHIELD BOTTOM HEATER STEAM
W0027135 INLET VALVE WATER
$142.00
W0027139 CARRIER STRUT BACK
$25.00
W0027151 GRID LEFT STEAM
$75.00
W0027152 GRID RIGHT STEAM
$75.00
W0027173 TUBE GENERATOR 35MM D15/D20
$11.00
W0027175 ELBOW STEAM INLET
W0027178 CLAMP HOSE 16 5MM
$5.50
W0027179 CLAMP HOSE 20MM
W0027180 CLAMP HOSE 12MM
W0027245 GASKET CONVECTION HEATER
$16.90
W0027375 TUBE CLIP D20MM
W0105621 CLIP.FIXING.ELECTRONIC.I=22.9M
W0105622 CLIP FIXING ELECTRONIC1=12 7MM
$4.50
W0114281 CLAMP CABLE
$15.40
W0114396 LAMP 40W 230V HALOGEN GLOBE G9
W0114535 NUT UPPER HEATER
$5.50
W0114548 BOLT SIDE GRID
W0114561 GLASS, OVEN LAMP, HALOGEN
$12.00
W0116500 KIT GASKET COVER CONVECTN FAN
$36.00
W0134345 GASKET SENSOR PT500
$6.60
W0134346 GASKET OVEN LAMP TOP
$10.00
W0134371 HARNESS POWER BOARD FPM
$60.50
W0134372 HARNESS POWER BOARD FPM
$60.50
W0134379 DOOR COVER TOP BLACK NON PYRO
W0134386 HARNESS DOOR SWITCH POWER
$33.00
W0154349 DISH STEAM SET
W0274421 GASKETDESCALING PIPE
$6.00
W0274434 DESCALING PIPE SILI
$53.00
W0274439 TRIM DECORATIVET
$10.00
W0274441 GASKET, MICROSWITCH
$50.00
W0274452 CONECTION TUBE
W0274462 PAN DRIP 466X385X40 MM
$58.00
W0274555 ADAPTOR DOOR HANDLE
$5.50
W0274574 CAP DRAWER STEAM INOX
$14.00
W0274577 TANK WATER ASSY STEAM VISION
$210.00
W0274592 COVER UI
$14.95
W0274635 GLASS FRONT BLACK 594X332 MM
$125.05
W0274655 PANEL CONTROL INOX 60CM VCU
$300.00
W0274661 UI NOT CONFIGURED
W0274689 GRILL GRID 466X385 22
$90.00
W0274706 PANEL BACK OVEN
$55.00
W0275126 MOUNTING KIT WATER TANK
W0275336 SPACER FLAT
W0275337 SENSOR TEMP LOWER
$47.00
W0275416 CONDENSER STEAM
$126.10
W0282672 HARNESS - POWER BOARD SENSOR
$211.70
W0282674 PIPE ELBOW DESCALING
$29.65
W0282705 TUBE WATER 280MM D16/D11
$20.90
W0282746 HINGE 4P 6.2 6.6KG
$58.05
W0282748 HINGE LONG DAMPER 6.2 6.7KG
$126.20
W0282752 GLASS SCREENED 524 X 263
$68.00
W0282811 GASKET OVEN
$76.00
W0283241 TRIM DOOR BOTTOM STEAM
$16.45
W0283255 HARNESS N1
$15.80
W0283272 CONFIGURED ELECTRONIC U I VCU
$320.05
W0283296 BOARD POWER CONFIGURED OVC3000
$441.00
W0284467 FAN ASSY COOLING 240V 22W
$111.00
