BP501310AM — 944187449 00

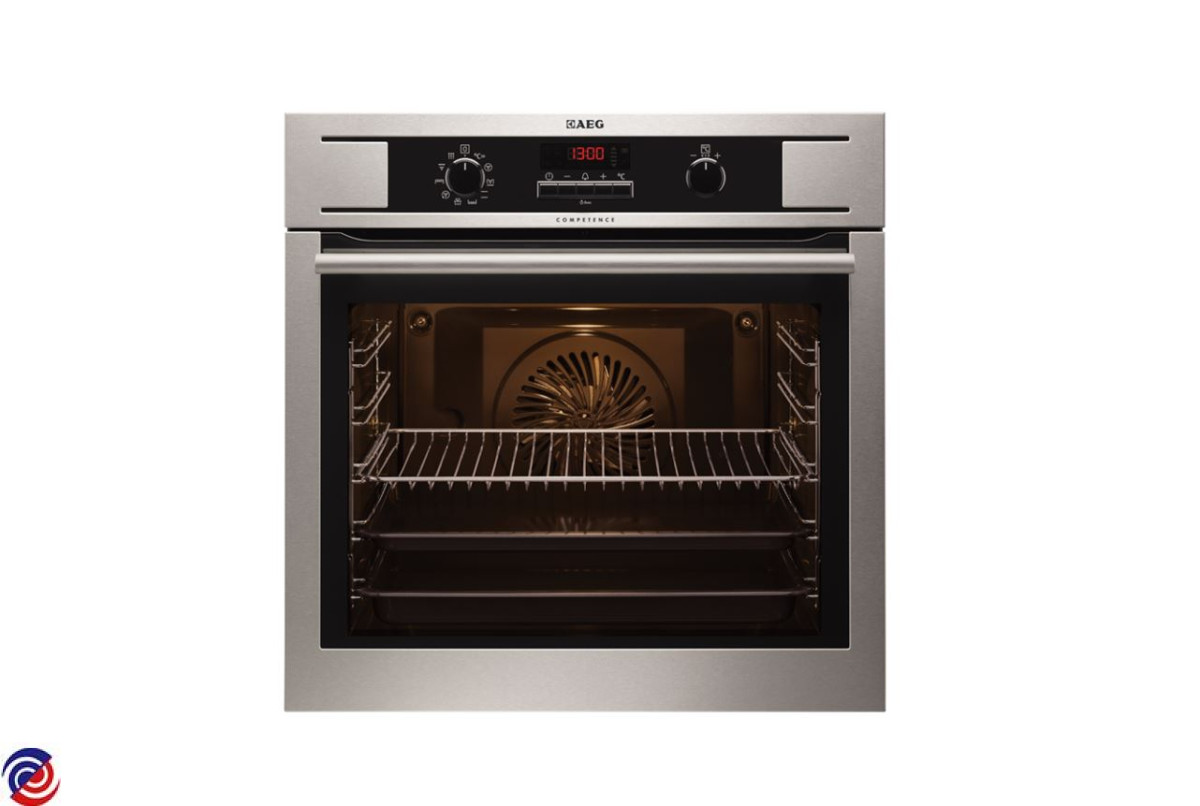

AEG — Cooker Electric
Parts for BP501310AM
.png)
W0017838 DISH BAKING ANTI-STICK 466X385
$115.00
W0017921 MOTOR MICRO CONVEVTION
$64.00
W0023062 SELECTOR SWITCH, FUNCTION,0-10
$72.00
W0023140 DOOR GLASS HT 524X402
$258.00
W0023142 COVER TOP DOOR BLK
W0023163 FRONT FRAME, PYRO BP5013001M
$125.30
W0026321 GASKET OVEN DOOR BLK 503 X 371
$54.60
.png)
W0026359 DOOR OVEN OUTER GLASS BLK
W0026427 ADAPTOR DOOR HANDLE BLK
$39.00
W0026428 DOOR HANDLE ROUND INOX
$50.00
W0026431 SPRING DAMPER MOTOR
$12.55
W0026435 OVEN WIRE SHELF CLIP
$5.50
W0026554 CONTROL PANEL,INOX,AEG,
$410.05
W0026997 ELEMENT HEATING LOWER 230V 100
W0027146 DOOR GLASS HT 499X388
$137.00
W0027301 GLASS COVER OVEN LAMP TOP
$64.00
W0027302 OVEN LAMP ASSY TOP 40W G9
$29.00
W0027372 SWITCH ROTARY SELECTOR
W0030813 SHELF RACK
W0030814 SHELF RACK GRILL INSERT
W0030815 TRAY BAKING 466 X 385 X 23
W0030816 TRAY BAKING 466X385X39
W0077115 HINGE DOOR LH/RH
W0110025 LOCK DOOR ELECTRIC
$142.00
W0114339 BUSH, FIXING, OVEN D41116
$8.00
W0114506 DOOR OVEN INNER GLASS
$120.00
W0114534 ELEMENT ROUND 240V 2400W
W0134420 ELEMENT HEATING UPPER 2300W
W0134447 RACK SIDE OVEN RIGHT
$45.90
W0134448 RACK SIDE OVEN LEFT
$40.00
W0134481 SENSOR PT500
$44.00
W0147304 FAN, COOLING ASSY
W0147313 AEG WALL OVEN MICROWAVE PCB
$305.00
W0147345 LAMP 40W HALOGEN G9 230V
W0271174 IMPELLER OVEN FAN 160 MM
W0017741 STOPPER DOOR RUBBER HIGH-TEMP
$7.00
W0017773 DUCT EXHAUSST SLIDER ASSY DC
$41.55
W0017787 PANEL SIDE LEFT-RIGHT
$27.50
W0017828 OVER HEAT PROTECTION THEMO 145
$25.00
W0017859 PAN DRIP 466X385X39 NON STICK
$185.00
W0017939 PANEL TOP COVER
$44.95
W0022502 CATALYST
$60.00
W0022953 BEZEL KNOB BLACK H=6.5MM
$17.60
W0023126 PANEL BASE
$41.80
W0023127 PANEL OVEN REAR
$49.50
W0023151 COVER CONVECTION FAN
$43.90
W0023155 FAN WHEEL CONVECTION FAN
W0023170 BRACKET HINGE RIGHT
$14.30
W0023171 BRACKET HINGE LEFT
$14.30
W0023181 SUPPORT, HINGE, LEFT
$29.50
W0023182 SUPPORT, HINGE, RIGHT
$29.50
W0023183 CHANNEL AIR UPPER
$72.55
W0023186 SUPPORT CONNECTION BOX
$9.90
W0023209 CLAMP CABLE 15x 16mm
$4.00
W0023210 CLAMP CABLE 22 x 23mm
$4.00
W0023211 CLAMP CABLE 22 MM
$4.50
W0023212 SHIELD, BOTTOM, HEATER, STEAM
$44.00
W0023928 SCREW KIT HANDLE
$6.00
W0024074 KIT SCREW PKT 4
$23.00
W0026334 NUT CONVECTION FAN M6L
$7.00
W0026336 HARNESS DOOR LOCK POWER BOARD
$21.00
W0026340 BUTTON PUSH ASSY
$16.00
W0026353 HARNESS DOOR SWITCH POWER BOAR
$174.05
W0026364 KNOB, IBLACK
$18.70
W0026383 HARNES UI -BOARD SELECTOR
$41.00
W0026408 HARNES OVEN LAMP
$22.95
W0026423 HARNESS USER INTERFACE BOARD X
$184.00
W0026425 SIGNAL LAMP, SET,
$9.00
W0026523 ACTUATOR EXHAUST DUCT
$30.00
W0026531 KNOB RETRACTABLE BLACK
$17.90
W0027139 CARRIER STRUT BACK
$25.00
W0028989 BOARD USER INTERFACE CONFIG
$252.00
W0030818 RUNNER TELESCOPIC 3 SETS OF 2
W0105621 CLIP.FIXING.ELECTRONIC.I=22.9M
W0105622 CLIP FIXING ELECTRONIC1=12 7MM
$4.50
W0114252 LOCK DOOR
W0114281 CLAMP CABLE
$15.40
W0114514 POWER BOARD CONFIGURED OVC3000
W0114555 RACK GRILL INSERT
W0134350 NUT, HEATING ELEMENT, UPPER,M4
$5.50
W0134356 BOARD INTERFACE USER UNPROG
W0134398 RUNNER TELESCOPIC PKT 6
W0134455 RACK GRILL INSERT WIRE
W0134487 BLOCK TERMINAL CONNECTION
$31.00
W0274670 PANEL BACK OVEN
$174.00
W0274674 GLASS DOOR INNER 488 X 383MM
$342.00
W0275337 SENSOR TEMP LOWER
$47.00
