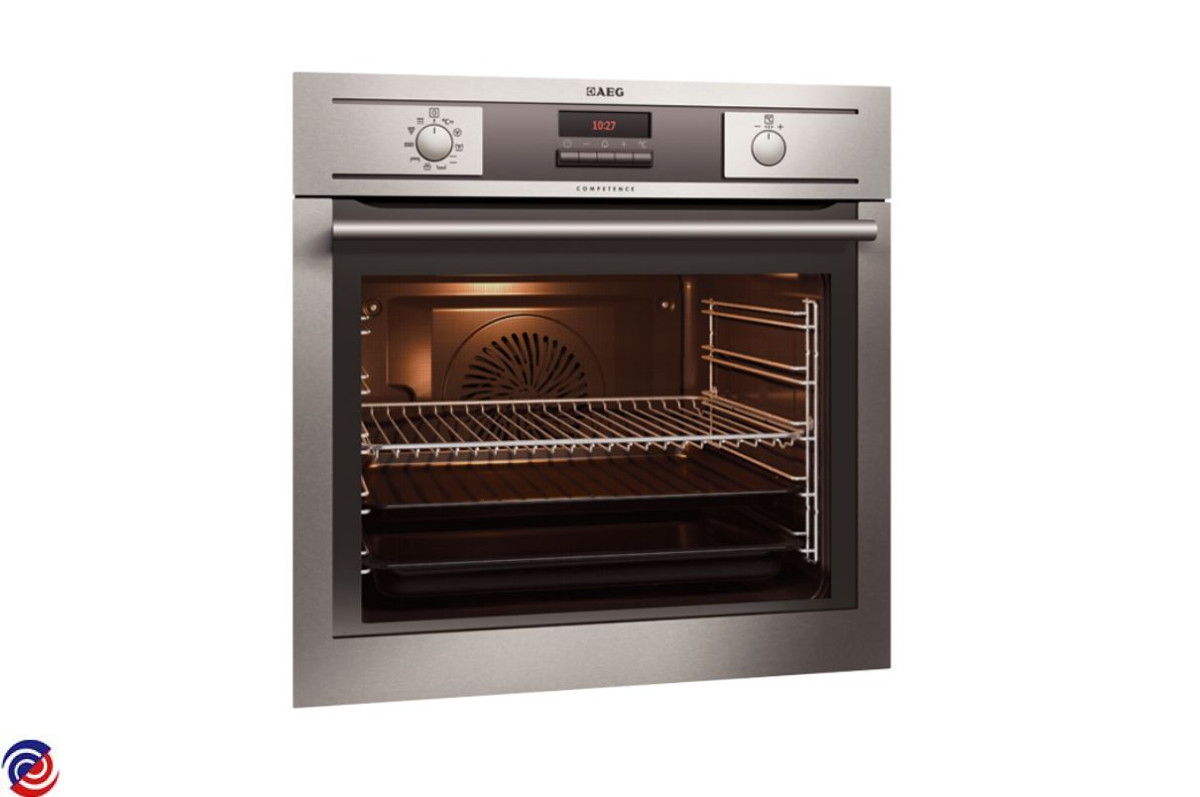

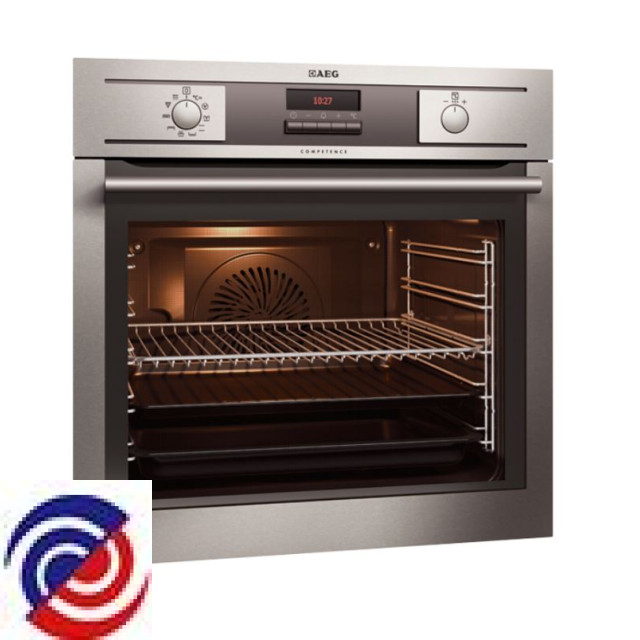

BP5013001M — 944185807 06
AEG — Cooker Electric
Parts for BP5013001M
W0023062 SELECTOR SWITCH, FUNCTION,0-10
$72.00
W0023140 DOOR GLASS HT 524X402
$258.00
W0023142 COVER TOP DOOR BLK
W0023163 FRONT FRAME, PYRO BP5013001M
$125.30
W0026321 GASKET OVEN DOOR BLK 503 X 371
$54.60
.png)
W0026359 DOOR OVEN OUTER GLASS BLK
W0026370 PANEL CONTROL
$215.00
W0026402 CONVECTION MICRO-MOTOR, 240V
W0026424 SIGNAL LAMP, SET, COMPLETE, 2W
$29.00
W0026427 ADAPTOR DOOR HANDLE BLK
$39.00
W0026428 DOOR HANDLE ROUND INOX
$50.00
W0026431 SPRING DAMPER MOTOR
$12.55
W0026435 OVEN WIRE SHELF CLIP
$5.50
W0027146 DOOR GLASS HT 499X388
$137.00
W0027302 OVEN LAMP ASSY TOP 40W G9
$29.00
W0027372 SWITCH ROTARY SELECTOR
$23.00
.png)

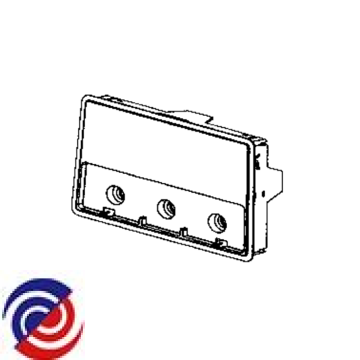

W0028983 BOARD USER INTERFACE
$342.00
W0077115 HINGE DOOR LH/RH
W0114339 BUSH, FIXING, OVEN D41116
$8.00
W0114506 DOOR OVEN INNER GLASS
$120.00
W0114533 ELEMENT FAN 2400W
W0134447 RACK SIDE OVEN RIGHT
$45.90
W0134448 RACK SIDE OVEN LEFT
$40.00
W0134481 SENSOR PT500
$44.00
W0147304 FAN, COOLING ASSY
W0147345 LAMP 40W HALOGEN G9 230V
W0017787 PANEL SIDE LEFT-RIGHT
$27.50
W0022369 THERMOSTAT RED BLK 145.C
W0022502 CATALYST
$60.00
W0023126 PANEL BASE
$41.80
W0023127 PANEL OVEN REAR
$49.50
W0023155 FAN WHEEL CONVECTION FAN
W0023181 SUPPORT, HINGE, LEFT
$29.50
W0023182 SUPPORT, HINGE, RIGHT
$29.50
W0023183 CHANNEL AIR UPPER
$72.55
W0023186 SUPPORT CONNECTION BOX
$9.90
W0023191 FLANGE, STEAM, TUBE
$12.95
W0023209 CLAMP CABLE 15x 16mm
$4.00
W0023210 CLAMP CABLE 22 x 23mm
$4.00
W0023211 CLAMP CABLE 22 MM
$4.50
W0023212 SHIELD, BOTTOM, HEATER, STEAM
$44.00
W0023912 SCREW DOOR HAND M4 X 50 PKT 5
$12.00
W0024074 KIT SCREW PKT 4
$23.00
W0026334 NUT CONVECTION FAN M6L
$7.00
W0026336 HARNESS DOOR LOCK POWER BOARD
$21.00
W0026340 BUTTON PUSH ASSY
$16.00
W0026353 HARNESS DOOR SWITCH POWER BOAR
$174.05
W0026383 HARNES UI -BOARD SELECTOR
$41.00
W0026408 HARNES OVEN LAMP
$22.95
W0026423 HARNESS USER INTERFACE BOARD X
$184.00
W0026547 KNOB RETRACTABLE HANDLE INOX
$27.80
W0027139 CARRIER STRUT BACK
$25.00
W0027301 GLASS COVER OVEN LAMP TOP
$64.00
W0027380 COVER TOP
$97.00
W0105056 RUBBER DOOR STOPPER
W0105621 CLIP.FIXING.ELECTRONIC.I=22.9M
W0105622 CLIP FIXING ELECTRONIC1=12 7MM
$4.50
W0114252 LOCK DOOR
W0114281 CLAMP CABLE
$15.40
W0114513 POWER BOARD CONFIGURED OVC3000
W0114531 BRACKET HINGE LH
$25.15
W0114532 BRACKET HINGE RH
$27.50
W0114543 TRAY BAKING
W0114545 PAN DRIP 466X385X39
W0114555 RACK GRILL INSERT
W0134350 NUT, HEATING ELEMENT, UPPER,M4
$5.50
W0134356 BOARD INTERFACE USER UNPROG
W0134398 RUNNER TELESCOPIC PKT 6

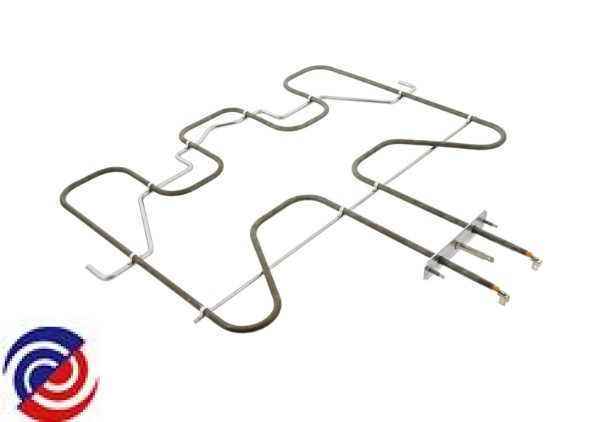

W0134419 ELEMENT GRILL
$116.00
W0134455 RACK GRILL INSERT WIRE
W0134487 BLOCK TERMINAL CONNECTION
$31.00
W0275341 KNOB
$25.05
