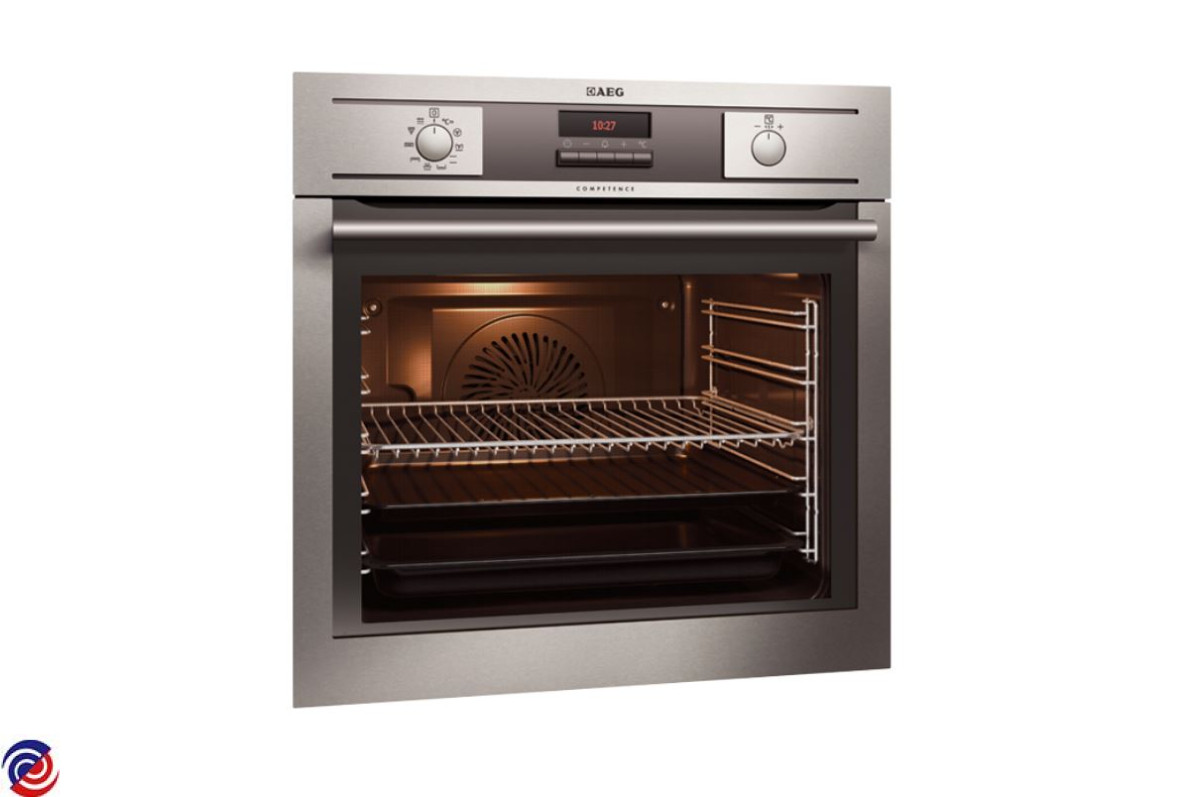

BP5013001M — 944185807 03
AEG — Cooker Electric

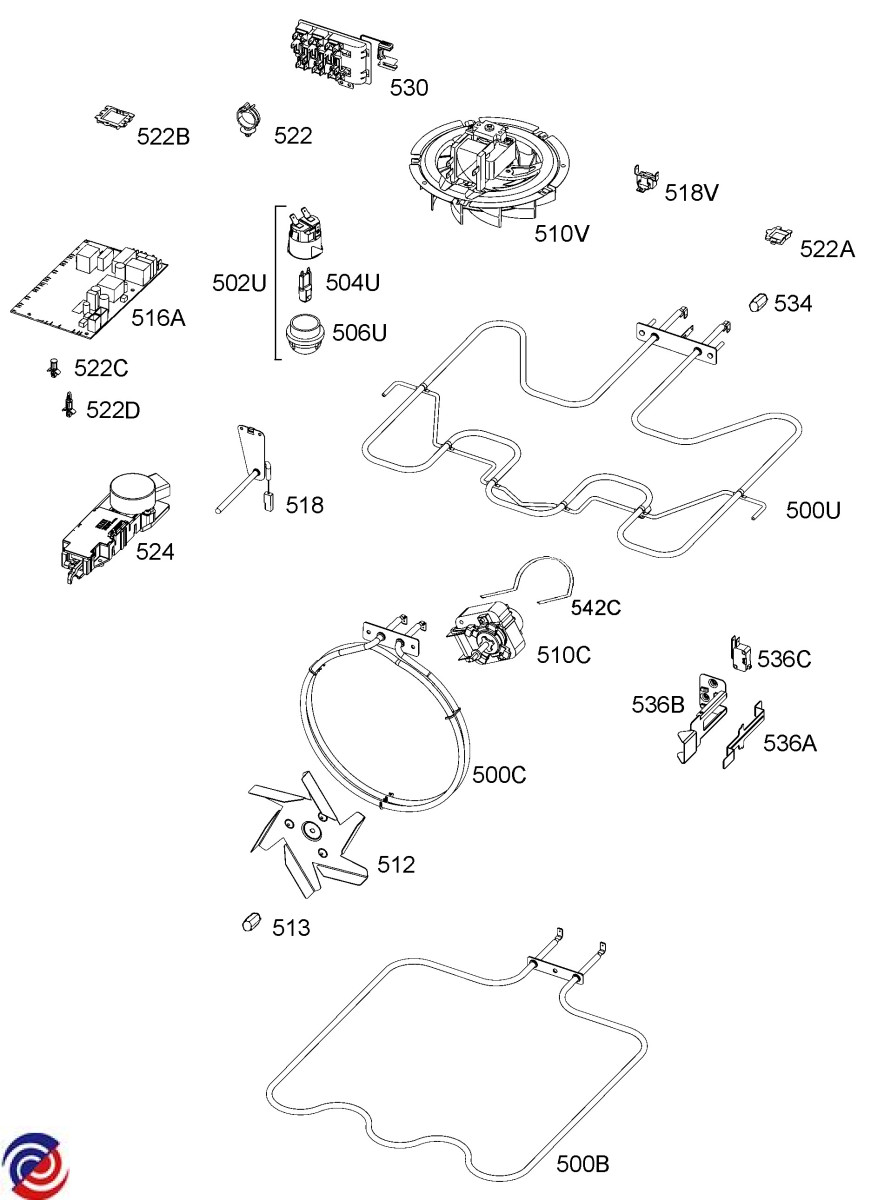

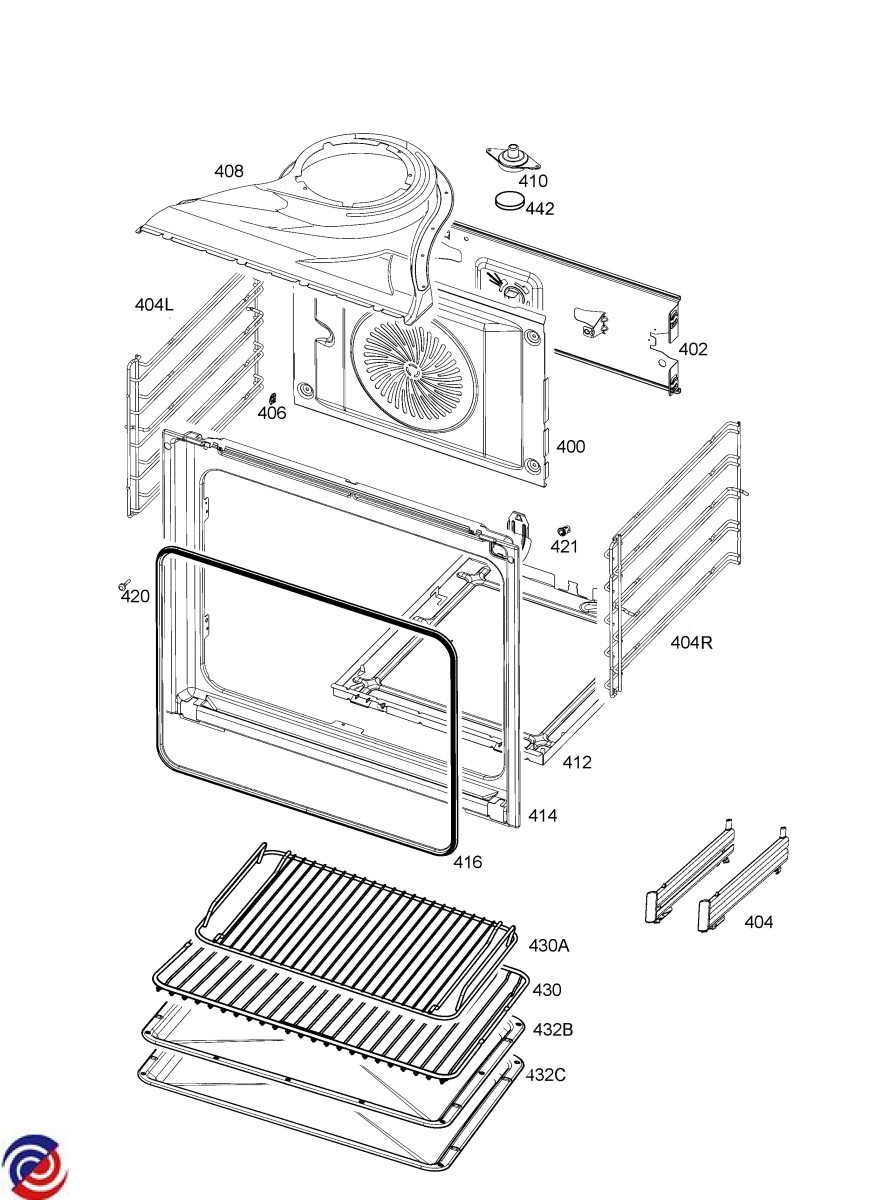

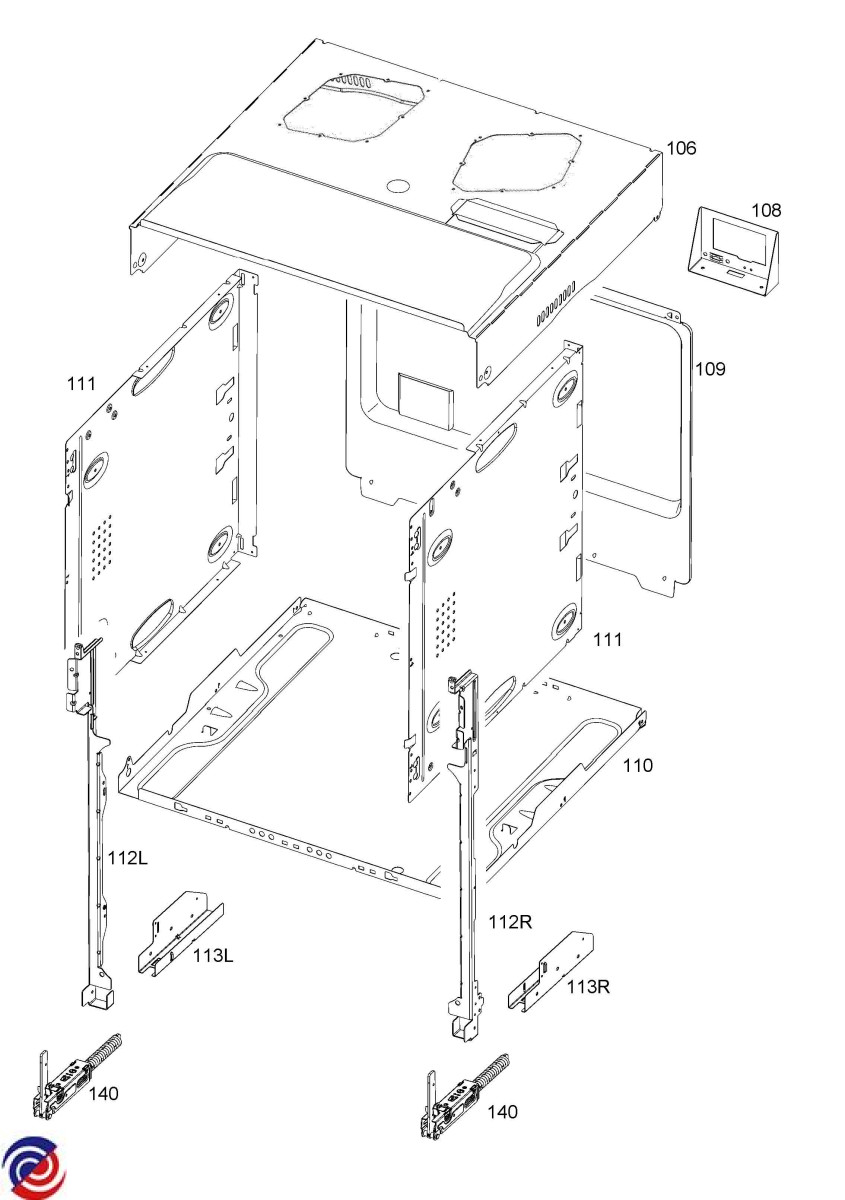

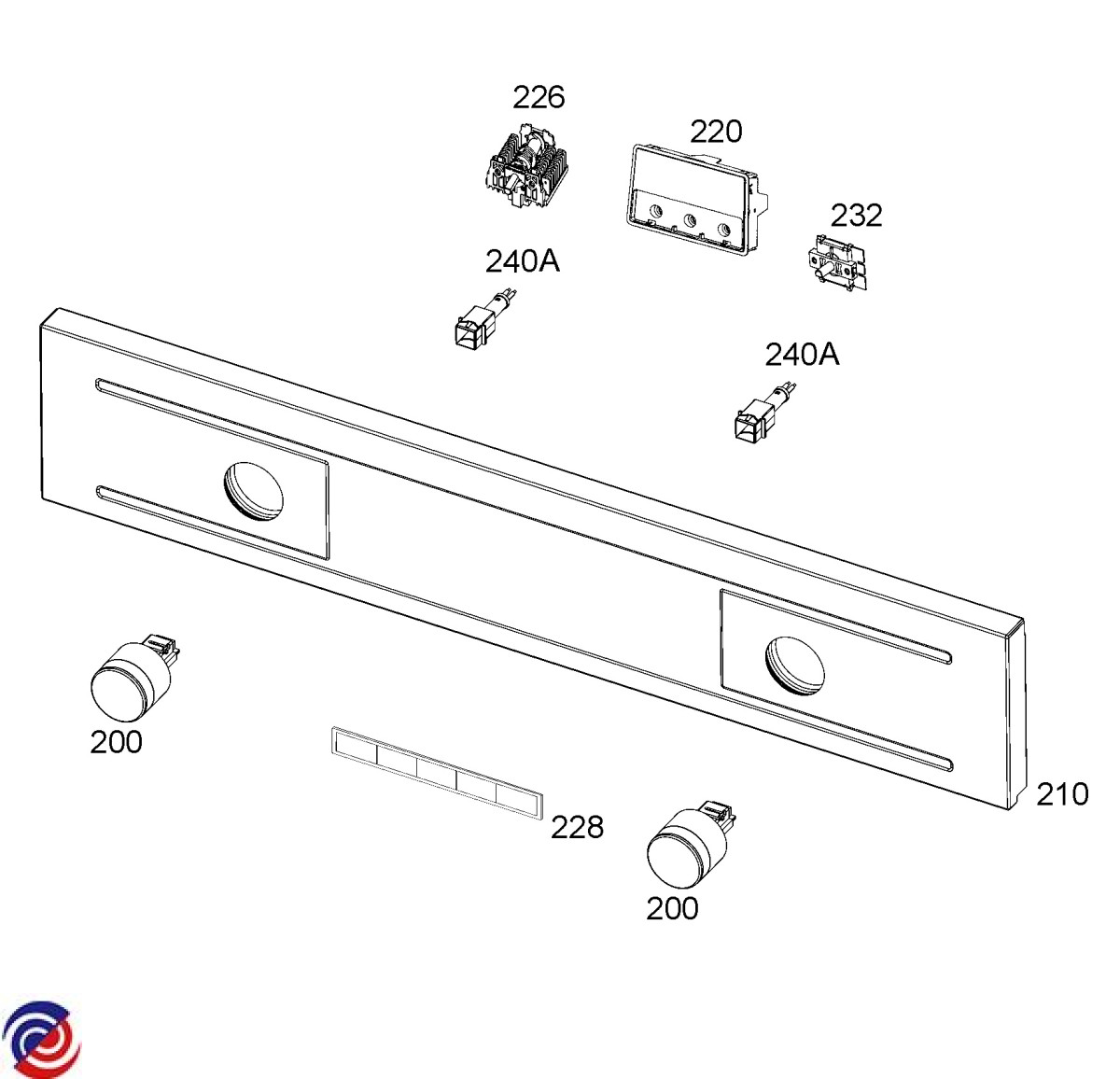

Parts for BP5013001M
W0023062 SELECTOR SWITCH, FUNCTION,0-10
$72.00
W0023141 DOOR OVEN INNER GLASS
$126.00
W0023142 COVER TOP DOOR BLK
W0023163 FRONT FRAME, PYRO BP5013001M
$125.30
W0026321 GASKET OVEN DOOR BLK 503 X 371
$54.60
.png)
W0026359 DOOR OVEN OUTER GLASS BLK
W0026370 PANEL CONTROL
$215.00
W0026402 CONVECTION MICRO-MOTOR, 240V
W0026424 SIGNAL LAMP, SET, COMPLETE, 2W
$29.00
W0026427 ADAPTOR DOOR HANDLE BLK
$39.00
W0026428 DOOR HANDLE ROUND INOX
$50.00
W0026431 SPRING DAMPER MOTOR
$12.55
W0026435 OVEN WIRE SHELF CLIP
$5.50
W0114506 DOOR OVEN INNER GLASS
$120.00
W0114533 ELEMENT FAN 2400W
W0114560 LAMP OVEN ASSY 40W HALOGEN
W0114583 HEATING ELEMENT, BOTTOM, 1000W
W0134447 RACK SIDE OVEN RIGHT
$45.90
W0134448 RACK SIDE OVEN LEFT
$40.00
W0134481 SENSOR PT500
$44.00
W0022369 THERMOSTAT RED BLK 145.C
W0022384 LOCK WASHER
$23.10
W0022502 CATALYST
$60.00
W0023125 SIDE PANEL, LEFT-RIGHT
$49.50
W0023126 PANEL BASE
$41.80
W0023127 PANEL OVEN REAR
$49.50
W0023151 COVER CONVECTION FAN
$43.90
W0023155 FAN WHEEL CONVECTION FAN
W0023181 SUPPORT, HINGE, LEFT
$29.50
W0023182 SUPPORT, HINGE, RIGHT
$29.50
W0023183 CHANNEL AIR UPPER
$72.55
W0023186 SUPPORT CONNECTION BOX
$9.90
W0023191 FLANGE, STEAM, TUBE
$12.95
W0023207 TOP COVER
$66.00
W0023209 CLAMP CABLE 15x 16mm
$4.00
W0023210 CLAMP CABLE 22 x 23mm
$4.00
W0023211 CLAMP CABLE 22 MM
$4.50
W0023212 SHIELD, BOTTOM, HEATER, STEAM
$44.00
W0023912 SCREW DOOR HAND M4 X 50 PKT 5
$12.00
W0024074 KIT SCREW PKT 4
$23.00
W0026334 NUT CONVECTION FAN M6L
$7.00
W0026340 BUTTON PUSH ASSY
$16.00
W0026346 HOLDER SWITCH
$14.30
W0026352 HARNESS POWERBOARD DOOR SWITCH
W0026379 HARNESS POWER BOARD SIDEKICK
$26.85
W0026382 HARNESS INPUT PCB XI01<->BOT/B
$47.45
W0026423 HARNESS USER INTERFACE BOARD X
$184.00
W0026538 CARRIER STRUT BACK
W0026547 KNOB RETRACTABLE HANDLE INOX
$27.80
W0104890 MICROSWITCH 0 5MA/5VDC
$57.15
W0105056 RUBBER DOOR STOPPER
W0105621 CLIP.FIXING.ELECTRONIC.I=22.9M
W0105622 CLIP FIXING ELECTRONIC1=12 7MM
$4.50
W0109994 SWITCH ROTARY SELECTOR +/-
$30.80
W0114252 LOCK DOOR
W0114281 CLAMP CABLE
$15.40
W0114341 SPACER FRONT FRAME
W0114396 LAMP 40W 230V HALOGEN GLOBE G9
W0114510 POWER BOARD CONFIGURED OVC3000
W0114531 BRACKET HINGE LH
$25.15
W0114532 BRACKET HINGE RH
$27.50
W0114538 HINGE DOOR LH/RH
$49.50
W0114543 TRAY BAKING
W0114545 PAN DRIP 466X385X39
W0114555 RACK GRILL INSERT
W0114561 GLASS, OVEN LAMP, HALOGEN
$12.00
W0114582 BLOCK TERMINAL CONNECTION
$26.40
W0134350 NUT, HEATING ELEMENT, UPPER,M4
$5.50
W0134381 LEVER SWITCH
$27.50
W0134398 RUNNER TELESCOPIC PKT 6
W0134419 ELEMENT GRILL
$116.00
W0134455 RACK GRILL INSERT WIRE
W0134462 DOOR OVEN INNER GLASS BLK
$205.00
W0134490 FAN. COOLING
W0136760 BOARD USER INTERFACE ASSY CONF
W0153373 CONFIGURED ELECTRONIC USER INT
