BP5013001M — 944185807 02
AEG — Cooker Electric
Parts for BP5013001M
W0023062 SELECTOR SWITCH, FUNCTION,0-10
$72.00
W0023141 DOOR OVEN INNER GLASS
$126.00
W0023142 COVER TOP DOOR BLK
W0023150 ADAPTOR DOOR HANDLE BLK
$43.00
W0023163 FRONT FRAME, PYRO BP5013001M
$125.30
W0023214 HANDLE DOOR ROUND INOX
$81.00

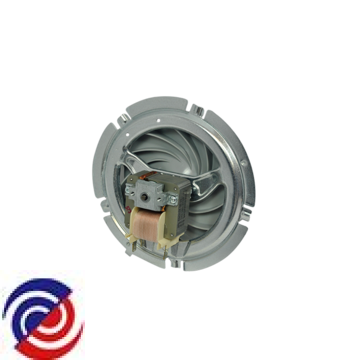

W0026319 MOTOR FAN COOLING COMPLETE
$176.00
W0026321 GASKET OVEN DOOR BLK 503 X 371
$54.60
.png)
W0026359 DOOR OVEN OUTER GLASS BLK
W0026370 PANEL CONTROL
$215.00
W0026402 CONVECTION MICRO-MOTOR, 240V
W0026424 SIGNAL LAMP, SET, COMPLETE, 2W
$29.00
W0114506 DOOR OVEN INNER GLASS
$120.00
W0114533 ELEMENT FAN 2400W
W0114560 LAMP OVEN ASSY 40W HALOGEN
W0114583 HEATING ELEMENT, BOTTOM, 1000W
W0022369 THERMOSTAT RED BLK 145.C
W0022405 FILTER CATALYST
$50.60
W0023125 SIDE PANEL, LEFT-RIGHT
$49.50
W0023126 PANEL BASE
$41.80
W0023127 PANEL OVEN REAR
$49.50
W0023151 COVER CONVECTION FAN
$43.90
W0023152 SUPPORT BRACE REAR
$27.50
W0023181 SUPPORT, HINGE, LEFT
$29.50
W0023182 SUPPORT, HINGE, RIGHT
$29.50
W0023183 CHANNEL AIR UPPER
$72.55
W0023185 SUPPORT, CONNECTION BOX
$9.90
W0023191 FLANGE, STEAM, TUBE
$12.95
W0023207 TOP COVER
$66.00
W0023209 CLAMP CABLE 15x 16mm
$4.00
W0023210 CLAMP CABLE 22 x 23mm
$4.00
W0023211 CLAMP CABLE 22 MM
$4.50
W0023212 SHIELD, BOTTOM, HEATER, STEAM
$44.00
W0026317 BLADE FAN
$58.00
W0026340 BUTTON PUSH ASSY
$16.00
W0026346 HOLDER SWITCH
$14.30
W0026365 KNOB RETRACTABLE INOX
$42.10
W0104889 SWITCH MICRO
$30.00
W0104934 NUT CAPPED OVEN FAN SHAFT
$44.00
W0105056 RUBBER DOOR STOPPER
W0105620 CLIP FIXING ELECTRONIC I=22
W0105622 CLIP FIXING ELECTRONIC1=12 7MM
$4.50
W0114252 LOCK DOOR
W0114273 SWITCH SELECTOR
$30.80
W0114315 CLIP ROSETTE
$4.95
W0114340 SPACER FRONT FRAME
W0114396 LAMP 40W 230V HALOGEN GLOBE G9
W0114527 RACK SHELF RIGHT
W0114528 RACK SHELF LEFT
W0114531 BRACKET HINGE LH
$25.15
W0114532 BRACKET HINGE RH
$27.50
W0114538 HINGE DOOR LH/RH
$49.50
W0114543 TRAY BAKING
W0114545 PAN DRIP 466X385X39
W0114555 RACK GRILL INSERT
W0114561 GLASS, OVEN LAMP, HALOGEN
$12.00
W0114581 SENSOR TEMPERATURE
W0114582 BLOCK TERMINAL CONNECTION
$26.40
W0134350 NUT, HEATING ELEMENT, UPPER,M4
$5.50
W0134381 LEVER SWITCH
$27.50
W0134395 INNER DOOR PANEL. BLACK
W0134419 ELEMENT GRILL
$116.00
W0134455 RACK GRILL INSERT WIRE
W0136758 BOARD POWER CONFIGURED OVC3000
W0136760 BOARD USER INTERFACE ASSY CONF
