T76280AC — 916096805 00
AEG — Clothes Dryer
Parts for T76280AC
W0016685 HOSE DRAIN KIT DRYER 2.5M
$46.50
W0016701 BUSH SUPPORT ROLLER
$7.35
W0016717 CAPAC 4UF 425V 2PIN MOT&FAN
$33.00
W0017372 FLUFF FILTER
$49.50
W0017380 HUMIDITY SENSOR
$35.05
W0017400 HOSE DRAIN
$17.80
W0017403 GASKET FILTER
$35.05
W0017408 SPRING, DOOR, PLINTH
$11.65
_1.png)
W0017421 DRUM, LIFTER
$14.95
W0017432 AEG ELECTROLUX DRYER HEATER 240V 1400 + 600W
$145.07
W0017433 MOTOR,230-240V,50HZ,167W
$460.00
W0017435 DOOR LOCK
$28.00
.png)
W0017445 MICROSWITCH, FLOAT
$29.00
W0017467 CONE
$21.10
W0017477 HINGE BUSHING
$7.35
W0023781 HANDLE DOOR WHITE
$31.55
W0028955 BOARD MAIN PROG EDR10621 LV
$270.00
W0074659 ROLLER CLAMPING ASSY
W0074876 CAPACITOR, MOTOR, DRUM 7UF
$30.00
W0074941 AEG DRYER CONDENSATION PUMP
$82.05
W0076579 AEG ELECTROLUX CONDENSOR DRYER DRUM ROLLER
$39.00
W0076582 GASKET DRUM BACK
$33.00
W0076610 GASKET FRONT, LARGE OPENING
$35.05
W0076617 DOOR SWITCH
$34.50

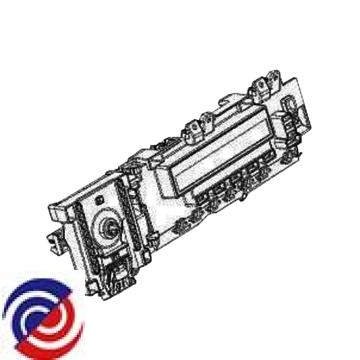

W0076628 USER INTERFACE BOARD.S7 P10
W0150019 LEG ADJUSTABLE
$18.90
W0273973 BELT DRIVE L=1971
$48.50
W0274382 TAPPET DOOR GW
$16.05
W0016608 SEAL TEMPERATURE SENSOR
$23.20
W0016656 BUFFER (MOTOR)
$8.00
W0016657 BUSH MAIN MOTOR
$8.10
W0016659 GASKET FRONT HEAT EXCHANGER
$33.00
W0017345 SIDE PANEL,WITH INSULATION
$170.05
W0017358 BASEMENT
$139.95
W0017360 PANEL ASSY REAR
$143.00
W0017366 REINFORCEMENT, TOP
$14.30
W0017369 REINFORCEMENT, MIDDLE,TOP
$27.50
W0017370 SUPPORT, TANK
$55.00
W0017371 TANK, UPPER
$48.05
W0017373 PLINTH, P10
$56.80
W0017374 OUTER DOOR, PLINTH
$107.95
W0017375 SUPPORT, INNER DOOR
$14.30
W0017376 SUPPORT,BUTTON, DOOR
$8.10
W0017377 COVER, HEATING ELEMENT
$58.05
W0017378 PROTECTION, HEATING ELEMENT
$25.05
W0017379 TANK. CONNECTOR
$22.90
W0017383 BELT DRIVE L=1791
W0017384 TUBE HOLDER
$14.30
W0017386 COVER, REAR PANEL, PLASTIC
$25.05
W0017387 COVER SCROLL FRONT
$13.95
W0017388 COVER SCROLL BACK
$16.50
W0017389 BRACKET FIXING MOTOR FRONT
$17.45
W0017390 IMPELLER, COOLING
$27.50
W0017391 BRACKET HARNESS
$27.50
W0017393 BRACKET FIXING MOTOR REAR
$14.85
W0017395 SUPPORT, PUMP
$14.30
W0017396 SUPPORT, WIRING, CONNECTOR
$27.50
W0017398 HOSE, PUMP,TANK, L=1130
$38.05
W0017399 SEALING,BASEMENT,AIR DUCT
$20.00
W0017401 SUPPORT, HUMIDITY SENSOR
$18.35
W0017404 COVER, PUMP, FLOAT
$11.95
W0017406 BUSH TANK
$9.00
W0017407 GASKET, DOOR, BASEMENT
$33.00
W0017411 FILTER, CONDENSER, REAR
$59.05
W0017412 COVER, PLATE, DOOR LOCK
$4.00
W0017413 DOOR, CONDENSER,BASEMENT
$29.70
W0017415 KNOB LOCK,DOOR,BASEMENT
$24.20
W0017417 FAN WHEEL, FRONT
$52.00
W0017429 COVER ELECTRONIC BOARD
$26.05
W0017434 CLAMP CABLE
$7.15
W0017438 DIFFUSER, LUMINOUS DIODE
$11.00
W0017439 SUPPORT, BUTTON SET,6+1
$33.00
W0017440 BUTTON WHITE ON/OFF
$14.50
W0017441 BUTTON PUSH ASSY 6 + 1
$14.50
W0017442 WORKTOP
$150.00
W0017450 HARNESS, BASE
$59.95
W0017463 COVER PLATE, BOTTOM
$59.40
W0017465 CONE, BASE
$29.00
W0017472 DOOR, FRAME
$53.00
W0017474 DOOR INNER GLASS
$185.00
W0017480 TAPPET DOOR
W0017539 STEAM CONDENSER, ASSEMBLY
$175.00
W0017803 DOOR INNER PLASTIC
$94.00
W0023730 BUTTON PUSH
$12.60
W0025696 BUSH KIT (MOTOR)
$15.50
W0072032 HINGE PIN EDI96150W
$6.60
W0074436 SENSOR EDI96150W
W0074658 WASHER
$4.00
W0074661 ROLLER CLAMPING
W0074889 CAPAC 7UF 425V 2PIN RUN.
W0074914 TENSION SPRING, MOTOR, ENV06
W0076595 DUCT. AIR. FRONT
W0076596 DUCT, AIR, FRONT
$133.45
W0076599 DRUM, COMPLETE
$197.65
W0076601 GASKET DRUM BACK
W0076603 OVERFLOW HOSE. L=1040
$22.90
W0076605 HOSE OVERFLOW , L=1040
$29.00
W0076606 HOSE. PUMP.TANK. L=1130
W0076607 GASKET FRONT
W0076609 GASKET FRONT. LARGE OPENING
W0076611 HANDLE, STEAM ASSY
$36.30
W0076616 DOOR SWITCH
W0076618 POWER CABLE, AUS, 2600MM
$70.00
W0076619 POWER CABLE, AUS, 2600MM
$54.00
W0076620 KNOB
$24.85
W0076622 KNOB. COVER. WHITE
W0076627 BOARD USER INTERFACE ASSY V7
W0076642 DIFFUSER, LUMINOUS DIODE,KNOB
$29.05
W0076647 HINGE DOOR
W0076648 HINGE. PORTHOLE. GLASS DOOR
W0076649 HINGE.PORTHOLE.REINFORCEMENT
W0076650 HINGE,PORTHOLE,REINFORCEMENT
$20.00
W0076651 RING LOCKING DOOR
W0076652 RING LOCKING DOOR
$14.90
W0076670 PANEL.FRONT P10.HP.SW
W0076674 CONTROL PANEL. PRINTED
W0076675 PANEL CONTROL HANDLE PRINTED
W0274378 TANK, CONNECTOR
$5.35
W0274379 IMPELLER, COOLING
$31.00
W0275128 DOOR, FRAME
$115.05
