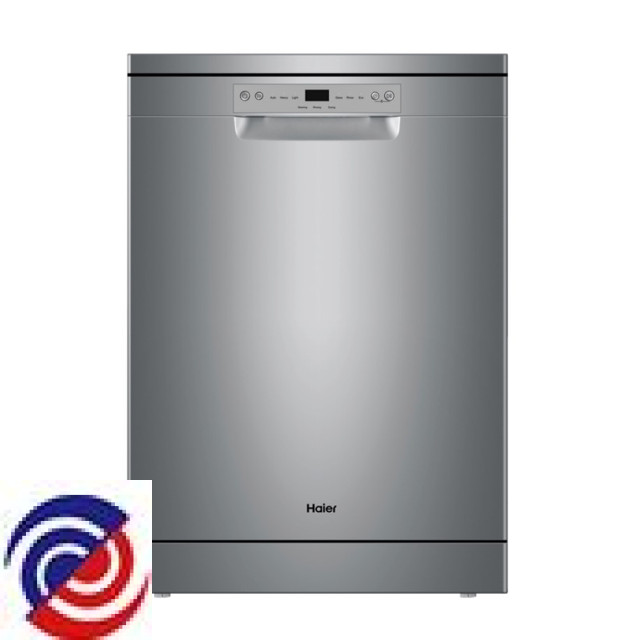

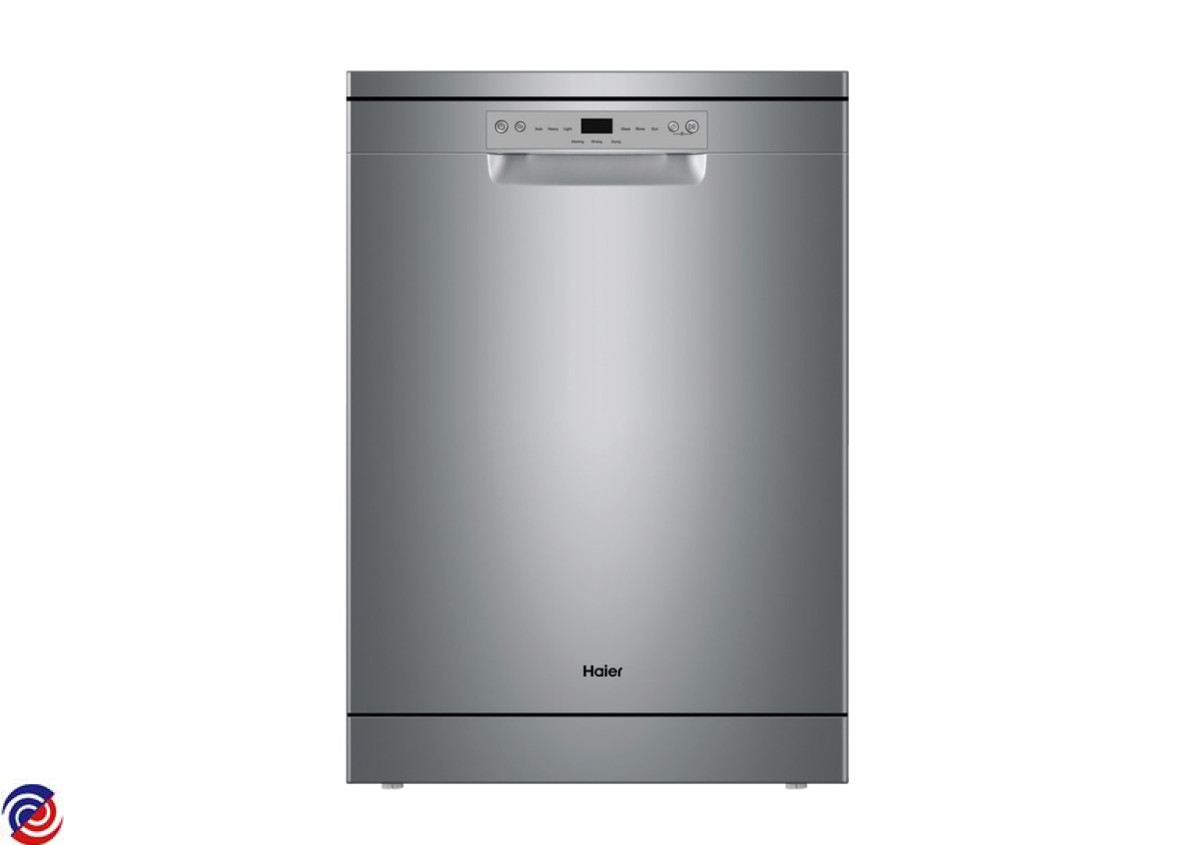

HDW13V1G1 — 62362-A
HAIER — Dishwasher

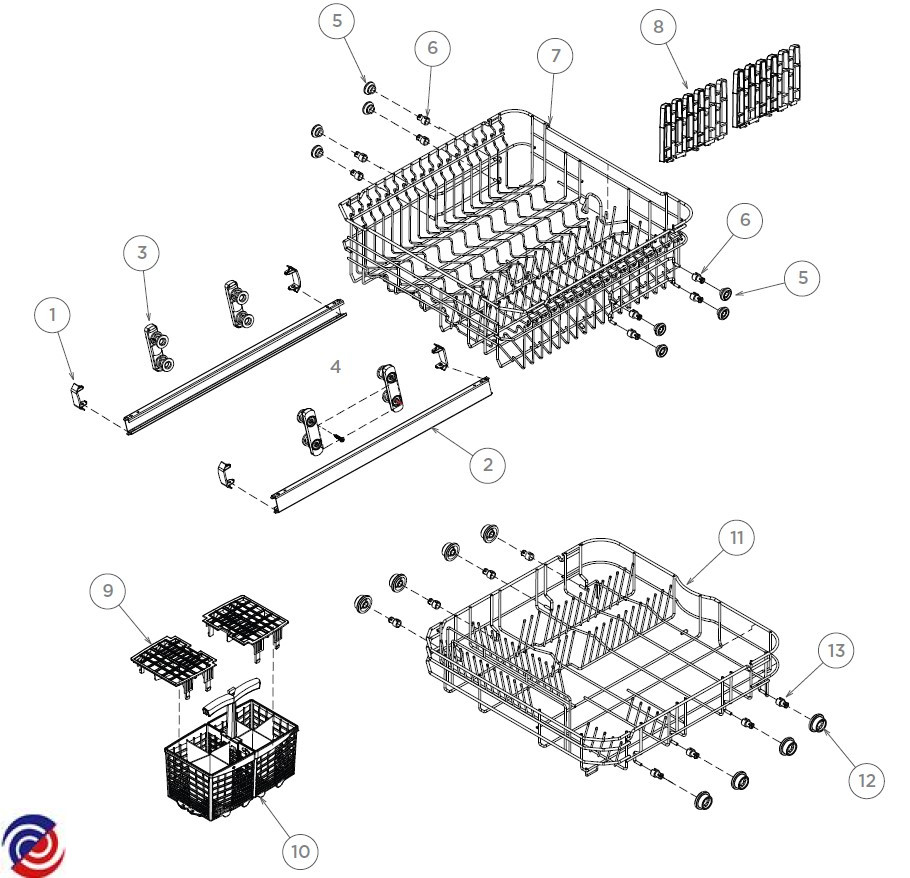

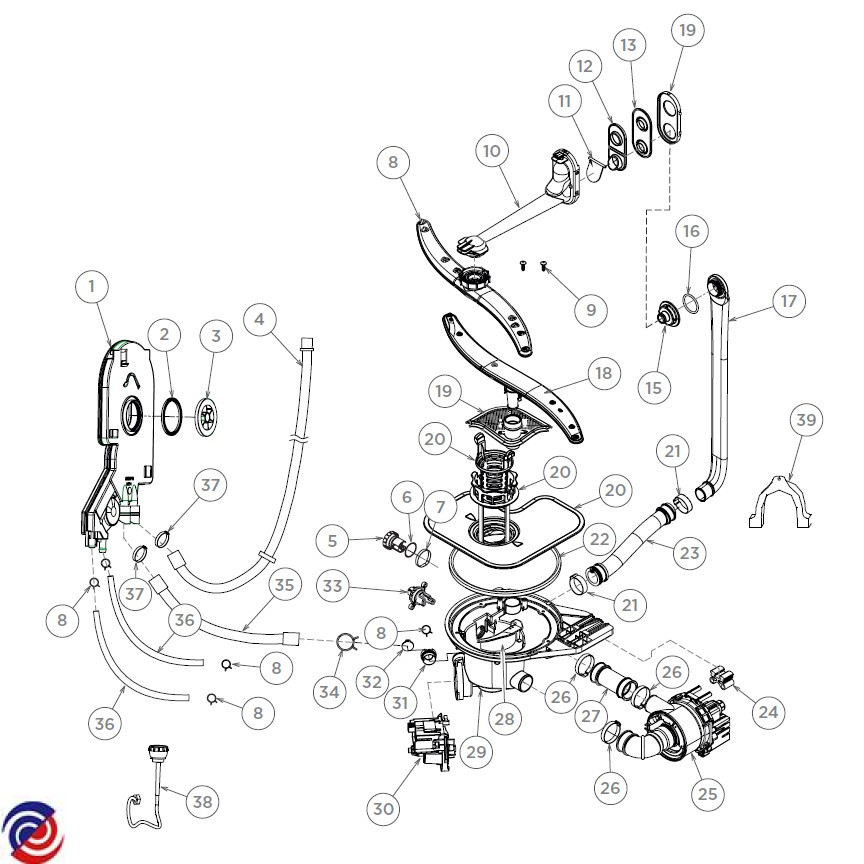

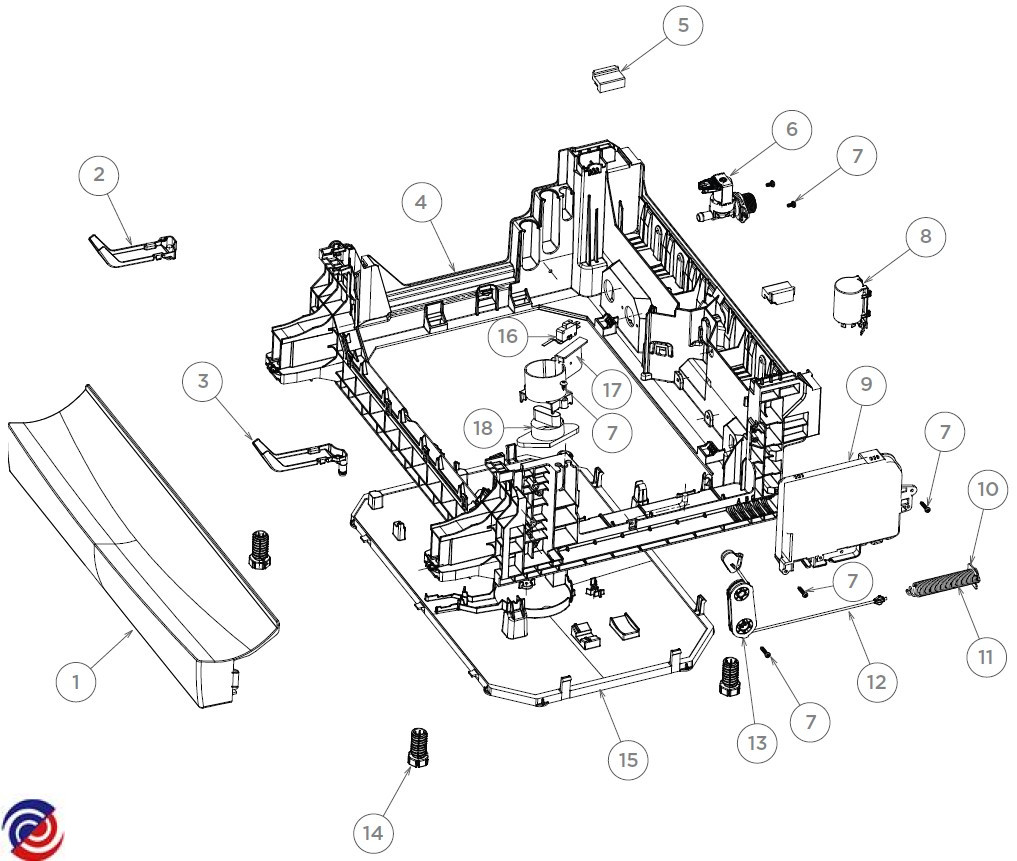

Parts for HDW13V1G1
W0186104 FISHER & PAYKEL DISHWASHER LOWER RACK WHEEL
$13.00
W0187243 FISHER & PAYKEL DISHWASHER UPPER BASKET WHEEL
$7.50
W0190000 HOSE DRAIN LONG
$65.00
W0191415 FISHER & PAYKEL/HAIER DISHWASHER CUTLERY BASKET-DW60 GREY
$30.00
W0192618 FISHER & PAYKEL/HAIER SECOND SPRAYER ASSEMBLY
$42.00
W0193115 FISHER & PAYKEL HAIER DISHWASHER DOOR UPPER TUB SEAL-DW60
$53.00
W0177161 AXLE STUB UPPER BASKET
$12.50
W0185381 AXEL STUB LOWER BASKET
$6.00
W0185920 FLAP NON RETURN VALVE
$4.50
W0185921 FRAME NON RETURN VALVE
$4.50
W0185922 PLUG
$4.50
W0185924 BLOCK SUPPORT
$4.50
W0185949 SCREW M5 10 SS
$4.50
W0185950 HOSE CLAMP
$8.00
W0185952 SCREW NST42 X 13
$4.50
W0185955 CLAMP DRAIN HOSE
$7.00
W0185958 SCREW ST5 20HB
$4.50
W0185960 BOLT
$4.50
W0186107 O RING GASKET
$4.50
W0186655 FLOAT FLOOD SWITCH
$4.50
W0187021 NUT BREATHER RING WEIR
$4.50
W0187375 BRACKET FLOAT SWITCH
$6.80
W0187378 VALVE FLAP UPPER SPRAYARM
$8.00
W0187773 SCREEN SUMP OUTLET
$8.70
W0187863 ENDCAP RAIL GREY
$15.25
W0187957 COVER FOR SUMP
W0188299 ORING GASKET WEIR
$13.90
W0188447 FISHER & PAYKEL HAIER DISHWASHER TOP FOLD DOWN RACK
$15.10
W0188912 HOSE
$20.00
W0188934 MOUNT RUBBER WASH PUMP
$16.20
W0189084 GUIDE DRAIN HOSE PKD
$17.60
W0189331 CLAMP HOSE 2032MM
$18.00
W0189604 HOSE DRAIN SHORT
$25.00
W0189998 COVER LOWER SPRAYER
$17.20
W0190006 CLAMP HOSE
W0190133 GRID CUTLERY BASKET
$22.20
W0190453 RAIL BASKET
$22.20
W0190552 HOSE DIVERTER OUTER DUCT
$23.80
W0190793 CLAMP HOSE 3250MM
$6.22
W0190825 GASKET INNER DOOR
$23.70
W0191001 RAIL SUPPORT ASSY
$25.80
W0191234 LOWER SPRAYER
$44.00
W0191261 GASKET SUMP
$22.60
W0191615 SEAL TUBE TOP SPRAYARM
$35.00
W0192397 HOSE INLET ASSY AA TW KR
$38.40
W0193662 SENSOR TEMPTURBIDITY EMZ
$48.70
W0194578 FILTER ASSY DW60
$62.70
W0194641 WEIR INCL FLOW METER
$66.00
W0194944 HOSE INLET LONG 2M PKD
$51.00
W0194948 PANEL LH SIDE SS
$64.90
W0195462 BASEBOARD SS
$89.75
W0195554 DRAIN PUMP
$72.50
W0195616 SUMP ASSEMBLY
$70.00
W0196741 PANEL RH SIDE SS
$101.50
W0198113 TOP ASSY SS
$147.70
W0198139 PANEL HINGE LOWER DOOR
$142.10
W0199045 WASH PUMP1PS HEATER ASSY
$295.23
W0281014 BASKET UPPER
$160.35
W0281015 BASKET LOWER
$102.00
W0281068 MICRO SWITCH FLOAT SWITCH
$19.90
W0294271 COVER TOP TRANSITION GREY
$4.50
W0294272 HOUSING FLAP VALVE
$4.50
W0295639 TRANSITION TOP GREY
$19.00
W0298634 DOOR OUTER PANEL SS
$99.85
W0298635 HINGE ASSY LEFT
$21.10
W0298636 HINGE ASSY RIGHT
$21.10
W0298637 HINGE SPRING
$15.40
W0298645 SUPPORT CROSSPIECE UPPER REAR
$17.60
W0298646 OUTER DUCT CONNECTION
$18.70
W0298647 BASE SECOND SPRAYER
$4.50
W0298648 DOOR SWITCH 1
$4.50
W0298649 DOOR SWITCH 2
$4.50
W0298657 ORING GASKET
$4.50
W0298659 VALVE INLET SPADE TERMINAL
$29.30
W0298661 POWER CORD
$34.10
W0298686 DOOR LOCKHOOK ASSEMBLY
$47.70
W0298689 PCB MAINBOARD
$89.50
W0298691 PCB MAINBOARD
$102.00
W0358736 CLIP SPRING
$4.50
W0358739 LOWER HANDLE
$9.20
W0358740 UPPER HANDLE
$17.60
W0358743 PLATE PLASTIC OVERFLOW LH
$4.50
W0358744 PLATE PLASTIC OVERFLOW RH
$4.50
W0358745 PULLEY
$4.50
W0358749 PAD VIBRATION
$9.80
W0358752 GASKET
$17.60
W0358755 SPRING CONNECTION ROPE
$15.20
W0358805 FRAME BOTTOM BASE
$76.60
W0368269 DISPENSER DETERGENT
$69.00
